Long operating time TAC 24V10Ah Electric Bike Battery Pack for Electric Scooter


Long operating time TAC 24V10Ah Electric Bike Battery Pack for Electric Scooter

Quick Detail:


Specification

.1(Capacity):10Ah
.2(Nominal output Voltage):26.6V
.3 (Max. output Voltage): 29.4V
4 (Min. output Voltage): 21V
.5 (Cell Over Discharge Protection Voltage): 2.70V±0.02V
6 (Cell Overcharge Protection Voltage): 4.25V±0.025V
.7 (Charging Voltage): 29.40V
8 (Charging Current): 2.0±0.2A
9 (Max.Discharge Current): 20A
.10 (Fuse): 30A
.11 (Operating Temperature):
        (Discharge Operating) : －20℃～45℃, (Charge Operating):  0℃～40℃
.12 (Weight): 2.90±0.1 Kg



Feature for Long operating time TAC 24V10Ah Electric Bike Battery Pack for Electric Scooter

1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time
6. Low self-discharge rate (less than 2% per year at 20°C).


Main Applications :

1. Electric bicycle

2. Electric Scooter

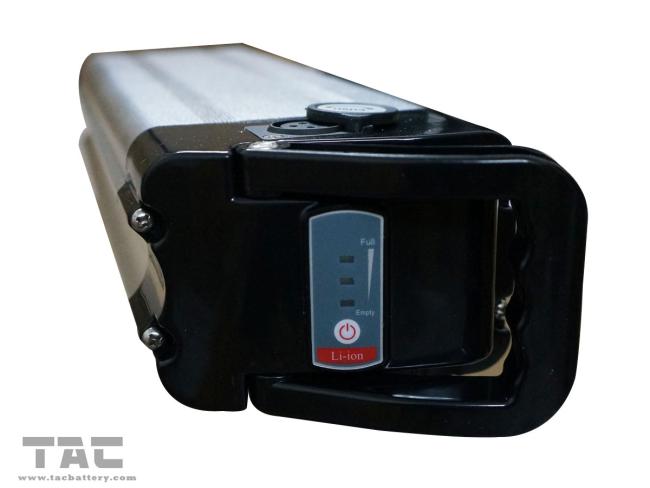

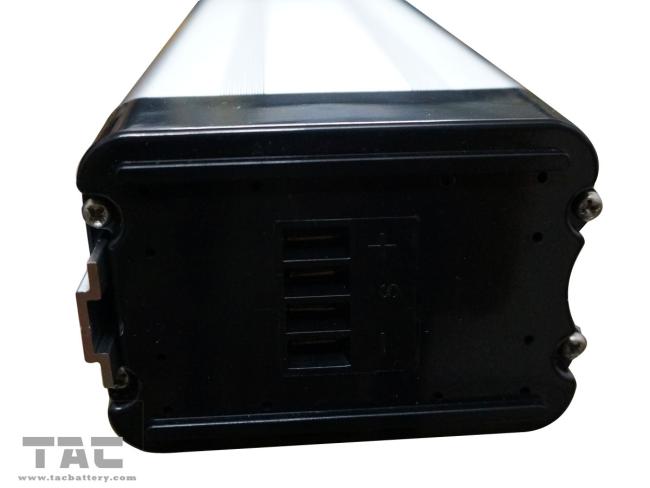

Picture &Drawing:

Long operating time TAC 24V10Ah Electric Bike Battery Pack for Electric Scooter


Available Model for theElectric Scooter Battery Pack:
 M36V 10AH Battery pack(whitebaitand rear carrier)


Cautions In Use

To ensure proper use of the battery please read the manual carefully before using it.
   . Handling

•  Do not expose to, dispose of the battery in fire.
• Do not put the battery in a charger or equipment with wrong terminals connected.
• Avoid shorting the battery
• Avoid excessive physical shock or vibration.
• Do not disassemble or deform the battery.
• Do not immerse in water.
• Do not use the battery mixed with other different make, type, or model batteries.
• Keep out of the reach of children.

     . Storage

• Store the battery in a cool, dry and well-ventilated area.

     . Disposal

• Regulations vary for different countries.
• Dispose of in accordance with local regulations.


Battery operation instruction

Discharging current

The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the over sized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.

Electric discharge temperature

The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.

Storing the Batteries

The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, the discharge capacity will decrease sharply.

Period of Warranty

   Normally one year

Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a long period of time without being used. In addition, if the various usage conditions such as discharge, ambient temperature, are not maintained within the specified ranges the life expectancy of the battery may be shortened or the device in which the battery is used may be damaged by electrolyte leakage. Please change the battery in time.
