3.6V Energizer Lithium Battery ER14250 1200mAh for Digital Control Machine
3.6V Energizer Lithium Battery ER14250 1200mAh for Digital Control Machine
Features for 3.6V Energizer Lithium Battery ER14250 1200mAh for Digital Control Machine
1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time
6. Low self-discharge rate (less than 2% per year at 20°C).
Specification for 3.6V Energizer Lithium battery ER14250 1200mAh for Digital control machine
|
No. |
Item |
General Parameter |
Remark |
|
1 |
Rated Capacity |
1200mAh |
Discharge to 2.0V 2mA (2mA2.0V) |
|
2 |
Nominal Voltage |
3.6V |
Mean Operation Voltage |
|
3 |
Voltage at end of Discharge |
2.0V |
Discharge Cut-off Voltage |
|
4 |
Max dimension |
φ14.5mm×H25.5mm |
|
|
5 |
Max weight |
10g |
|
|
4 |
Standard discharge |
Discharge to 2.0V 0.5mA |
|
|
5 |
Max constant discharge current |
35mA |
|
|
6 |
Max. pulse current |
100mA |
|
|
7 |
Ambient temperature range |
-55~ +85℃ |
|
|
8 |
Storage life |
≥10 year |
Yearly self-discharge ≤ 1% |
Main Applications :
3.6V Energizer Lithium battery ER14250 1200mAh for Digital control machine
1. Utility meter (water, electricity, gas meter,AMR)
2. Alarm or security equipment (smoke alarm system, detector)
3. GPS tracking
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics
9. Camera

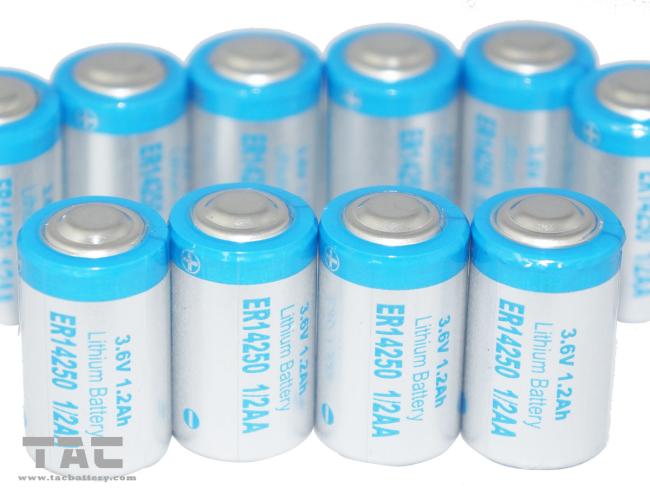

Picture &Drawing:
3.6V Energizer Lithium battery ER14250 1200mAh for Digital control machine

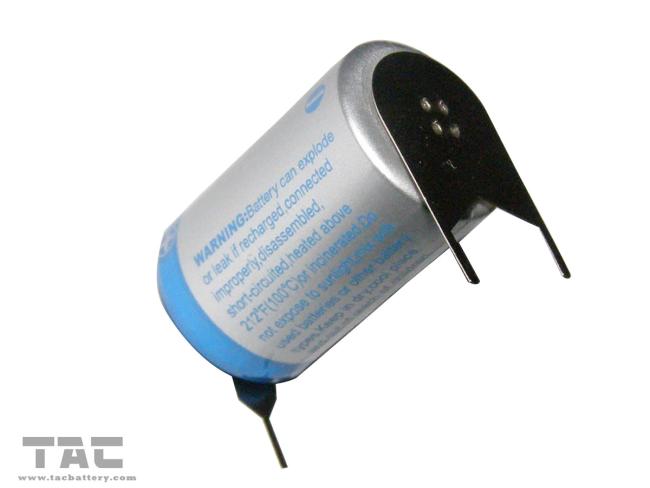

Battery Pack With Tag
3.6V Energizer Lithium battery ER14250 1200mAh for Digital control machine
We can weld the tabs or wire on the pole if you like
Packing Detail for 3.6V Energizer Lithium battery ER14250 1200mAh for Digital control machine
The battery put into customized sponge plastic tray avoid short circle.

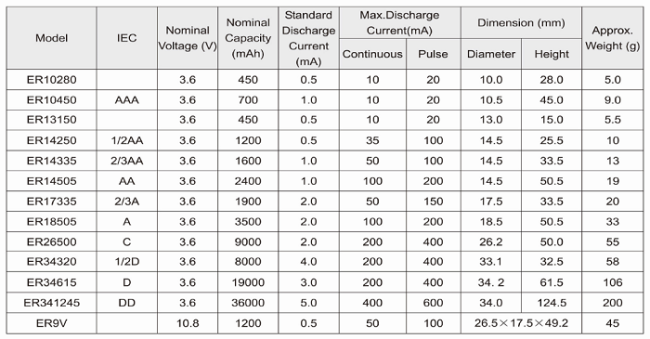

Available Model for the Cell:
- ER18505, ER14335, ER14505, ER34615 etc. Pls check below detail production list
![]()
WE CAN ALSO SUPPLY:
NIMH BATTERY(PACK / with tags / cables / connectors )
Li-ion Battery single cell and battery packs--cylindrical types & Polymer types (3.7V per cell)
LiFePO4 Battery single cell and battery packs -- cylindrical types & Polymer types (3.2V per cell)
Primary Lithium Battery CR ER LFB (3.0V LiMnO2 battery & 1.5V LiFeS2 battery)
Portabl power banks, power storage battery system, torches and lamps, etc.
