Energry Type 3.6V 14250 1200mAh LiSOCl2 Battery for Military Electronic Devices
Energry Type 3.6V 14250 1200mAh LiSOCl2 Battery for Military Electronic Devices
Description For Energry Type 3.6V 14250 1200mAh LiSOCl2 Battery for Military Electronic Devices
1. High cell voltage of 3.6V, small size and high power-to weight ratio
2. Able to instantaneously provide multiplied pulse or heavy current pulse.
3. Wide load range, wide temperature range of -55℃ to 85℃. Low internal resistance and stable discharge voltage.
4. Able to provide a continuous discharge of small current and heavy current pulse is also available, discharge time is 5 years or more; Excellent discharge performance, more than 90% capacity output under low or medium load.
Application:
1. Civil water meter, Gas meter, Kilowatt-hour meter, Smoke alarm, Bu-regular proof alarm, Intelligent instruments,
Life-guard device, Signal lamp, Professional radio electric tools.
2. Military electronic devices, Communication equipment, Portable transmitter-receiver, Night-vision instruments,
Collimator, GPS system for navigation, Underwater weapon, Sonobuoy missile and more.
Packing Method:
30PCS/layer, 240Pcs/Carton, weight:26.5KG Size:44*27*33cm
Specification:
No | Item | Data |
1 | Nominal voltage: | 3.6V |
2 | Nominal capacity: | 14250mAh(10mA / 2.0V) |
3 | Discharge end-voltage: | 2.0V |
4 | Operating voltage : | 3.2V(4.4Ω, in 5s) |
5 | Max constant discharge current: | 2000mA |
6 | Max. pulse current: | 3000mA |
7 | Ambient temperature range: | -55~ +85℃ |
8 | Storage life: | ≥10 year, Yearly self-discharge ≤ 1% |
Pictures:

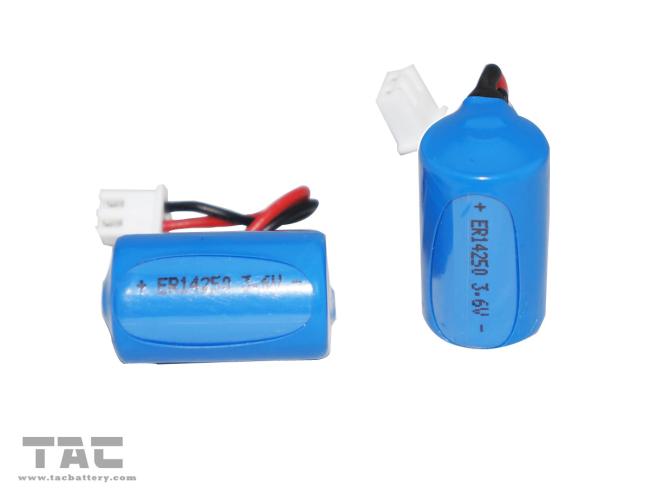

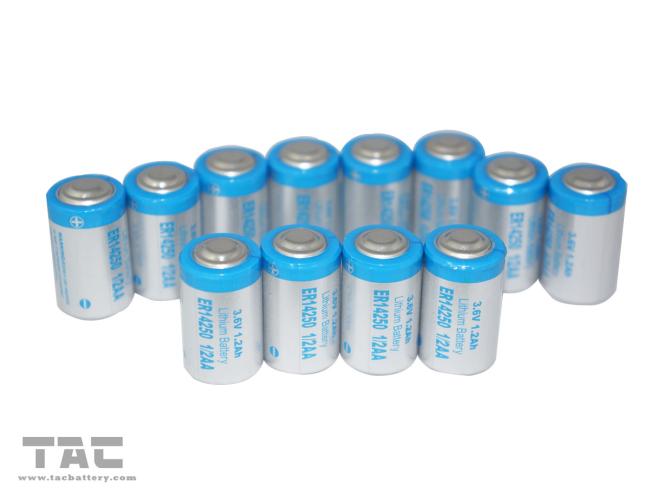

EnergyType 3.6V / 14250 LiSOCl2 Battery 1200mAh for Military Electronic Devices

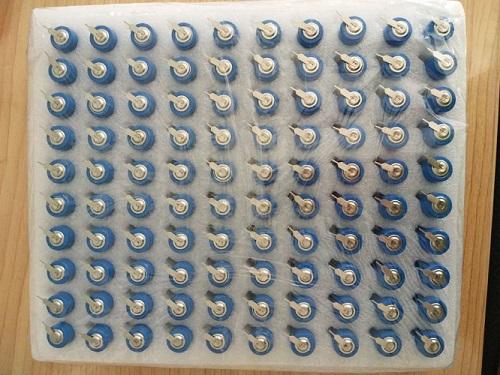

Battery Pack:
EnergyType 3.6V / 14250 LiSOCl2 Battery 1200mAh for Military Electronic Devices

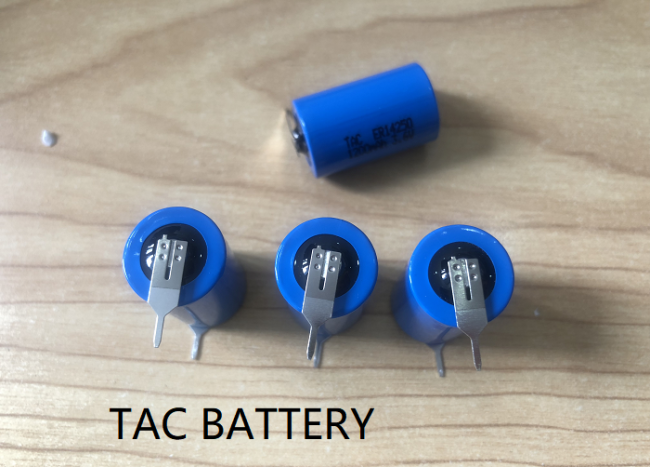

We can weld the tabs on the pole if you like
Storage
The batteries should be stored at 10℃～25℃(never exceed 30℃), 45%~75%RH.
－The batteries should not be stored next to heat sources nor in direct sunlight. The storage area should be clean,cool,dry,ventilated and weatherproof.
－The height to which batteries may be stacked is clearly dependent on the strength of the packaging.
As a general rule,this height should not exceed 1.5m for cardboard packages nor 3m for wooden cases.
－Store and display batteries in their original package. The batteries may be short-circuited or damaged if been unpacked and stacked mussily.
