12V AA 1700mAh High Temperature Nickel Metal Hydride Rechargeable Batteries
12V AA 1700mAh High Temperature Nickel Metal Hydride Rechargeable Batteries
Sepecification for 12V AA 1700mAh High Temperature Nickel Metal Hydride Rechargeable Batteries
| Test item | Condition | Specification | ||||
| 1. Charge | Standard | Charge at 0.1C for 16 hours | ||||
| Fast | Charge at 0.5C to -△V=50mV | |||||
| 2. Discharge | At 0.2C to 10.0V | |||||
| 3. Discharge cut-off voltage | 10.0V | |||||
|
4.Capacity (mAh) |
Minimum | Standard charge/discharge | 1650 | |||
| Typical | Standard charge/discharge | 1700 | ||||
| 5. Internal resistance | After fully charge,rest 1 hour, measured at 1000Hz | ≤0.6Ω | ||||
| 6. Self-Discharge | The charged battery is stored for 28 days at 20±5℃. And the discharge time is measured at standard discharge | ≥180minites | ||||
| 7. High temperature test | Store at 40℃,50℃,60℃ for 2 hours then charge/discharge | No leakage | ||||
| 8. Low temperature test | Store at 0℃ for 2 hours then charge/discharge | No leakage | ||||
| 9. Short circuit test | Short circuit after fully charge | No explode | ||||
| 10. Drop test | Free fall on the concerte from 1 meters after fully charged |
No leakage No short-circuit |
||||
| 11.Cycle life | Charge | Rest | Discharge |
Capacity retention ≥60% after 500cycles |
||
| 1 | 0.1C for 16h | 0 | 0.25C for 2h20min | |||
| 2~48 | 0.25C for 3h10min | 0 | 0.25C for 2h20min | |||
| 49 | 0.25C for 3h10min | 0 | 0.2C to 10.0V | |||
| 50 | 0.1C for 16h | 1~4h | 0.2C to 10.0V | |||
Main Applications :
1. Utility meter (water, electricity, gas meter,AMR)
2. Alarm or security equipment (smoke alarm system, detector)
3. GPS tracking
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics
9. Camera

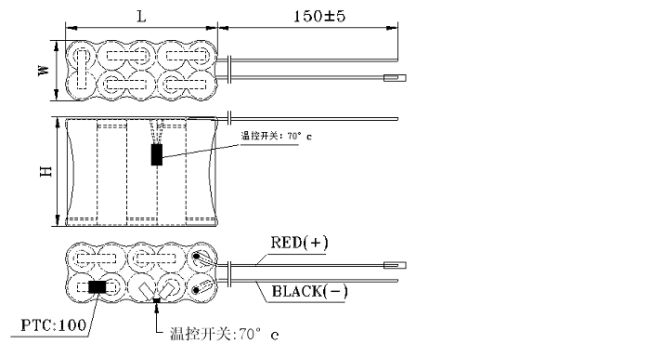

Picture &Drawing:
Battery operation instruction
Discharging current
The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the over sized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.
Electric discharge temperature
The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.
Storing the Batteries
The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, the discharge capacity will decrease sharply.
Period of Warranty
Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a long period of time without being used. In addition, if the various usage conditions such as discharge, ambient temperature, are not maintained within the specified ranges the life expectancy of the battery may be shortened or the device in which the battery is used may be damaged by electrolyte leakage. Please change the battery in time.

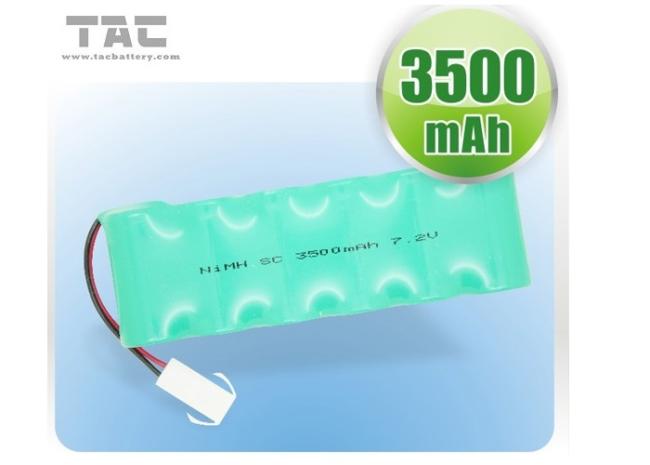

The similar battery pack photo
New Porformance for Ready to Use nimh battery
Charging once, standby for two years: After the battery is charged for half a year, the power is retained for more than 90%. After a year of holding, the power reserve can be more than 85%. After two years of suspension, it will remain above 80%, eliminating the need for ordinary nickel-hydrogen charging. The battery has no trouble for a long time, really charge once, spare for two years!

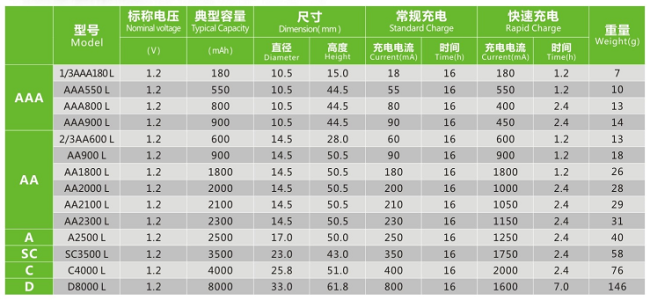

Ready to use Nimh Battery production list
