Li-ion battery A123A IFR26650 3.2V 2300mAh LiFePO4 Battery for Power Tool
Li-ion battery A123A IFR26650 3.2V 2300mAh LiFePO4 Battery for Power Tool
Features:
1. Max discharge current can reach 20C.
2. The single cell can do the battery pack or solder the tabs
3. Model:IFR25560 3.2V 2300mAh
4. Excellent abuse tolerance and environmentally friendly
5. Excellent calendar life, 10X cycle life vs. conventional lithium ion
6. With greater power and energy density and lower impedance.
7. Suitable for a wide variety of applications and system designs.
8. Proven performance in the toughest conditions, combining durability, reliability, and safety
9. Offers an excellent combination of price-performance.
Application for Li-ion battery A123A IFR26650 3.2V 2300mAh LiFePO4 Battery for Power Tool
- Portable high power devices
- Solar Product
- Stationary battery backup systems
- Grid stabilization energy storage systems
- Commercial truck and bus hybrid electric vehicles (HEVs)
Specification for Li-ion battery A123A IFR26650 3.2V 2300mAh LiFePO4 battery for Power Tool
| No. | Items | Specifications |
Remark
|
|
| 1 |
Nominal Capacity
|
2100mAh |
0.2C Standard discharge
|
|
| 2 |
Minimum Capacity
|
2050mAh | ||
| 3 |
Nominal Voltage
|
3.2V |
Mean Operation Voltage
|
|
| 4 |
Delivery voltage
|
3.2~3.3V |
Within 10 days from Factory
|
|
| 5 |
Charge Voltage
|
3.65V±0.03V |
By standard charge method
|
|
| 6 |
Standard charging method
|
0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C |
|
|
| 7 |
Charge current
|
0.2C | 420mA |
Standard charge, charge time about 6h(Ref)
|
| 0.5C | 1050mA |
Rapid Charge, charge time about: 3h(Ref)
|
||
| 8 |
Standard discharging method
|
0.2C constant current discharge to2.0V, | ||
| 9 |
Cell Internal Impedance
|
≤50mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
|
|
Cylindrical LiFePO4 Battery Power Type
|
Model |
Nominal |
Internal |
Capacity |
Cell Size(mm) |
Weight |
|
|
Voltage |
Resistance |
(mAh) |
(g) |
|||
|
(V) |
(Max mΩ) |
|
Diameter |
Height |
|
|
|
LFR18650P |
3.2 |
20 |
1100 |
18 |
65.3 |
40 |
|
LFR26650P |
3.2 |
20 |
2300 |
26 |
65.3 |
82 |
Cylindrical LiFePO4 Battery Energy Type:
|
Model |
Nominal |
Internal |
Capacity |
Cell Size(mm) |
Weight |
|
|
Voltage |
Resistance |
(mAh) |
(g) |
|||
|
(V) |
(Max mΩ) |
|
Diameter |
Height |
|
|
|
LFR14430 |
3.2 |
110 |
250 |
13.9 |
43.0 |
12 |
|
LFR14500 |
3.2 |
100 |
650 |
13.9 |
50.2 |
18 |
|
LFR15270 |
3.2 |
140 |
200 |
15.0 |
27.0 |
10 |
|
LFR18500 |
3.2 |
80 |
1000 |
18 |
50 |
32 |
|
LFR18500 |
3.2 |
80 |
1200 |
18 |
50 |
32 |
|
LFR18650 |
3.2 |
65 |
1400 |
18 |
64.8 |
39 |
|
LFR18650 |
3.2 |
65 |
1500 |
18 |
64.8 |
40 |
|
LFR18650 |
3.2 |
80 |
1700 |
18 |
64.8 |
41 |
|
LFR26650 |
3.2 |
20 |
3000 |
26 |
65.3 |
84 |
|
LFR26650 |
3.2 |
20 |
3300 |
26 |
65.3 |
86 |
Pictures:

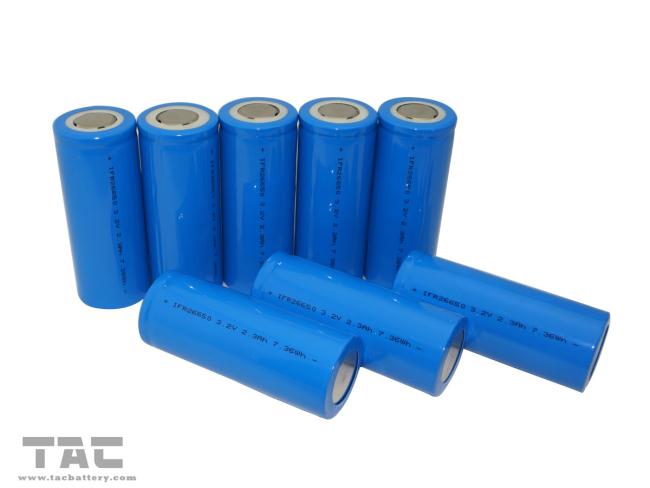

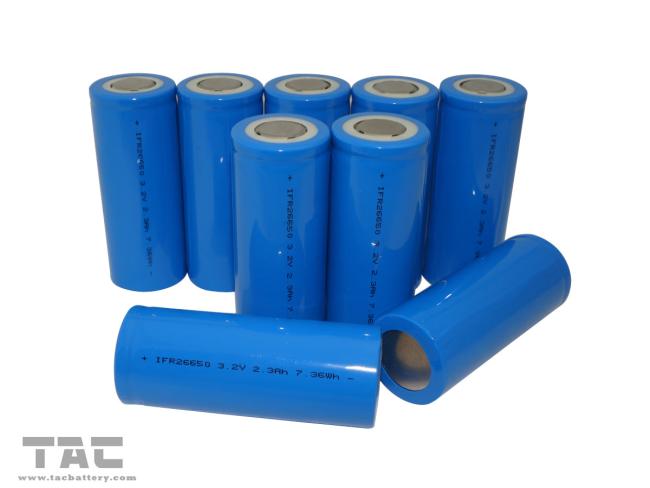

Li-ion battery A123A IFR26650 3.2V 2300mAh LiFePO4 battery for Power Tool
The Single cell can be assembled to various big capacity and voltage battery pack
