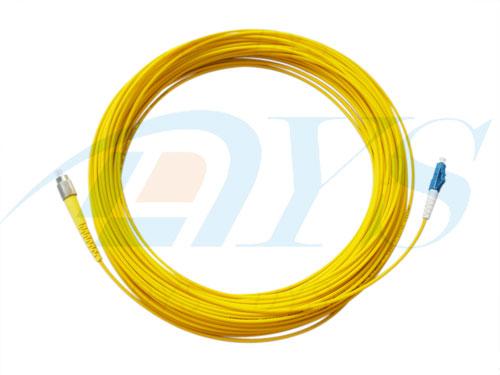

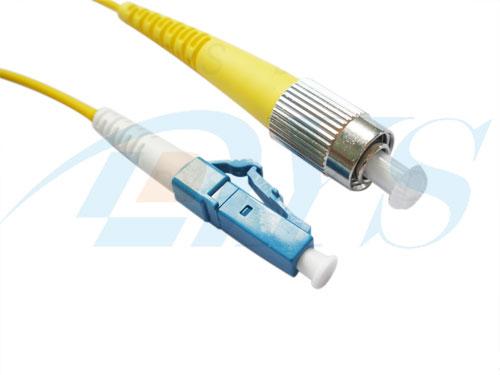

9/125 Simplex FC to LC Fiber Optical Jumper For 802.3u / 802.3z
9/125 Simplex FC to LC Fiber Optical Jumper For 802.3u / 802.3z
Quick Detail:
Model Number: SM E2000/APC
Brand Name: DYS/OEM
Fiber type: Singlemode9/125
Inserion Loss: <0.3db
Return Loss: >45db
Color: Green
Features:
Used to connect patch panels and/or network devices that utilize FC or LC style connectors and require
Singlemode9/125 cabling
OFNR jacket complies with stringent building codes
Ceramic ferrules provide precise alignment
A/B Markers are included for each fiber which identify transmit and receive ports ensuring correct system
connectorization
Connectors utilize a PC polish
Applications:
802.3u
802.3z
100Base-FX
FTTX
Industrial Net
Specifications
|
Parameters |
Standard Fiber Cable Assemblies |
|
|
Fiber Type |
SM(G.652/G.657A) |
MM(OM1/OM2/OM3) |
|
Jacket Materials |
LSZH/OFNR/PVC |
|
|
Connector Type |
SC/LC/ST/LC/MU/MTRJ/MPO/E2000 |
|
|
Ferrule Materials |
Ceramic |
|
|
Testing Wavelengths |
1310±30/1550±30nm |
850±30/1300±30nm |
|
Insertion Losss(dB) |
≤ 0.3dB |
≤ 0.3dB |
|
Return Loss(dB) |
≥45dB(PC/UPC) |
≥35dB(PC/UPC) |
|
Exchangeability |
≤ 0.2dB |
|
|
Cable Assemblies |
Pigtail/Simplex/Duplex/Fan-out Patchcord |
|
|
Operating Temperature (° C) |
-10~ + 70 |
|
|
Storage Temperature (° C) |
-40 ~ +85 |
|
|
Package |
1unit/bag |
|
Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
Certificate of qualification
