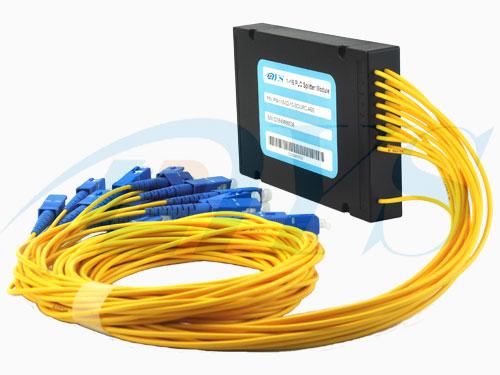

1*16 0.9mm Optical Fiber Splitter , 1260nm - 1650nm Splitter Module
1*16 0.9mm Optical Fiber Splitter , 1260nm - 1650nm Splitter Module
Quick Details:
Model Number: 1*16 PLC splitter module
operating wavelength: 1260~1650nm
package: ABS box
cable diameter: 0.9mm, 2.0mm, 3.0mm
fiber length: 1m, 1.5m or customized
connector type: SC, LC, FC, ST, etc
1X16 PLC fiber optic splitter
1) Low insertion loss,low PDL,high return loss
2) Uniform power splittimg
3) FTTX,LAN,PON,CATV
1X16 PLC fiber optic splitter
Features:
Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Wide Operating Wavelength and Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Applications:
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN) CATV
1×N PLC Splitter Specifications
|
Ports |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
|
Operating Wavelength (nm) |
1260~1650 |
||||||
|
Insertion Loss (dB) |
Max(P/S) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.8 |
20.5/21.0 |
|
Loss Uniformity (dB) |
Max |
0.6 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
|
PDL (dB) |
Max |
0.15 |
0.15 |
0.25 |
0.3 |
0.3 |
0.3 |
|
Return Loss (dB) |
Min |
UPC:50 APC:55 |
|||||
|
Directivity (dB) |
Min |
55 |
|||||
|
Standard Input Fiber |
Bend Insensitive SM Single Fiber(ITU G.657A) |
||||||
|
Standard Output Fiber |
Bend Insensitive SM Ribbon Fiber(ITU G.657A) |
||||||
|
Standard Output Color |
Blue,Orange,Green,Brown,Grey,White,Red,Black(TIA/EIA 598-B) |
||||||
|
Max.Optical Power(mw) |
300 |
||||||
|
Humidity Range(rh) |
5%~85% |
||||||
|
Operating Temperature(°C) |
-40~+85 |
||||||
|
Storage Temperature(°C) |
-40~+85 |
||||||
|
Connector Options |
FC/SC/LC/ST/MU/E2000 |
||||||
|
Packaging Options |
Bare Device*Mini Tube*ABS Module*LGX Box*19''/23'' Rack-mount |
||||||
|
*Telcordia GR-1221-CORE&G-1209-CORE Compliant. |
|||||||
Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
