MU / UPC 1-30dB Single Mode Fiber Optic Attenuator For Fiber to Home
MU / UPC 1- 30dB Single Mode Fiber Optic Attenuator For Fiber to Home
Quick Details:
Model Number:MU
Type:Singgle mode
Polishing:UPC
Attenuator:1-30dB
Operation Wavelength(nm):1310nm, 1550nm
Feature:
1. Optimized Ion Doped Fiber Technology
2. Stable environment performance
3. Easy to install
4. Superior spectral flatness
5. High return loss
6. Low insertion loss
Application
1. CATV Fiber Optic Sensor
2. Fiber to home
3. Telecommunication Networks
4. Local Area Networks(LANs)
5. Test Equipment
| Type number | -01 | -02 | -03 | -04 | -05 | ||
| Attenuation value | 1±0.5dB | 2±0.5dB | 3±1.0dB | 4±1.0dB | 5±1.0dB | ||
| Conditions | Light-source | LD | |||||
| Wavelength | 1310 and 1550 nm | ||||||
| Ambient temperature | 25 degrees C | ||||||
| Type number | -06 | -07 | -08 | -09 | -10 | ||
| Attenuation value | 6±1.0dB | 7±1.0dB | 8±1.0dB | 9±1.0dB | 10±1.0dB | ||
| Conditions | Light-source | LD | |||||
| Wavelength | 1310 and 1550 nm | ||||||
| Ambient temperature | 25 degrees C | ||||||
| Attenuation value | 11±1.1dB | 12±1.2dB | 13±1.3dB | 14±1.4dB | 15±1.5dB | ||
| Conditions | Light-source | LD | |||||
| Wavelength | 1310 and 1550 nm | ||||||
| Ambient temperature | 25 degrees C | ||||||
| Type number | -16 | -17 | -18 | -19 | -20 | ||
| Attenuation value | 16±1.6dB | 17±1.7dB | 18±1.8dB | 19±1.9dB | 20±2.0dB | ||
| Conditions | Light-source | LD | |||||
| Wavelength | 1310 and 1550 nm | ||||||
| Ambient temperature | 25 degrees C | ||||||
Operating conditions
| Item | Condition | |
| Wavelength | 1310 and 1550 nm | |
| Optical fiber | SM 9 /125 | |
| Operating temperature range | -25 to +70 degrees C without condensation | |
Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.

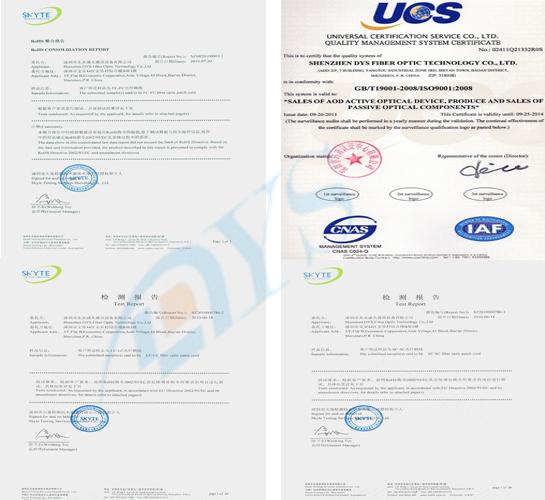

Certificate of qualification
