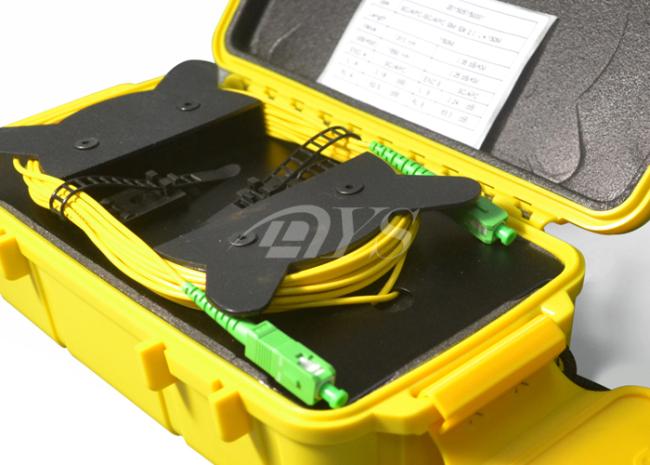

Black / Yellow OTDR Launch cable Fiber Optic Terminal box For CATV

Quick Details:

Model Number: SC/APC OTDR

Connector: SC/APC

Length: 1KM

Material: Plastic box

Specification:
1. Connector type: SC, LC, ST, FC, E2000. MPO etc
2. Length: from 100m to 4KM
3. Water resistant, crushproof and dust proof
4. Material: SR Polypropylene
5. Color: Black/Yellow
6. Operating temperature -40°C to +80°C
7. Type of fiber: corning SMF-28
8. Lead length: 1m-5m, outside diameter 2.0mm or 3.0mm
9. G652 type fiber.
10. Back Reflection(RL) < -55 DB
11. GR-326 Standard

(1) Apex offset: 0 - 50 um
(2) Radius of curvature 7 – 25 nm
(3) Fiber roughness: 0 – 25 nm
(4) Ferrule roughness: 0-50 nm

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
