Red Flange ST Optical Fiber Adapter For CAT High Back Reflection Loss Value

Quick Details:

Model Number: ST SM

Inserion Loss: <0.3db

Return Loss: >45db

Fiber type: Singlemode

Color: Red

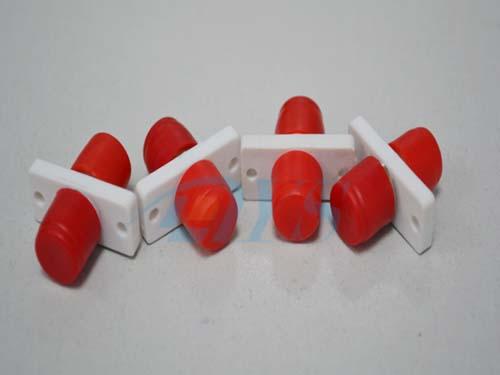

 ST Adapter Detail:

The ST connectors, available in both single mode and multi mode models, are specially designed for distribution applications and are fully compatible with existing ST type hardware. The connector was designed for small bend radius applications where space is limited.

High quality, pre-polished and pre-radiuses zirconia ceramic ferrules are combined with the latest engineering polymers and metals to produce the ST connectors. Pre-polished ferrules minimize the polishing times and provide consistent ferrule end-face geometry. When combined with the appropriate termination kits and method, the connectors produce superior results both in the factory and in the field.

The ST adapters feature precision, low attenuation coupling, using polymer alignment sleeves in metal housing.

Applilcation:

1•CAT

2•Telecom network

3•Optical test equipment

4•Local area networks

5•Wide area networks

6•Data processing Networks

Features

1•Low insertion loss value

2•High back reflection loss value

3•Stable capability and high reliability

4•Precis connector

5•Excellent mechanical capability

6•Boots in a variety of colors

Specifications

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.

Certificate of qualification

Our Team
