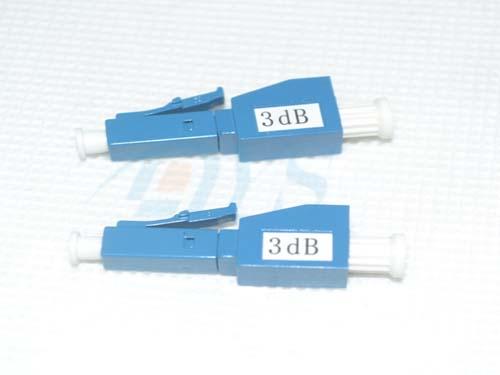

Singlemode LC 3dB Optical Attenuator Male to Female LC / UPC 1240nm - 1620nm
Singlemode LC 3dB Optical Attenuator Male to Female LC / UPC 1240nm - 1620nm
Quick Detail:
Name:LC/UPC
values:3-20dB
Brand Name: DYS/OEM
Delivery Detail:In 3 days
Singlemode Male to Female fiber optic LC/UPC attenuator
Our Fixed plug type Optical Attenuators and our Fixed In-Line Optical Attenuators are devices that convert optical power into heat using specialty Metal Ion Doped Optical Fibers allowing the optical power to be attenuated to a desired level.
Specifications:
|
Attenuation Value 1dB ~ 30dB |
|
|
Operating Wavelength 1240 ~ 1620nm (Dual 1310/1550nm) |
|
|
Premium |
|
|
Return Loss |
UPC >55dB |
|
APC >65dB |
|
|
Attenuation Accuracy |
1 ~ 7 dB ±0.5dB |
|
8 ~ 12 dB ±0.7dB |
|
|
13 ~ 17 dB ±1.0dB |
|
|
18 ~ 25 dB ±1.3dB |
|
|
Maximum Optical Input Power 1000mW |
|
|
Polarization Dependent Loss ≤0.1dB |
|
|
Operating Temperature Range -40 to 75 |
|
|
Storage Temperature Range -40 to 85 |
|
|
Humidity 95%RH |
|
Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; And good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
