SC LC fiber optic adapter optical fiber adapter fiber adapter & connectors
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
in 3 days
Brand:
DYS/OEM
Product Description

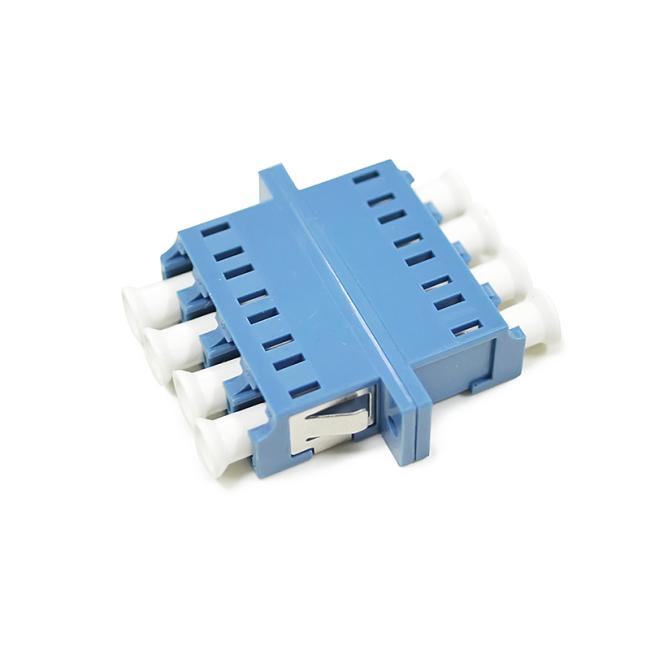

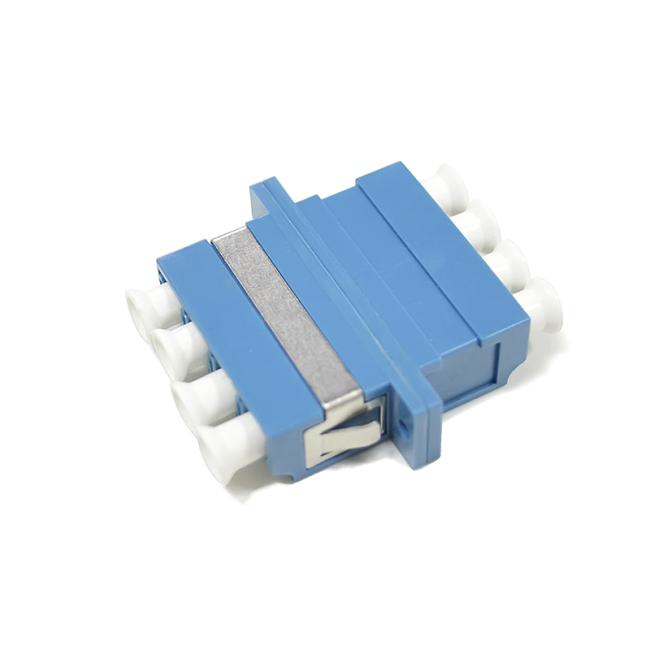

SC LC fiber optic adapter optical fiber adapter fiber adapter & connectors
Used for active connection between two optical fiber connectors, including ST, SC, FC, LC, SMA, ST-SC, ST-FC, ST-LC, etc. Among them, ST, SC, FC, LC, SMA and so on are the same kind of type connection (Mating sleeves) , ST-SC, ST-FC, ST-LC and so on are the different kinds of type connection(Hybrid adapter).ST, FC have D shape, rectangle, square, SC, LC have a single, double, four, can meet the needs of different applications.
| Parameter | Unit | LC, SC, FC, ST | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | °C | -40~75 | |||
| Storage Temperature | °C | -45~85 | |||
