NSN Outdoor Fiber Optic Drop Cable Assemblies IP67 Waterproof Protection Durable
NSN Outdoor Fiber Optic Cable Assemblies With IP67 Waterproof Protection
1.Feature:
1>FTTA , WiMax base station,CATV outdoor Application;
2>Optional Diameter:4.8mm,7.0mm or Customized;
3>Optional Jacket:LSZH,PE,PU.,Armoured or Non Armoured;
4>IP67 Waterproof protection;

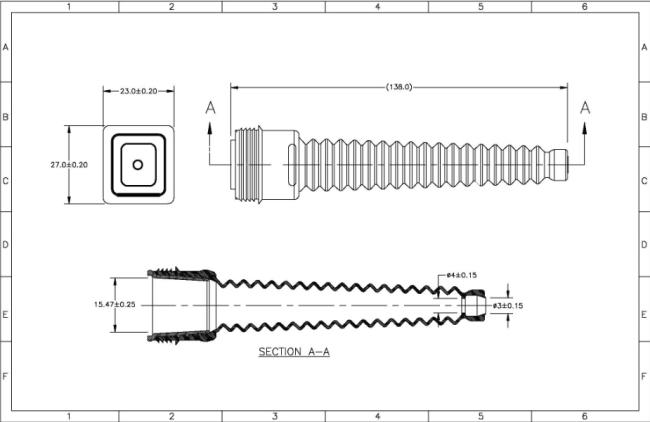

2. Drawing:
NSN Boot(for 7.0mm Cable) NSN Boot(For 4.8mm boot)
3. Assembly Performance:
|
Item |
Data |
|
Insertion Loss |
≤0.2dB |
|
Return Loss |
SM/UPC≥55dB,SM/APC≥65dB,MM≥35dB |
|
Mechanical life |
500cycles |
|
Working temperature |
-40°C~+70°C |
|
Storage temperature |
-40°C~+70°C |
|
Operating temperature |
-10°C~+50°C |
|
Protection Level |
IP67 |
|
Tensile Data |
Tensile between junction and fiber cable≥100N |
|
Authentication |
Meet with RoHS |
4. Cable Specification:
|
Item |
Data |
|
fiber |
OS2,OM1,OM2,OM3,OM4 |
|
Tension member |
Aramid Kevlar,Armoured Tube |
|
Max. attenuation |
SM:≤0.34dB/km at 1310nm,≤0.20dB/km at 1550nm MM:≤0.60dB/km at 1300nm,≤2.3dB/km at 850nm |
|
Tensile resistance(short term) |
500N(no breakage) |
|
Crush resistance(short term/long term) |
1000N/100mm |
|
inflaming retarding |
IEC 60332-3 |
|
Temperature |
-40~+70°C |
|
Uvioresistant |
PASS |
|
Authentication |
Meet with RoHS &UL |
