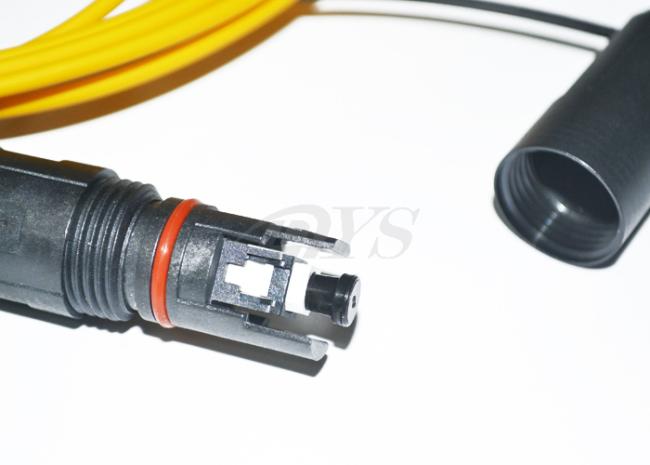

H Optic Connector OptiTap 1 Fiber Single-Tube Outdoor Jumper Fiber Optic Cable Assembly

H Optic Connector OptiTap 1 Fiber Single-Tube Outdoor Jumper

Quick Details:

• Place of Origin: Guangdong, China (Mainland)
• Brand Name: DYS
• Model Number: H Optic Connector (OptiTap)
• Certification: ISO9001:2008
• Color:black
• Material: LSZH, PVC
• Connector: SC

Features And Benefits

1. Smaller profile and reduced bend-radius
Designed for rapid connection to external flush-mounted bulkhead adapters on terminals or closures

2. Robust design keeps connector intact during installation
Integral pulling eye/connector cap designed for 100 lb maximum pulling tension

Temperature Range

Operation -40 °C to 70 °C (-40 °F to 158 °F )

Optical Specifications

Insertion loss, typical ≤ 0.3 dB

Reflectance, typical >-60 dB

The cable assembly with factory-terminated, environmentally sealed and hardened connectors to reduce the cost and the time of drop cable deployment in optical access networks. The OptiTap single-fiber cable assembly is specifically designed to significantly reduce required drop cable installation.

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
