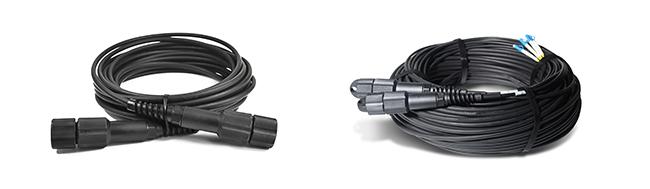

Outdoor Armoured Fiber Optic Cable Assemblies PDLC to LC Fiber Optic Patch cable for RRU BBU ZTE
APPLICATION
Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
Used for 3G 4G base station
FEATURES
The PDLC Waterproof Assembly is used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
1. Standard Duplex LC connector, well connected with standard LC adapter
2. Available Single mode and Multi-mode
3. IP67 protection, salt-mist proof, humidity proof, dust proof
4. Low insertion/return loss, steady optical transmitting.
5. Light weight, waterproof, dust-proof, moisture proof, Metal hard housing.
6.The material in the jumpel cable are all-weather and UV-resistant.
7.Mechanical performance: IEC 61754-20 standard.
8.RoHS and REACH materials compliant.
PRODUCT PARAMETERS
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
