1:4 PLCOptical Fiber Splitter MicroType/ Stainless Steel Tube, With SC/APC Connector
1:4 PLCOptical Fiber Splitter MicroType/ Stainless Steel Tube, With SC/APC Connector
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: DYS/OEM
- Model Number: 1:4
- Length: Customize
- Connector: FC, SC, LC, ST
- Ferrule Polish: APC,UPC,PC
- Splitting Ratio: 1*2, 1*8, 1*16, 1*32, 2*16, 2*32, 2*64...
- Loose Tube Diameter: 0.9mm, 2.0mm, 3.0mm
- Operating temperature: -40℃ - 85℃
- Certifaction: ISO9001, ROHS
PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. DYSFO’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
Features
1. Low Insertion Loss
2. Telcordia GR-1209 and GR-1221 Compliance
3. Wide Operation Wavelength
4. Wide Operation Temperature
5. High Stability and Reliability
6. Low Polarization Dependent Loss
7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)
Applications
1. FTTX networks
2. CATV links
3. PON networks
4. Data Communication
Types:
1. Basic type PLC splitter
2. SFF type PLC splitter
3. Cassette type PLC splitter Module
4. 900um Fan-out Type PLC Splitter
5. Rack type PLC splitter Module
6. Tray assembly PLC splitter Module
7. Flat Quick-Connect Termination Type PLC Splitter Module

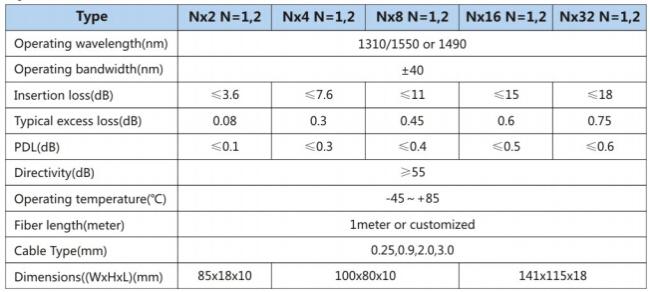

Performance :
Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
