1x2 1x4 1x8 1x16 1x32 1x64 Fiber Optic PLC Splitter With SC Connector Optical Fiber Splitter
1x2,1x4,1x8,1x16,1x32 1x64 or 2...64 Fiber Optic PLC Splitter
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
APPLICATION
- FTTx Systems
- Digital, hybrid and AM-Video systems
- LAN,WAN and Metro Networks
- CATV systems
- Other applications in fiber optic systems
FEATURES
- Low Insertion loss and Low PDL
- Uniform power splitting
- High reliability
- Excellent environmental stability
- Compact size and various package
 |
 |

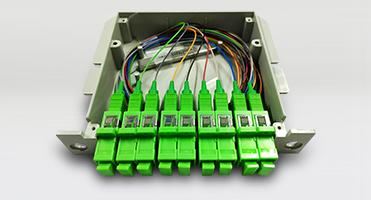

| ABS PLC splitter with SC APC connector | mini type PLC splitter without connector |
 |
 |
| mini type PLC splitter with SC APC connector | LGX PLC splitter with SC APC connector |
|
Parameter/Type
|
Nx2(N=1or2)
|
Nx4(N=1or2)
|
Nx8(N=1or2)
|
Nx16(N=1or2)
|
Nx32(N=1or2)
|
Nx64(N=1or2)
|
|
Fiber
|
9/125 um SMF-28e or customer appoint
|
|||||
|
Operating Wavelength(nm)
|
1260~1650(nm)
|
|||||
|
Insertion Loss
|
≤3.9dB
|
≤7.1dB
|
≤10.3dB
|
≤13.3dB
|
≤16.3dB
|
≤19.8dB
|
|
Loss Uniformity(dB)
|
≤0.6dB
|
≤0.6dB
|
≤0.8dB
|
≤1.2dB
|
≤1.5dB
|
≤2.0dB
|
|
Polariation Dependent Loss
|
≤0.15dB
|
≤0.15dB
|
≤0.2dB
|
≤0.2dB
|
≤0.2dB
|
≤0.3dB
|
|
Return Loss
|
UPC≥50dB APC≥60dB
|
|||||
|
Directivity
|
≥55dB
|
|||||
|
Working Temperature(℃)
|
-40°C to +85°C
|
|||||
Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; And good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
1 . How many staff's we have?
Answer: About 200 well-trained staff and engineers.
2 . When our company be established?
Answer: We started from year 2008.
3 . What's our main products?
Answer: DYS dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.
4 . What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines
5 . What certificate we have?
Answer: ISO 9001: 2008, CPR, UL, RoSH, CE,High and New Tech Enterprise Certficate.
