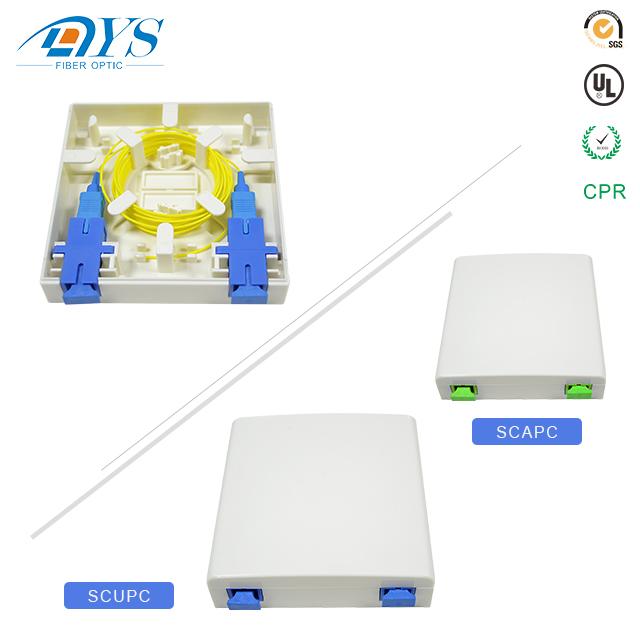

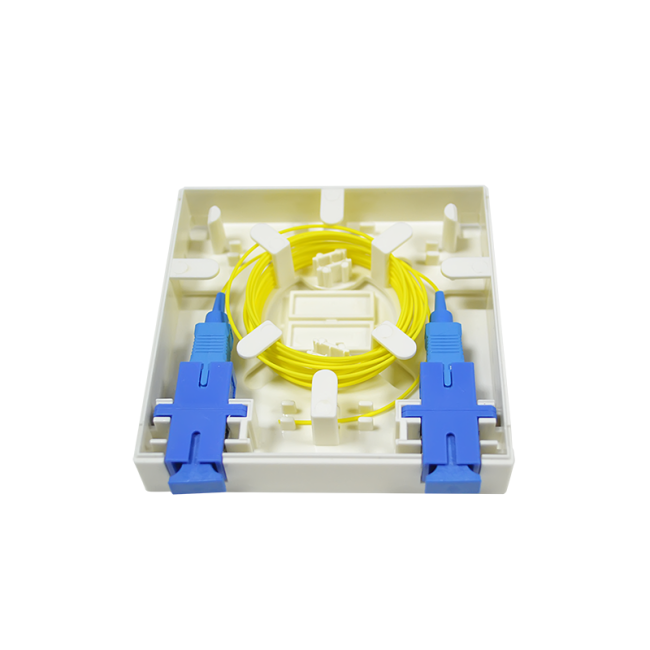

Wall Mount FTTH 2 Port SC Fiber Optic Terminal Box
Brandnew material white SC Fiber Optic 2 core Faceplate FTTH box 2 port mini ODF
The fiber terminal box is the end of a cable, one is the cable, the other is the pigtail, the equivalent of a fiber optic cable is
split into a single optical fiber equipment, installed on the wall of the user cable terminal box, its function is to provide
|Fiber and fiber welding, fiber and pigtail welding and optical connector transfer. And to provide mechanical protection and
environmental protection for optical fibers and their components, and to allow proper inspection to maintain the highest standards
of fiber management.
Features
* Wall installation,space saving,easily installation
* Light weight,high intensity,Good crashworthiness and dustproof
* Clear management for the patch cord and easily find
* Sufficient space can be ensure the fiber bending rate
Application
* Maximum capacity 2 cores
* SC,FC,LC,Suitable adaptor interface
* 1.5mm Material thickness
* 86*86*30mm
* Weight:0.1kg
SPECIFICATIONS
| Parameter | Value | Remark |
| Model | FTTH-006 | |
| Outside Dimension (mm) | 86*86*25 | |
| Material | ABS | |
| Color | White | |
| Storage of fibers | G.657 | |
| Splice capacity | 2fiber | |
| Splice Method | Fusion Splice | 45mm sleeve |
| Adapter type and count | 2 SC/SX or 2 LC/DX | |
| Input cable | 3mm or figure 8 (2*3mm) | From side or bottom |
ACCESSORIES
| No. | Name | Qty. |
| 1 | Fiber splice protection sleeve | 2pcs |
| 2 | Expansion bolts for the outlet wall-mounted | 2 set |
