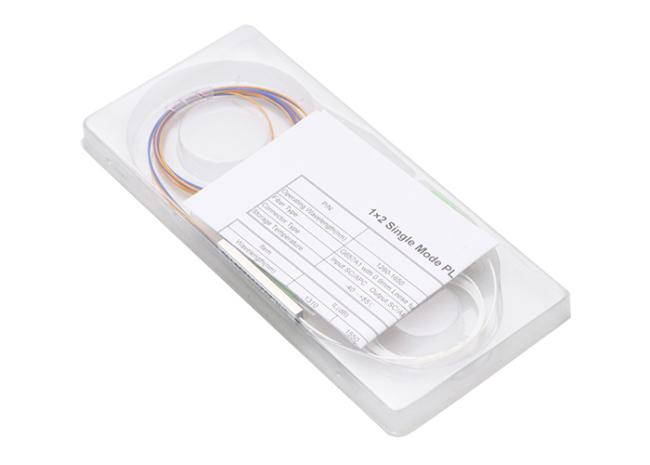

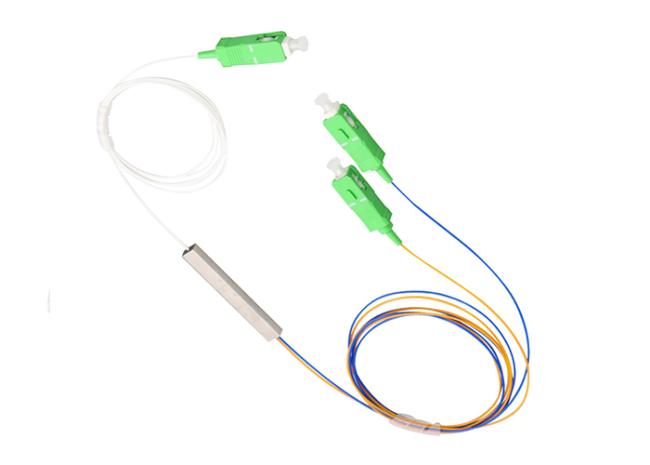

FTTB fiber optic splitter 1x2 Plc Splitter Steel Tube Cable 2 Way
FTTB fiber optic splitter 1x2 Plc Splitter Steel Tube Cable 2 Way
1x2 fiber optic plc splitter steel tube cable 2 way optical PLC splitter
1). Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology.
2). It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely
used in PON networks to realize optical signal power splitting.
3). We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4). All products meet GR-1209-CORE and GR-1221-CORE requirements.
Specification
|
Parameters |
1×4 |
|
Operating Wavelength (nm) |
1260~1650 |
|
Fiber Type |
SMF-28e or customer specified |
|
Insertion Loss (dB)(S/P Grade) |
7.3/7.0 |
|
Loss Uniformity (dB) |
0.6 |
|
Return Loss (dB) (S/P Grade) |
50/55 |
|
Polarization Dependent Loss(dB) |
0.2 |
|
Directivity (dB) |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
|
Temperature Stability(-40~85 ℃)(dB) |
0.5 |
|
Operating Temperature (℃) |
-40~85 |
|
Storage Temperature (℃) |
-40~85 |
|
Packaging Dimension (mm) (L×W×H) |
40×4×4 |
