IP68 Waterproof FTTH Patch Cord Connector Outdoor Fiber Optic Cable Assemblies

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 3-5 work days

Brand: DYS/OEM

Product Description

IP68 Waterproof FTTH Patch Cord Connector Outdoor Fiber Optic Cable Assemblies

IP68 Waterproof FTTX Box and Ttap Optic Connector Outdoor fiber optic cable assemblies

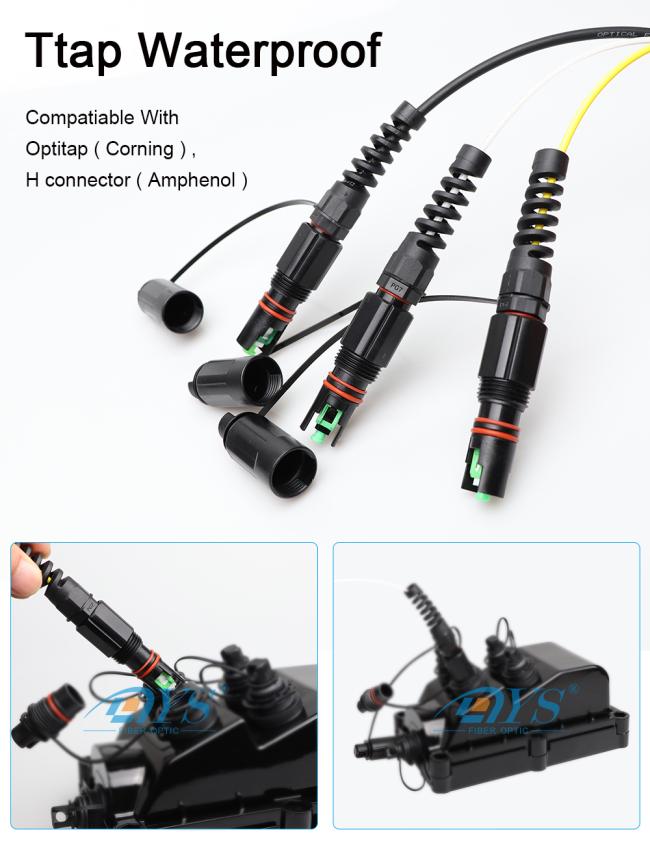

Ttap Optic Connector

Applications:

Fiber optic communications in harsh outdoor environments.
Outdoor communications equipment connection.
Waterproof fiber equipment SC port.
Remote wireless base station.
FTTX wiring projiect.

Features:

Compact size,easy to operate,durable.
Easy connection to hardended adapters on terminals or closures.
Reduce welding,connect directly to achieve interconnection.
Spiral clamping mechanism ensures long-term reliable connection.
Guide mechanism,can be blinded with one hand,simple and quick,connect and install.
Accepts 2.0x3.0mm,3.0mm ,5.0mm Cable Diameters
Factory or field installation,Allows flexibilityto use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.

Product Performance:

Waterproof Rate			IP68.(1M ,1hour)
Applicable optical cable			2.0x3.0mm,3.0mm ,5.0mm
Insertion loss			≤0.50dB
Return loss			≥55dB
End face performance			Conform to YD T 2341.1-2011
Mechanical durability			1000 times
Cable tension	2.0x3.0mm (Ttap Fast Connector)		≥30N; 2Minute
	2.0mm,3.0mm (Ttap Connector)		≥30N; 2Minute
	5.0mm (Ttap Connector)		≥70N; 2Minute
Torsion of optical cable			≥15N
Drop performance			Allow 10 drops under 1.5m height without abnormal performance
Operation temperature		2.0x3.0mm (Ttap Fast Connector)	-10℃~+70℃
		2.0mm,3.0mm (Ttap Connector)	-40℃~+80℃
		5.0mm (Ttap Connector)	-40℃~+80℃
Hot and humid working environment			Long term operation under 90% relative humidity ,70 ℃

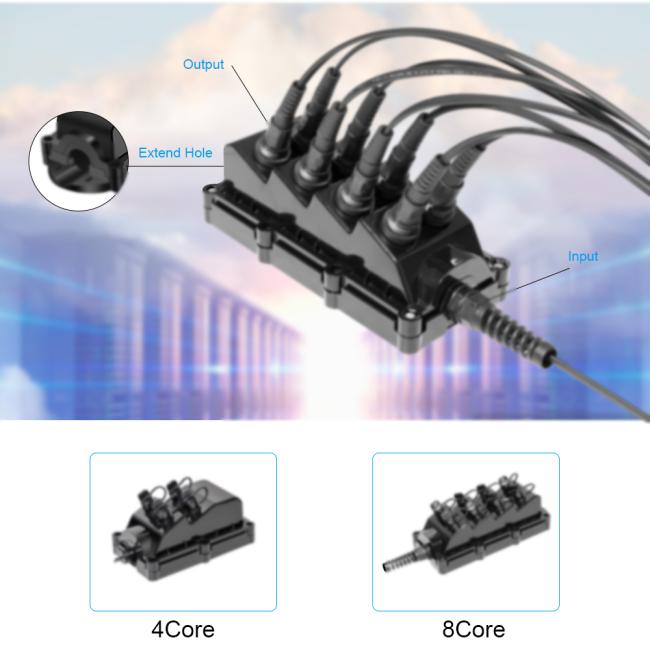

FTTX Box

FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.

Applications

FTTH field
FTTA field
Trunk cable connecting
Prospecting or military communication

Features

High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
Factory-sealed or field assembly.
IP68 water and dust protection
Strong enough: working under 1200N pulling force long term.
From 2 to 12 ports for single or multifiber harsh connectors.
Available with PLC or splice sleeve for fiber divide .
IP68 waterproof rating.
Wall-mounting, aerial installation or holding pole installation.
Decreased angle surface and height make sure no connector interfering when operating.
Meet IEC 61753-1 standard.
Cost effective: save 40% operating time.

Product Parameters

Dimensions(LxWxH)	200x120x85mm(4Core)	280x120x85mm(8Core)
Ingress Protection	IP68
Working Temperature	-40~85℃
Cable Strength Member	Armoured or Non-armoured
Cable Type	Hybrid or non-hybrid
Round Cable OD	5.0mm to 14.0mm
Flat Cable Dimension	4.6x8.9mm
Cable Jacket Material	LSZH,PE or TPU
Bending Radius	20D
Cable Crush Resistance	200N/cm long term
Tensile Strength	1200N long term
UV Resistance	ISO 4892-3
Fire Protection Rating	UL94-V0
Number of PLC	1to 2pcs
Number of Fusion Protection Steeve	1to 24pcs

Configuration

	Standard	Optional
Input Hole	PG13.5	MINI SC,H connector (Optitap),Stap(MPO),ODVA or Customized
Output Hole	MINI SC,H connector	MINI SC,H connector (Optitap),Stap(MPO),ODVA or Customized
Extend Hole	Closed	MINI SC,H connector (Optitap),Stap(MPO),ODVA or Customized
