Tcordial GR-1221 And GR-1209 CompliancePLC Optical Fiber Splitter For CATV System
Tcordial GR-1221 And GR-1209 CompliancePLC Optical Fiber Splitter For CATV System
GR - 1209 PLC optical fiber splitter for Local access network 1 × 4, 4 × 4 × 40 mm
Quick Details
Brand Name: DYS
Model Number: Tcordial GR-1221
Directivity(dB)≥55
Return Loss(dB):UPC:50 APC:60
Operating Temperature(°C):-40~85
Cable Type(mm):0.25, 0.9, 2.0, 3.0
Connector type:FC, SC.ST, LC, MU
PLC Fiber Optic Splitter
Applications
·Telecom network
·Local access network
·CATV system
·Lan
Features
·Low excess loss and high perforance
·High back reflection loss vaule
·Customized packaging and configuration
·Tcordial GR-1221 and GR-1209 compliance
Specifications
|
Type |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
|
Fiber Type |
9/125 um SMF-28e or customer appoint |
||||||||||||
|
Operating Wavelength(nm) |
1260~1650 |
||||||||||||
|
Insertion Loss(dB) |
Typical |
3.6 |
6.8 |
10.0 |
13.0 |
16.0 |
19.5 |
4.0 |
7.0 |
10.5 |
13.5 |
16.5 |
20.5 |
|
(P/S)Max |
3.8/ |
7.1/ |
10.2/ |
13.5/ |
16.5 |
20.5/ |
4.1/ |
7.4/ |
10.8/ |
14.3/ |
17.3/ |
20.7/ |
|
|
Loss Uniformity(dB)-Max |
0.6 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
0.8 |
0.8 |
1.5 |
2.0 |
2.5 |
2.5 |
|
|
Polariation Dependent Loss(dB)-Max |
0.15 |
0.15 |
0.25 |
0.3 |
0.3 |
0.3 |
0.2 |
0.2 |
0.3 |
0.4 |
0.4 |
0.4 |
|
|
Dimension(WxHxL)(mm) Ribbon/Bare Fiber |
4×4×40 |
4×4×40 |
4×4×40 |
4x7x50 |
4x7x50 |
4x12x60 |
4×4×50 |
4×4×50 |
4×4×50 |
4x7x60 |
4x7x60 |
4x12x60 |
|
|
Dimension(WxHxL)(mm) ABS BOX(0.9, 2.0, 3.0mm) |
100x80x10 |
120x80x18 |
141x114x18 |
100x80x10 |
120x80x18 |
141x114x18 |
|||||||
|
Directivity(dB)-Min |
55 |
||||||||||||
|
Return Loss(dB)-Min |
UPC:50 APC:60 |
||||||||||||
|
Operating Temperature(℃) |
-40~85 |
||||||||||||
|
Storage Temperature(℃) |
-40~85 |
||||||||||||
|
Connector type |
FC, SC.ST, LC, MU….. |
||||||||||||
1. Measured at room temperature and excludes connector loss.
2. For devices with connectors, insertion loss will be 0.3dB higher.
Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.

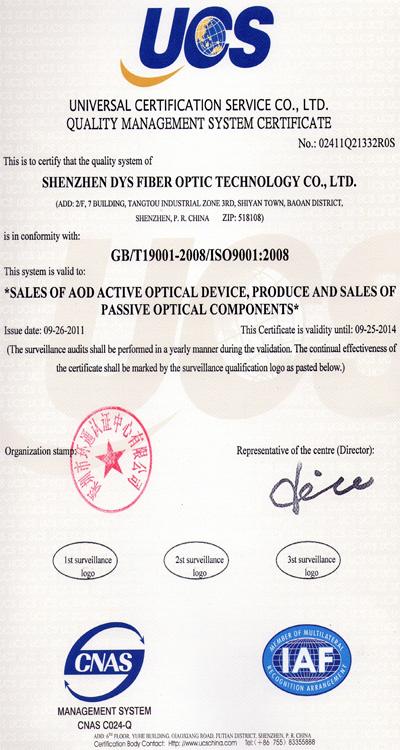

Certificate of qualification
