Cable Tube Fiber Optic Splice Sleeve Coated With Hot Melt Adhesive

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: 3days
Brand: DYS/OEM
Product Description

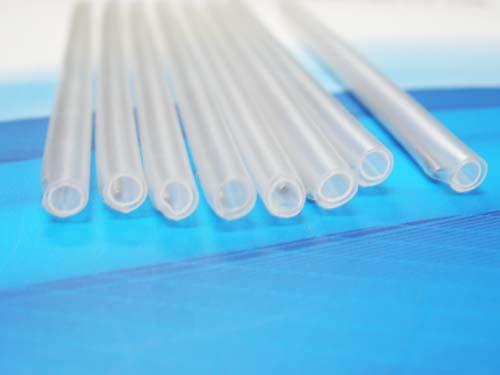

Cable Tube Fiber Optic Splice Sleeves Coated With Hot Melt Adhesive



Quick Details:

Brand Name: DYS

Model Number: Heat-shrinkable

Type:Cable Tube

Length: 60mm

Steel OD: 1.5mm

Materails: plastic and steel

Detailed Product Description

wall heat shrink tube with adhesive, .Use in telecommunication cable closure and fiber optical closure,

This products is medium wall heat shrink tube with adhesive, Use in telecommunication cable closure and
fiberoptical closure, coated with hot melt adhesive, have reliable waterproofing and prevent the air leak.
The style of adhesive can supply coating directly or gyroidal according customer’s requirements.Coated
with sensitive paint, easy to installation indication.



Temperature Range

Continuous Use Temperature:-55C~105C

Minimum fully shrink temperature:120C



No.

Test item

 Test method

 result

1

Tensile Strength

ASTM D638

13 N/mm2

2

Ultimate Elongation

ASTM D638

450%

3

Heating impact  @ 250ºC

UL 224

conformity

4

low temperature test  @ -30ºC

ASTM D2671

conformity

5

Dielectric Strength

ASTM D149

25kV/mm

6

Volume Resistance

ASTM D257

1x1014Ω•cm

7

Longitudinal Change

ASTM D2671

± 8%

8

 Water Absorption

ASTM D570

<0.5%

9

Peeling Strength

DIN 30672

≥125N/25





 Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.





type



as supplied



after recovery



type



as supplied





after recovery

(mm) Diameter

(mm)

(mm) Diameter

(mm)

Φ28/6

28

6.0

2.5

Φ55/16

55

16

2.7

Φ33/8

33

8.0

2.5

Φ65/19

65

19

2.8

Φ35/12

35

12.0

2.5

Φ75/22

75

22

3.0

Φ40/12

40

12

2.5

Φ95/25

95

25

3.0
