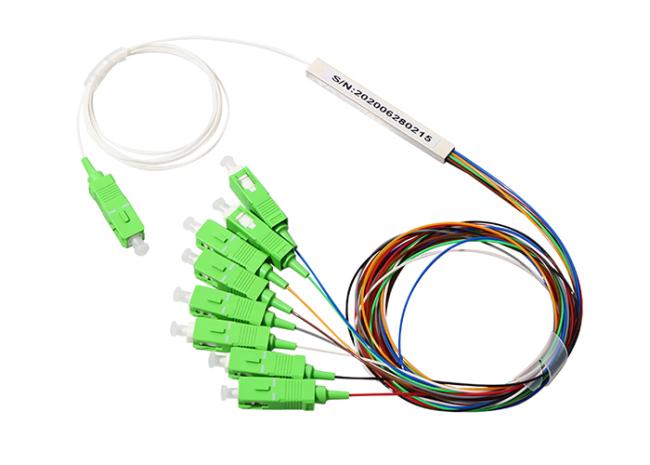

1x8 Fiber Optic PLC Splitter Mini Steel Tube Type 0.9mm
Factory Price 1x8 Fiber Optic PLC Splitter Mini Steel Tube Type 0.9mm
SC / APC Connector 1x8 Fiber Optic PLC Splitter / Coupler
| Product name | PLC Optic Splitter | Product Type | Mini steel tube type |
| Product Model | PLC SC/APC 1:8 | Optical Connector | SC/FC/LC/ST |
| 1 × N PLC Optic Splitter Specification | |||||
| OperatingWavelength(μm) | 1260~1650 | ||||
| Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 |
| Insertion Loss (dB) | 3.6 | 7.5 | 10.2 | 13.5 | 16.9 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 |
| Polarization Dependent Loss (dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 |
| Temperature Dependent Loss(-40~85) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 |
| Returm Loss (dB) | 55/50 | ||||
| Operating Temperature (℃) | -40~+85 | ||||
| Directivity (dB) | ≥55 | ||||
| Storage Temperature (℃) | -40~+85 | ||||
Overview - plc splitter
This optical splitter use Planer Light wave Circuit (PLC) technology for split ratio 2, 4, 8,16, 32 and 64. Optical splitter micro tube type refers to the port 0.9 mm slip-on fiber multi channel direct output with a compact design and easy to use.Application for FTTXnetwork, LAN/WAN or CATV network.
Features 1x8 PLC Splitter
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40℃to 85℃
High Reliability and Stability
