Full Automatic Bottle Blowing Machine with 4 Cavity for Watter Bottle
Full Automatic Bottle Blowing Machine with 4 Cavity for Watter Bottle
Quick Detail:
- Condition: New
- Application: Bottle
- Plastic Processed: PET
- Blow Moulding Type: Stretch Blow Moulding
- Automatic: Yes
- Model Number: CM-A4
Description:
1.Bottle blow molding machinery is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
2.PLC control, full-automatic working
3.High adjusting performance to enable preheat the pre-forms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
4.High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
5.Introduce the FESTO air cylinder to avoid contamination and noise.
6.Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
7.Strong clamping force with high pressure and double crank links to lock the mould.
8.Two ways of operating: automatic and manual.
9.Ideal cooling system makes the finished bottles without any flaws
10. Low rejection rate: less than 0.2 percent.
Applications:
CM-A4 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes.
Specifications:
|
Model |
ITEM |
CM-A2 |
CM-A4 |
|
Productivity |
Depend on bottle design |
1800-2000PCS/H |
3200-4000PCS/H |
|
Product type |
Volume |
0.1-2L |
0.1-2L |
|
Body diameter |
≤100mm |
≤100mm |
|
|
Height |
≤310mm |
≤310mm |
|
|
Neck diameter |
≤38mm |
≤38mm |
|
|
Mould |
Cavity |
2 |
4 |
|
Mold thickness |
240mm |
240mm |
|
|
Mold size |
260*240*370mm |
510*240*360mm |
|
|
Main machine power |
Electrical source power |
380V/220V 50/60HZ 3Phase |
380V/220V 50/60HZ 3Phase |
|
Power |
25kw |
49kw |
|
|
Really use power |
6.5kw |
13kw |
|
|
Air system |
HP air compressor |
1.4 m3/min 3.0Mpa |
2.0 m3/min 3.0Mpa |
|
LP air compressor |
1.0 m3/min 1.0Mpa |
1.6 m3/min 1.0Mpa |
|
|
Air Tank |
0.6m3 3.0Mpa |
0.6m3 3.0Mpa |
|
|
Air dryer |
1.0m3/min 3.0Mpa |
2.0m3/min 3.0Mpa |
|
|
Cooling water |
Water Chiller |
3HP |
3HP |
|
Machine |
Size(L*W*H) |
1900*1280*1930mm |
1900*1860*1930mm |
|
Weight |
2000kg |
3600kg |
|
|
Preform unscrambler |
Size(L*W*H) |
2000*950*2480mm |
2000*950*2480mm |
|
Weight |
250kg |
250kg |
Competitive Advantage:
*Reasonable design, full automaticlly control, save power and labor.

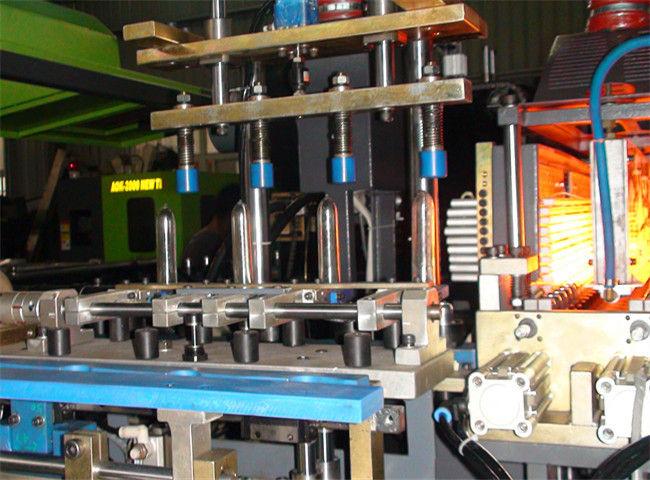

*Feeding system carries the preforms by robot arms automatically.
*Infrared oven adopts the quartz lamp to heat the PET tube.
*Fully automatic process with low investment, high efficiency,quick and safe operation, easy for maintenance.
*We have perfect service after sales .
*Adopting high quality components.
