SSM-1100K 5kw Disposable Paper Cup Production Machine , Paper Cup Sleeve Machinery
SSM-1100K 5kw Disposable Paper Cup Production Machine , Paper Cup Sleeve Machinery
Applications:
SSM-1100 paper cup sleeve machine is designed for paper cup and plastic cup afterward process. Its main function is to wrap and sleeve printed blank perfectly to the cups.
The out-layers have heat-resistant function, it can increase the strength and can have good printing effect of the cups. The product range is from 8oz to 16oz & 16oz up to 32oz.
Specifications:
|
Specification
|
8oz–16oz/ 16–32oz |
|
Max height 80-130mm |
|
|
Max bottom dia 75-115mm |
|
|
Sealing |
Ultrasonic and gluing |
|
Capacity |
80 cups/min (depending on size) |
|
Running Power |
5 kw |
|
Air consumption |
0.1 m3/min at 0.6 Mpa |
|
Net weight |
2700 kg |
|
Dimension |
2520mm x 1400mm x 1560mm |
Competitive Advantage:
· Advanced cylindrical cam indexing gear
· With 80 pcs/min high speed for hollow/solid sleeved cup
· High efficiency and stable production
· Using closed-loop controlled circuit

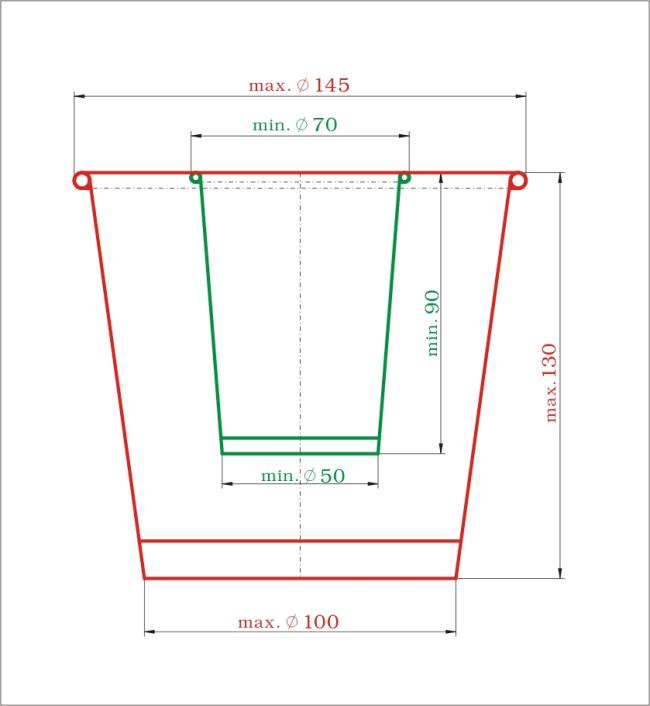

Finished Product Range:
· Top Diameter: 70-145mm
· Bottom Diameter: 50 - 100mm
· Total Height: 90 - 130mm
Other sizes upon request
