Full Color Led Outdoor Display Board Outdoor Stadium Football Game
Full Color Led Outdoor Display Board Outdoor Stadium Football Game
P20 outdoor main parameter
|
No |
Item |
Parameter |
|
1 |
Pixel Pitch |
20mm |
|
2 |
Pixel Construction |
2R1PG1PB |
|
3 |
Pixel Resolution |
2500 (dots)/m2 |
|
4 |
LED Chip |
USA |
|
5 |
LED Applied |
Red, Green 3mm Through Hole Led |
|
6 |
Wave Length of LED |
R: 620 to 630, G: 2400 to 530 |
|
7 |
Module Unit Size |
Length 320mm x Width 160mm |
|
8 |
Module Unit Resolution |
Length 16dots x Width 8dots |
|
9 |
Box Unit Size |
1280mm x 960mm |
|
10 |
Unit Box Resolution |
64dots x 48dots |
|
11 |
Luminance Density |
> = 8000cd/m2 |
|
12 |
Viewing Angle |
Horizontal 120°, Elevation 15°, Depression 45° |
|
13 |
Driving Method |
Static Constant In Electric Current Driving |
|
14 |
Driving IC |
Using Japan TB62726 Driving IC |
|
15 |
Display Color |
16777216 |
|
16 |
Working Voltage |
AC220V ± 15%, 47 ~ 64Hz |
|
17 |
Picture Display Interface |
DVI Interface |
|
18 |
Computer Display Mode |
Display 1024 x 768, 800 x 600 |
|
19 |
Input Signal |
Standard Computer Signal and Video Signal |
|
20 |
Software |
Support Windows Series System |
|
21 |
Life Time |
> = 100000 Hrs |
|
22 |
Protection Grades |
IP65 |
|
23 |
Wholed Display Flatness |
Less Than 1mm Juncture |
|
24 |
Pixel Uncontrolled dots |
< = 1/10000 |
|
25 |
Power Consumption |
Max 1000w/m2, Average < = 400w/m2 |
|
26 |
Box Weight |
< = 65KG/Box |
|
27 |
Operation Temperature Range |
-20°C ~ 60°C |
|
28 |
Operation Humidity Range |
10% ~ 90%RH |
|
29 |
Effective Control Distance |
< = 100M (Multi-Optic Transfer > 3000m) |
Apliance: the government plazza, banks, store exchange, supermarkets, hospital, school.
P20 front and back module
P20 front cabinet and back cabinet

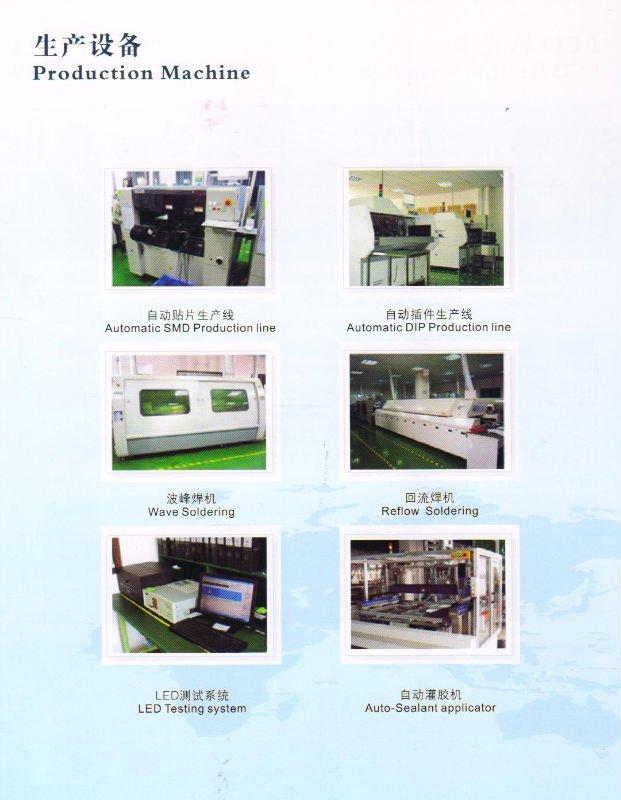

Work shop1
Specifications
Outdoor LED advertising display board
-- Good image for advertising
-- Low power consumption
-- Perfect after service
-- CE,RoHS
-- Waterproof
Products advantages
1)Price:we have the best competitive price at the markets,also have the same even better quality.
2)Quality:from material to finish product,from design to produce,we control all steps,that's the guarantee of the quality and reliablity.
3)service: 2 years warranty
Competitive Advantage:
1, Good quality;
2, Good price;
3, Good 24hours service;
4, Promote delivery;
5, Energy-saving;
6, Small order accepted.
