Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising
Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising
Specifications

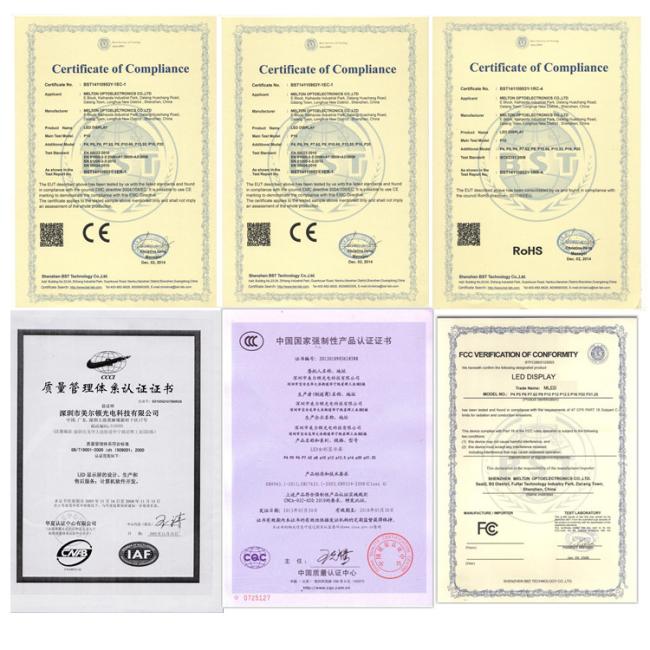

1. CE, RoHS,FCC certificate
2. IP65 waterproof
3. High contrast
4. 2 years warranty time
P8 OUTDOOR P8 SMD 3IN1 TECHNICAL PARAMETERS
|
Unit Module |
Item | Parameter |
| Model Number | P8-4S | |
| Module size | 256mm*128mm | |
| Pixel pitch | 8mm | |
| Pixels Density | 15625/m2 | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD3535 | |
| Pixel resolution | 32dots(W)*16 dots(H) | |
| Max Power | 30W | |
| Module thickness | 17.05mm | |
| Weight | 0.343kg | |
| Drive type | Constant drive | |
| Scan mode | 1/4 1/4scan | |
| Port type | HUB75 | |
| Brightness of white balance | 6500cd/m2 |
|
LED Cabinet |
Dimension | 768mm*768mm |
| Monomer Module Number | 18pcs | |
| Power supply | 5V/40A*3 pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 96mm*96mm | |
| Best viewing distance | 8M40M | |
| Best viewing angle | 160(W) 120(H) | |
| Temperature |
storage:-35+85 working:-20+50 |
|
| Relative humidity | 10%-95% | |
| Thickness | 85mm |
|
Power |
Working voltage | AC220V10% |
| Average Power consumption | <360W/ | |
| Max.Power consumption | <900W/ | |
| Current | <20mA(single LED) | |
|
Control system |
CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | >1800HZ | |
| / Grey scale/colors |
16384,16.7M 16384gray level/16.7M colors |
|
| MTBF | >9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |
Corrugated carton Package:
This is also for led module,40pcs/carton,Carton Size:66x36x36cm
Plywood case package:
In usually, 4pcs cabinet pack into one case,this is for indoor fixed installation led display
3pcs cabinet pack into one case,this is for outdoor fixed installation led display
Both for shopping by air and shipping by sea
Flight case package:
9pcs cabinet pack into one case,this is for rental led display use with convenient wheels and can move anytime,for long time use.
Competitive Advantage:
1, Good quality;
2, Good price;
3, Good 24hours service.
