Popular rgb Slim taxi top advertising light box 5mm Pixel Pitch

Price Negotiable

Price: 1-100000usd

MOQ: 1pc/1sqm

Delivery Time: 8-25 days

Brand: Meltonled

Product Description

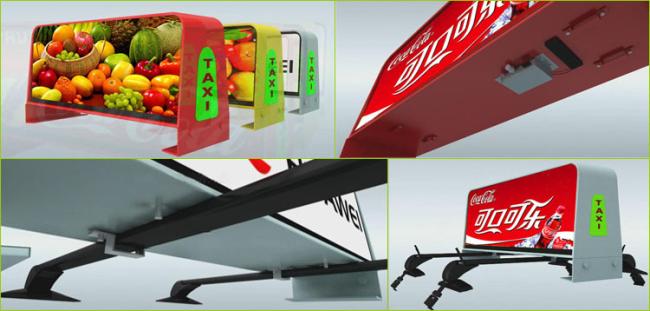

Popular rgb Slim taxi top advertising light box 5mm Pixel Pitch

Product Description

Display Specification
1	Pixel pitch	5 mm
2	Resolution	40,000 dots/sq.m
3	Display size (each side)	W 0.96 × H 0.32 = 0.3072 sq.m
4	Screen resolution (each side)	W 192 × H 64 = 12,288
5	Total module quantity (each side)	W 6 × H 2 = 12 pcs
6	Total cabinet quantity	1 pc
7	Cabinet size (including frame)	W 1012 × H 408 × D 160 mm
8	Power consumption (Max.)	650 W
9	Power consumption (Ave.)	435 W
10	Maximum Current	54.5 Amp
LED Module Specification
11	LED composition	1R 1G 1B
12	LED type	SMD3528
13	Module resolution	W 32 × H 32
14	Module size	W 160 × H 160 mm
15	Driving method	1/8 scan constant current
Cabinet Specification
16	Cabinet material	Aluminum cabinet with frame
17	Cabinet color	Silver
18	Cabinet weight	about 23 kg
19	Flatness	Less than 1mm juncture
Optical Parameters
20	Brightness	3,000 nits/sqm
21	Viewing angle	Horizontal 140°, vertical 70°
22	Minimum viewing distance	5 m
Power Supply
23	Power supply	DC 9 ~ 36V
24	Output voltage	DC 5V
Control System
25	Control card	Sheenled
26	Memory	4G
27	Control method	3G
28	Refresh rate	480 HZ
29	Refresh frame frequency	60~85 HZ
Formats Supported
30	Video	AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV
31	Animation	GIF, SWF
32	Picture	JPG, BMP, WMF
Reliablity
33	Protection grades	IP65
34	Work temperature	-20~+60ºC
35	Humidity(RH)	10~90%
36	LED Life span	More than 100,000 hours
37	MTBF	5000 hours
38	Out of controll dot rate	Less than 1/10,000

1.Good quality for long time use!

2.We can customize led screen depend on your advice!

3.Long warranty for 3 years led screen!

4.Strong package for long way transportation!

5.High Resolutionled led screen for long distance you can see!

6.After-service within 24 hours!

Applications:

Competitive Advantage:

Could provide LED display project support and do investigation in local places since our customers start the LED display project budget.
Customized LED screen software and hardware products will be provided base on customers’ requirements.
Provide LED screen technical training (factory or on-site) for different customers.
Drawings like steel structure drawing, connection drawing, etc. can be provided after the order.
Timely online services are provided whenever there is software operational problems and we’ll solve problems as soon as possible in working with our customers.
