Indoor hd video p5mm Taxi LED Display High definition more lightweight
Indoor hd video p5mm Taxi LED Display High definition more lightweight
Taxi Top LED Display Features:
1. Hot eye-catching AD tool! Advertising effectiveness increased by 300%!
2. Simple installation,RGX WIFI, 3G, USB control system, say goodbye to the wire.
3. High definition, High brightness, Wonderful pictures/videos showed!
4. Aluminum shell, elegant, durable, better heat eliminable and more lightweight!
5. Usual car DC 12V battery power, 24 hours advertising is ok!
6. CE, RoHS, Hight quality product and 5 years warranty!
7. LED Chip: Supplied by Nichia of Japan & Cree of USA & Epistar of Taiwan or other high strictly selected LED chip, assure high definition show effect.
8. Wide viewing angle 120/160°, perfect and impressive viewing effect.
9. Easy Installation: Beautiful standard cabinet or your required cabinet, with aviation plug&socket+handle+lock+side lock, easy to connect cabinets.
10. Seamless Splice: good flatness cabinet with side lock, can make the screen show imagine without splice.
11. High quality IC selection: MBI5024/5035/5036/5039/5042, JXI5020, TLC59283 or other types you require.
12. Famous power supply selection: Meanwell, E-energy, Greatwall etc., CE, UL certified.
| Display Specification | ||||||||||
| 1 | Pixel pitch | 5 mm | ||||||||
| 2 | Resolution | 40,000 dots/sq.m | ||||||||
| 3 | Display size (each side) | W 0.96 × H 0.32 = 0.3072 sq.m | ||||||||
| 4 | Screen resolution (each side) | W 192 × H 64 = 12,288 | ||||||||
| 5 | Total module quantity (each side) | W 6 × H 2 = 12 pcs | ||||||||
| 6 | Total cabinet quantity | 1 pc | ||||||||
| 7 | Cabinet size (including frame) | W 1060× H 400 × D 135 mm | ||||||||
| 8 | Power consumption (Max.) | 650 W | ||||||||
| 9 | Power consumption (Ave.) | 435 W | ||||||||
| 10 | Maximum Current | 54.5 Amp | ||||||||

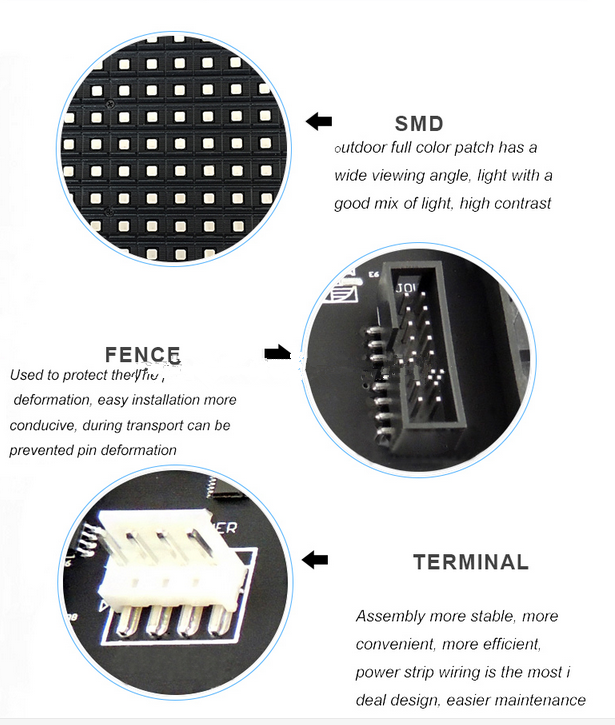

| LED Module Specification | ||||||||||
| 11 | LED composition | 1R 1G 1B | ||||||||
| 12 | LED type | SMD3528 | ||||||||
| 13 | Module resolution | W 32 × H 32 | ||||||||
| 14 | Module size | W 160 × H 160 mm | ||||||||
| 15 | Driving method | 1/8 scan constant current | ||||||||
| Cabinet Specification | ||||||||||
| 16 | Cabinet material | Aluminum cabinet with frame | ||||||||
| 17 | Cabinet color | Silver | ||||||||
| 18 | Cabinet weight | about 23 kg | ||||||||
| 19 | Flatness | Less than 1mm juncture | ||||||||
| Optical Parameters | ||||||||||
| 20 | Brightness | 3,000 nits/sqm | ||||||||
| 21 | Viewing angle | Horizontal 140°, vertical 140° | ||||||||
| 22 | Minimum viewing distance | 5 m | ||||||||
| Power Supply | ||||||||||
| 23 | Power supply | DC 9 ~ 36V | ||||||||
| 24 | Output voltage | DC 5V | ||||||||
| Control System | ||||||||||
| 25 | Control card | Sheenled | ||||||||
| 26 | Memory | 4G | ||||||||
| 27 | Control method | 3G | ||||||||
| 28 | Refresh rate | 480 HZ | ||||||||
| 29 | Refresh frame frequency | 60~85 HZ | ||||||||
| Formats Supported | ||||||||||
| 30 | Video | AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV | ||||||||
| 31 | Animation | GIF, SWF | ||||||||
| 32 | Picture | JPG, BMP, WMF | ||||||||
| Reliablity | ||||||||||
| 33 | Protection grades | IP65 | ||||||||
| 34 | Work temperature | -20~+60ºC | ||||||||
| 35 | Humidity(RH) | 10~90% | ||||||||
| 36 | LED Life span | More than 100,000 hours | ||||||||
| 37 | MTBF | 5000 hours | ||||||||
| 38 | Out of controll dot rate | Less than 1/10,000 | ||||||||
Service:
1. All the price above is based on EXW
2. Quotation Valid : 30 days
3. Payment term: 50% T/T in Advance , balance before shipment.
4, Standard package: Honeybox
5. Guarantee & Service:
* 2 years quality guarantee, and we will provide free parts for replacement if any problem due to the LED panel or part quality under normal use in this period.
* According to the matter of fact, we’ll charge a certain fee for installing.
* We should to charge for the parts at a productive cost when the warranty expires.
6. Lead time: 20 working days after deposit.
7. Payment item are different according exactly inquiry.
