P4.8mm Indoor Led Video Wall Rental 288*288mm , 1/15 scan video led screen hire
New product P4.8mm indoor rental wall 288*288mm 1/15 scan video led screen display
LED parameters
| Item | Luminous Intensity | View Angle(H/V) | Wavelength | Test Condition |
| Red LED | 400-420mcd | 160°/120° | 620-625nm | 25℃,20mA |
| Green LED | 1200-1280mcd | 160°/120° | 520-525nm | 25℃,20mA |
| Blue LED | 190-220mcd | 160°/120° | 465-470nm | 25℃,20mA |

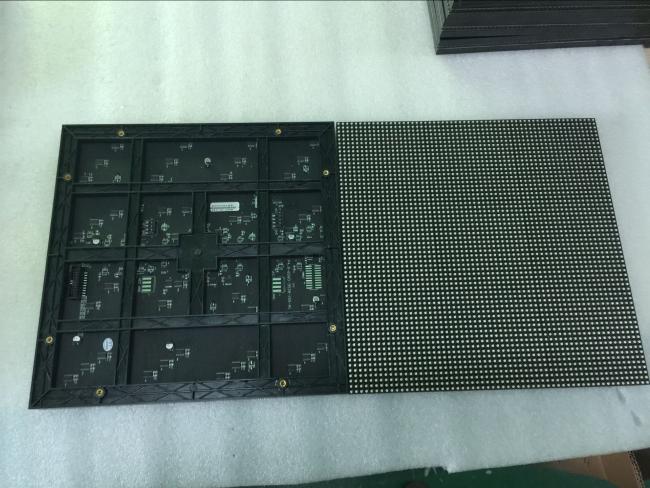

Module Parameters
| Item | Parameter |  |
| Model number | P4.8-15S | |
| Module size | 288x288mm | |
| Pixel pitch | 4.8mm | |
| Pixel density | 43402dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD3528 | |
| Pixel resolution | 60dots(W)*60dots(H) | |
| Drive type | constant drive | |
| scan mode | 1/15scan | |
| Port type | hub576x5762A | |
| Brightness of white balance | ≥1500cd/m2 | |
| Dimension | 576mm*576mm | |
| Pixel per cabinet | 120dot*120dot | |
| Max power consumption(W/m2) | ≤600W/m2 | |
| Working voltage | 220VAC±15% | |
| Best viewing distance | ≥5M |
Packaging Detail: 60cm*33cm*30cm G.W.:15KG
Or as customer's request.
Shipping Detail: UPS/Fedex/TNT/DHL, By air, By sea
FAQ
1.What is DIP?And what is SMD?
DIP means double in line package,we call led lamp.SMD means surface mounted device.
2.What is the delivery time of outdoor full color display?
Usually 20 days after we get the money.
3.Outdoor screen can't use surface mount LED?
We have outdoor SMD display now.We solve the problem of the brightness and water proof.We use SMD5050 led chip.Filling the glue on the surface,use IP65 cabinet.
