3G Wireless Taxi Top LED Mobile Billboard Outdoor Advertising Video Screen P5
Price:
USD 800-900 Per Piece
MOQ:
1 pieces
Delivery Time:
10-12DAYS
Brand:
MLED
Product Description
P5 3G Wireless Taxi Top LED Outdoor Billboard Advertising Mobile Video screen
Product description
Double-Side LED screen
It can play different contents on different screens at the same time;
Easy for Installation
We could provide roof rack for installation according to your need;
With High Brightness
Over 4000-4500 nits to be visible even under sunshine.
IP65 Waterproof Design
With waterproof tape around the modules and PVC board on surface to prevent the rain and dust;
Light Sensor
It can play a wide range of files and automatically adjust brightness according to different environment.
Long lifetime
Over 100000 working hours for longtime
It can play different contents on different screens at the same time;
Easy for Installation
We could provide roof rack for installation according to your need;
With High Brightness
Over 4000-4500 nits to be visible even under sunshine.
IP65 Waterproof Design
With waterproof tape around the modules and PVC board on surface to prevent the rain and dust;
Light Sensor
It can play a wide range of files and automatically adjust brightness according to different environment.
Long lifetime
Over 100000 working hours for longtime
Product parameter
| Unit Module | Item | Parameter |
| Model Number | P5-8S | |
| Module size | 320mm*160mm | |
| Pixel pitch | 5mm | |
| Pixels Density | 40000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD1921 or 2525 | |
| Pixel resolution | 64dots(W)*32dots(H) | |
| Max Power | 45W | |
| Module thickness | 17.05mm | |
| Weight | 0.45kg | |
| Drive type | Constant drive | |
| Scan mode | 1/8scan | |
| Port type | HUB75 | |
| Brightness of white balance | ≥5500cd/m2 |
|
LED Cabinet |
Dimension | 640mm*640mm |
| Monomer Module Number | 8pcs | |
| Power supply | 5V/40A*2 pcs | |
| Thermal discharge | fan 1pcs | |
| Pixel per cabinet | 128mm*128mm | |
| Best viewing distance | 5M～100M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃～+85℃ working:-20℃～+50℃ |
|
| Relative humidity | 10%-95% | |
| Thickness | 85mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 390W/㎡ | |
| Max.Power consumption |
≤980W/㎡
|
|
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ | |
| Grey scale/colors | 65536gray level/16.7M colors | |
| MTBF | ≥9000hours |

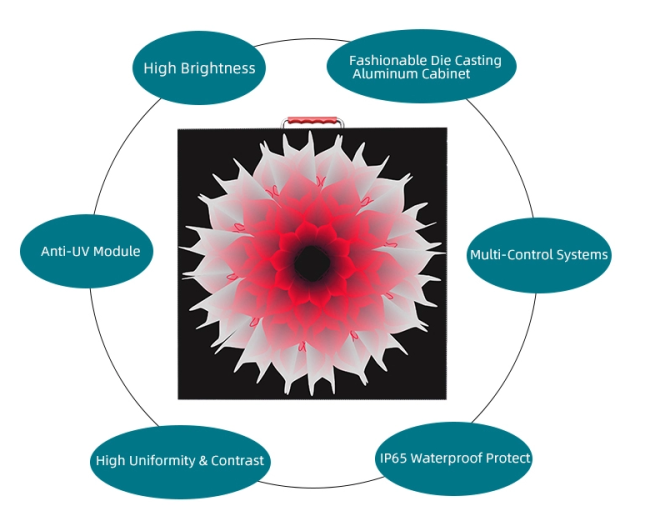

Product advantages
1.High brightness
2.Fashionable die casting aluminum cabinet
3.Muti-control system
4.IP65 waterproof protect
5.High uniformity & contrast
6.Anti-UV module

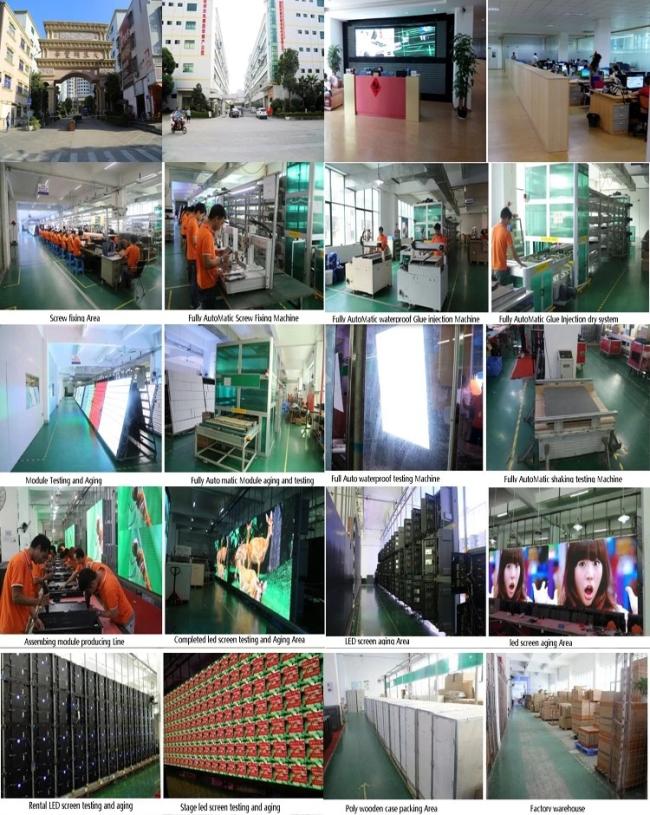

Our company
The reason why choose us
1.We are one of the main manufactures for all in one and digital sinage with over 10 years experience of producing all in one pc and digital signage product
2.We could provide OEM/ODM service for all kind of customers.Our professional support team will provide online service 24 hours for customers.
3.We have experience working with large international retail chains.
4. We have very strong quality control system :Row material control/ process control/compenent quality control /finished product quality /inspection/mass productin spot check/ inspectioncompany check.
5. production capacity:200million yuan
6.Design ability:artwork/instruction manual/ product design according to the customers' requirement
7: Warranty: 2 years
FAQ
1, How to arrange payment?
Our payment terms in usually is T/T payment, For sample and small order, Western Union PayPal or MoneyGram also be acceptable
2, What is our warranty?
Our warranty from 5 years to 1 year basis on different type led screen, In usually every screen we will be ready more extra led screen modules as spare modules, if some modules happen fails, you can replace the fail modules by our spare dules, When all the spare modules use out, You can send back these modules for us to repair, and we will send to you after repair and testing&aging well.
Our payment terms in usually is T/T payment, For sample and small order, Western Union PayPal or MoneyGram also be acceptable
2, What is our warranty?
Our warranty from 5 years to 1 year basis on different type led screen, In usually every screen we will be ready more extra led screen modules as spare modules, if some modules happen fails, you can replace the fail modules by our spare dules, When all the spare modules use out, You can send back these modules for us to repair, and we will send to you after repair and testing&aging well.
3,How to be our distributor?
To be our distributor, We can share our profit together with you in every year,
Also we can send our engineer or sales to your company to support your business, also for led screen after-service, We will together with you to the after-service in the whole led screen life time
4,How to maintain led screen?
In usually every year to maintain led screen one time, Clear the led mask, checking the cables connection, if any led screen
modules fail, You can replace it with our spare modules
To be our distributor, We can share our profit together with you in every year,
Also we can send our engineer or sales to your company to support your business, also for led screen after-service, We will together with you to the after-service in the whole led screen life time
4,How to maintain led screen?
In usually every year to maintain led screen one time, Clear the led mask, checking the cables connection, if any led screen
modules fail, You can replace it with our spare modules
