P5 Outdoor Panel 25W AC 220V 160x160mm Constant Drive LED Advertising Billboard
Price:
9-12usd/pc
MOQ:
1pc
Delivery Time:
1-5days
Brand:
mled
Product Description
P5 Outdoor Panel 25W AC 220V 640x640mm Constant Drive LED Advertising Billboard
TECHNICAL PARAMETERS
| Unit Module | Item | Parameter |
| Model Number | P5-16S | |
| Module size | 320mm*160mm | |
| Pixel pitch | 5mm | |
| Pixels Density | 40000dots /m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD 3528 or 2121 | |
| Pixel resolution | 64dots(W)*32dots(H) | |
| Max Power | 23W | |
| Module thickness | 12-14mm | |
| Weight | 0.4kg | |
| Drive type | Constant drive | |
| Scan mode | 1/16scan | |
| Port type | hub75 | |
| Brightness of white balance | ≥1500cd/m2 |
|
LED Cabinet |
Dimension | 640mm*640mm or 960X960mm |
| Monomer Module Number | 4 | |
| Power supply | 5V/60A*1 pcs | |
| Thermal discharge | anto | |
| Pixel per cabinet | 128*128dots | |
| Best viewing distance | 6M～40M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃～+85℃ working:-20℃～+50℃ |
|
| Relative humidity | 10%-95% | |
| Thickness | 80mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 200W/㎡ | |
| Max.Power consumption |
≤500W/PC
|
|
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Fire rate | Grade one | |
| Display Mode | ≥800*600/1024*768 |

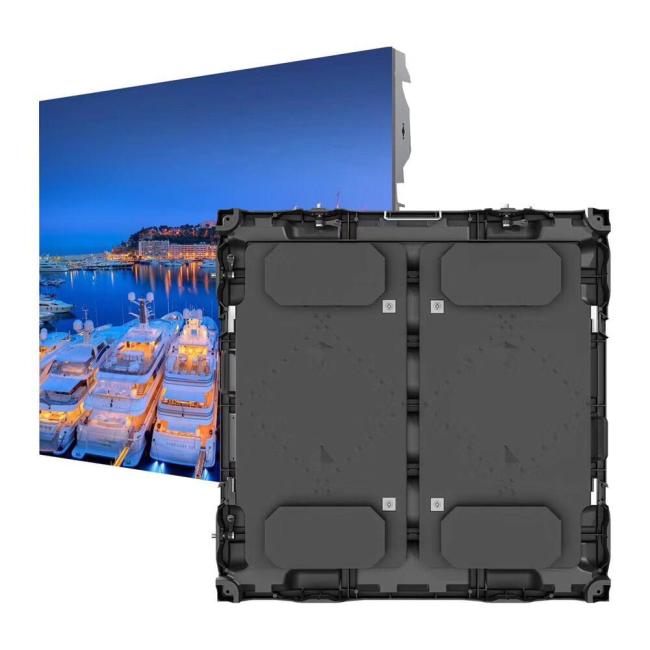

PRODUCT PICTURE
PACKING &SHIPPING

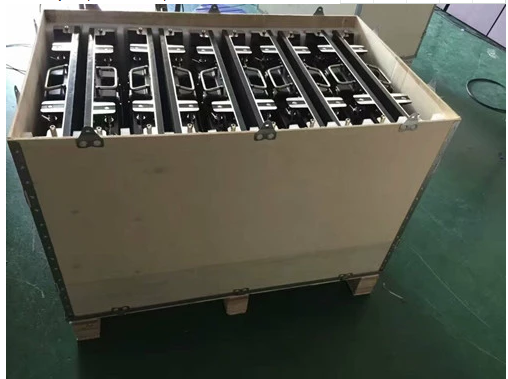

Packing :wooden case &flight case
About Us
Melton is a professional manufacturer of Led Module/ Indoor Outdoor LED Display//Rental Stage Led Display/Led Strip Display/Taxi
Top Led Display/Lamp Pole Led Display/ Led Billboard in Shenzhen.
Our Company: Melton covers 2000square meters with super clean, antistatic workshop, the most advanced equipment, patching,
soldering tin, gluing, aging and testing, have own patented technology.
Our products: are CE approved, RoHS compliant, C-TICK and FCC certificated.
Top Led Display/Lamp Pole Led Display/ Led Billboard in Shenzhen.
Our Company: Melton covers 2000square meters with super clean, antistatic workshop, the most advanced equipment, patching,
soldering tin, gluing, aging and testing, have own patented technology.
Our products: are CE approved, RoHS compliant, C-TICK and FCC certificated.
