5500-6500 Nits Outdoor Full Color LED Display , P6 Advertising Led Video Wall 1R1G1B
Outdoor led screen display P6 advertising led video wall
TECHNICAL PARAMETERS

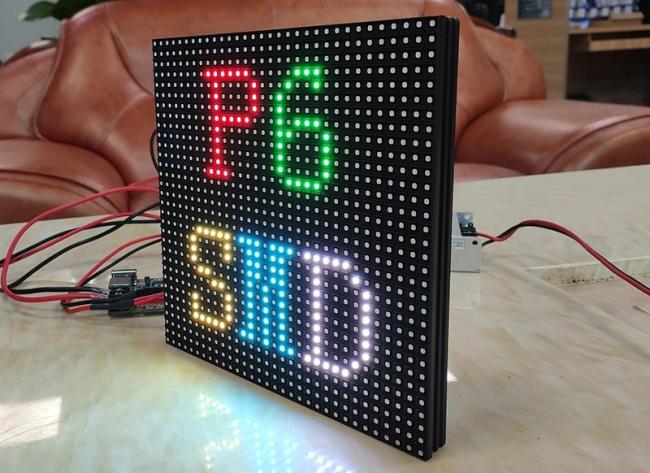

module parameters
|
Unit Module |
Item | Parameter |
| Model Number | P6-8S | |
| Module size | 192mm*192mm | |
| Pixel pitch | 6mm | |
| Pixels Density | 27777Dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD3535 | |
| Pixel resolution | 32dots(W)*32 dots(H) | |
| Max Power | 35W | |
| Module thickness | 14.66mm | |
| Weight | 0.35kg | |
| Drive type | Constant drive | |
| Scan mode | 1/8scan | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥6500cd/m2 |

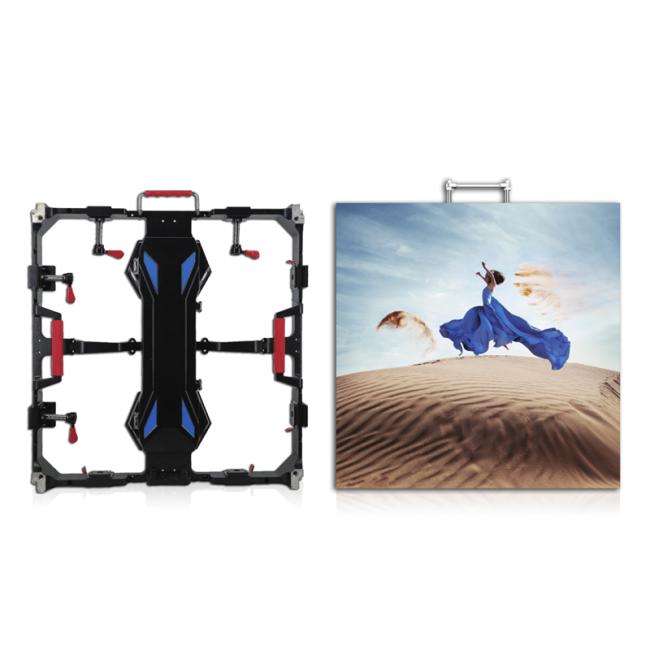

cabinet parameter & photo
|
LED Cabinet |
Dimension | 512mm*512mm |
| Monomer Module Number | 8 | |
| Power supply | 5V/80A*1pcs | |
| Thermal discharge | fan 1pc | |
| Pixel per cabinet | 64*64 | |
| Best viewing distance | 8M~100M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃~+85℃ working:-20℃~+50℃ |
|
| Relative humidity | 10%-95% | |
| Thickness | 85mm |
Screen prarmeters & photo
| Power | Working voltage | AC110~220V±10% |
| Average Power consumption | 400W/m2 | |
| Max.Power consumption | ≤950W/m2 | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | ≥900HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
PACKAGING &SHIPPING
Corrugated carton Package:
This is also for led module,40pcs/carton,Carton Size:66x36x36cm
Plywood case package:
In usually, 4pcs cabinet pack into one case,this is for indoor fixed installation led display
3pcs cabinet pack into one case,this is for outdoor fixed installation led display
Both for shopping by air and shipping by sea
Flight case package:
9pcs cabinet pack into one case,this is for rental led display use with convenient wheels and can move anytime,for long time use.
COMPANY INFORMATION
Mleton is a professional manufacturer of led module / indoor/outdoor led display / rental satge led display /taxi top led display in shenzhen china, which covers an area of over 3500 square meters, production technology is adopted tp ensure the quality of the product. Our products are CE approved,RoHS compliant,C-TICK and FCC certificated.
FAQ
Q1,How to arrange payment?
Our payment terms in usually is T/T payment,for sample and small order,Western union,Paypal or Moneygram also be acceptable
Q2,What is our warranty?
Our warranty from 5year to 1year basis on different type led screen,In usually every screen we will ready more extra led screen moduless as spare modules,if some modules happen fails,you can replace the fail modules by our spare modules,When all the spare modules use out,You can send back these modules to us for repair,and we will send to you after repair and testing&aging well
Q3,How to be our distributor?
To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time
Q4, How to maintence led screen?
In usually every year to maintence led screen one time,clear the led mask,checking the cables connection,if any led screen modules fail,you can replace it with our spare modules
