P3.91 Full Color Led Signs Outdoor , Curved LED Wall Screen Video Display
Price:
480usd/pc
MOQ:
1PC
Delivery Time:
5-8days
Brand:
mled
Product Description

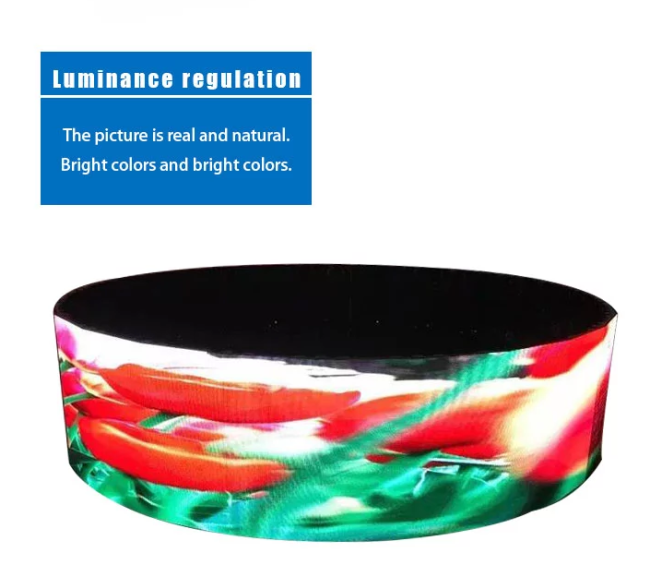

P3.91 outdoor High Quality Curved LED wall Screen
TECHNICAL PARAMETERS
| Item | Technical Specifications | |||
| Pixel Pitch | 3.91mm | 4.81mm | 5.95mm | 6.25mm |
| LED Configuration | SMD1010 (3-IN-1) | SMD1010 (3-IN-1) | SMD1010 (3-IN-1) | SMD2121(3-IN-1) |
| Pixel Density | 65746pixels/sqm | 43264pixels /sqm |
28224pixels/sqm | 25600pixels/sqm |
| Module Size | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Cabinet size | 500mm*500mm/500mm*1000mm | |||
| Cabinet Resolution | 128*128pixels | 104*104 pixels | 84*84pixels | 80*80pixels |
| Cabinet Material | Die-casting Aluminum cabinet with curved design LED Display Screen | |||
| Cabinet Weight | 7Kg curved LED Display panel cabinet | |||
| Brightness | 2000cd/sqm | 2000cd/sqm | 2000cd/sqm | 2000cd/sqm |
| Color Temperature | 3500K-9500K | 3500K-9500K | 3500K-9500K | 3500K-9500K |
| Viewing Angle | H:160°/V:160° | |||
| Ave Power Consumption | 230W/sqm230W/sqm230W/sqm230W/sqm230W/sqm | |||
| Max Power Consumption | 800W/sqm800W/sqm800W/sqm800W/sqm800W/sqm | |||
| Drive Mode | 1/16scan | 1/13scan | 1/7scan | 1/10scan |
| Best Viewing Distance | ≥3.91m | ≥4.81m | ≥5.95m | ≥6.25m |
| Input Voltage | AC220V/50HZ or AC110V/60 HZ (±10%) | |||
| Output Voltage | 5V 40A | |||
| Refresh Rate | ≥3840Hz | |||
| Frame Rate | 50/60Hz/sec | |||
| Protection Level | IP43 | |||
| Life Span | 100,000hours | |||
| Malfunction dot rate | <0.0001 | |||
| Storage Temp/Humidity | —40~+60°C/10-80%RH | |||
| Operating Temp/Humidity | —25~+50°C/10-90%RH | |||
| Input Signal | RGB, S-VIDEO, PAL, DVI, HDMI, VGA, SDI, AVI, RGBHV, CVBS | |||
| Pc Operating System | Microsoft Windows 7.8.10.98.2000. | |||
PRODUCT PICTURE

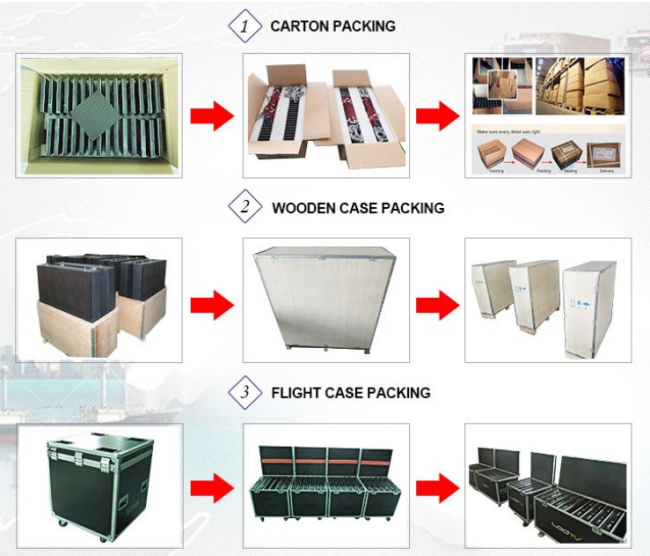

PACKAGING &SHIPPING
Carton Package, Polywood Case Package, Flight Case Package

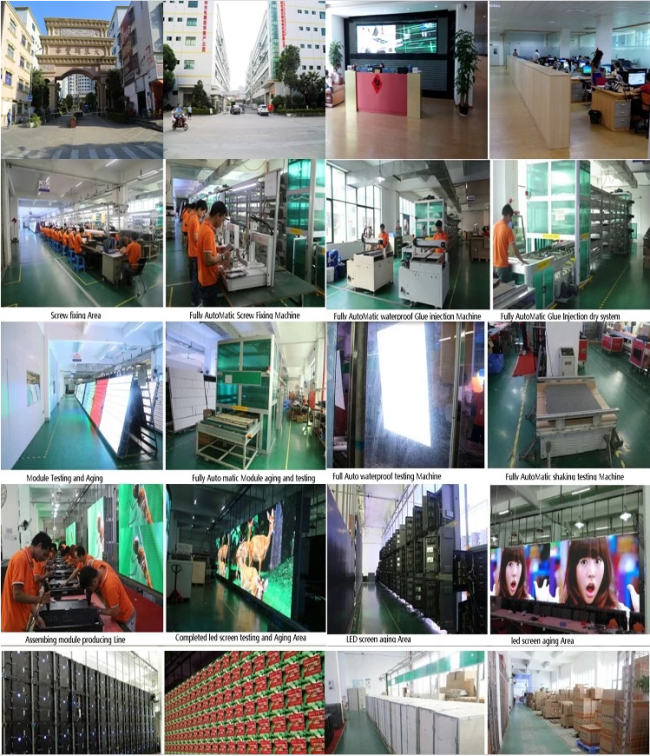

COMPANY INFORMATION
Melton is a professional manufacturer of Led Module/ Indoor Outdoor LED Display//Rental Stage Led Display/Led Strip Display/Taxi Top Led Display/Lamp Pole Led Display/ Led Billboard in Shenzhen
Our Company: Melton covers 2000square meters with superclean,antistatic workshop,the most advanced equipment,patching,soldering tin,gluing,aging and testing,have own patented technology.
Our products: are CE approved,RoHS compliant,C-TICK and FCC certificated
