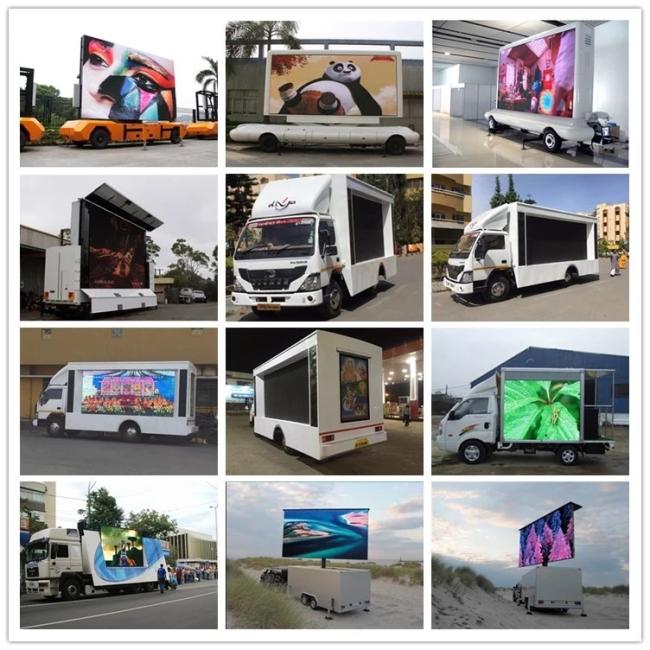

P5 Outdoor LED Display Screen Wall Truck LED Mobile Billboard Trailer AC220V/110V
Price:
USD11.74-USD17.83 per pc
MOQ:
1pc
Delivery Time:
5-15days
Brand:
Melton
Product Description
P5 Outdoor LED Display Screen Wall Truck LED Mobile Billboard Trailer AC220V/110V
Product Description
LED parameters
| Item | Luminous Intensity | View Angle(H/V) | Wavelength | Test Condition |
| Red LED | 700-910mcd | 160°/140° | 620-630nm | 25℃,20mA |
| Green LED | 1500-1894mcd | 160°/140° | 520-535nm | 25℃,20mA |
| Blue LED | 325-403mcd | 160°/140° | 465-475nm | 25℃,20mA |

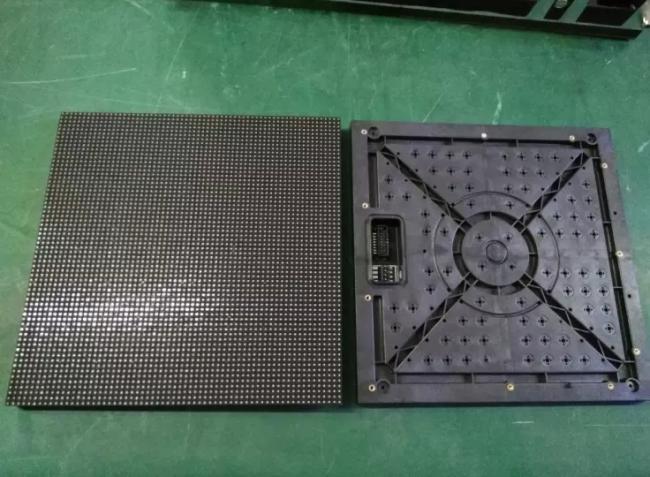

Module Parameters
| Item | Parameter |  |
| Model number | P5-8S | |
| Module size | 160x160mm | |
| Pixel pitch | 5mm | |
| Pixel density | 40000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD2727 | |
| Pixel resolution | 32dots(W)*32dots(H) | |
| Max Power | 50W | |
| Module thickness | 17.05mm | |
| Weight | 0.25kg | |
| Drive type | constant drive | |
| scan mode | 1/8scan | |
| Port type | hub75 | |
| Brightness of white balance | ≥7000cd/m2 |

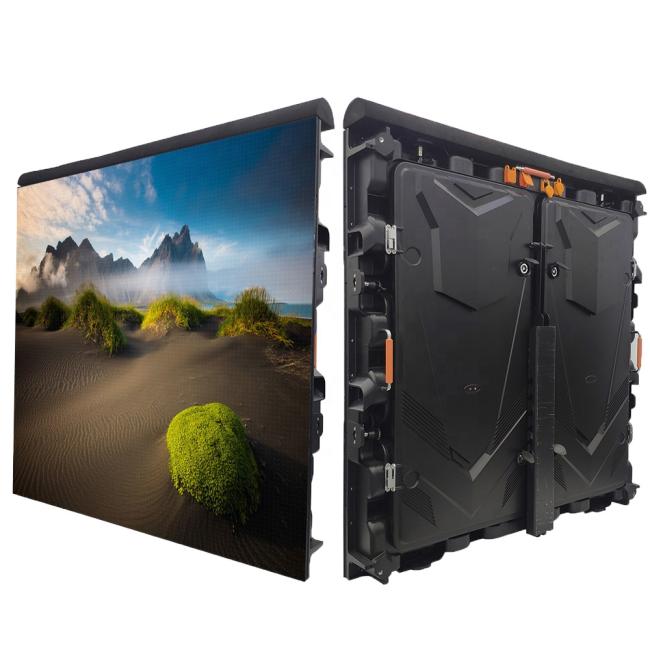

Cabinet Parameters
| Dimension | 640mm*640mm |  |
| Monomer Module Number | 16 | |
| Power supply | 5V60A 2pc | |
| Thermal discharge | fan 1pc | |
| Pixel per cabinet | 128*128mm | |
| Best viewing distance | 5M~100M | |
| Best viewing angle | 160°(W)120°(H) | |
| Temperature |
storage:-35°C~+85°C working:-20°C~+50°C |
|
| Relative humidity | 10%~95% | |
| Thickness | 85mm |
Screen Parameters
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 390W/m2 | |
| Max Power consumption | ≤980W/m2 | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation systerm | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ | |
| Grey scale/colors | 4096 gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Fire rate | grade one | |
| Display Mode | ≥800*600/1024*768 |
The Lifting Handles with Humanity Design
When lifting the cabinet people can feel more comfortable and relaxed.
Support 1 Person to Climb to Finish Maintenance
If there are an issue with a cabinet, you can climb to this cabinet and take the back cover off from cabinet.
The cabinet is custom made and has very good precision.
CNC processing with tolerance within 0.02mm.
The module is 250*500mm.
Which can make LED display look like a complete screen.
Package&Shipping
Packaging Detail:100cm*112cm*71cm G.W.:165KG
Or as customer's request.
Shipping Detail: UPS/Fedex/TNT/DHL, By air, By sea
