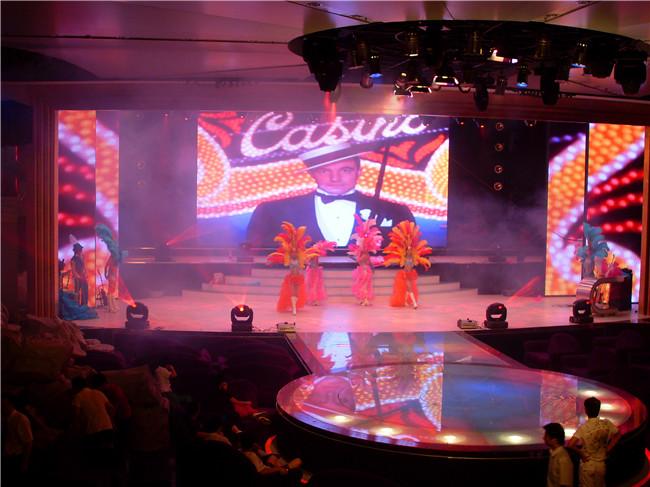

Manufacturer supplier Indoor full color P3 led screen stage for video
Manufacturer supplier Indoor full color P3 led screen stage for video
product description
1.A data connection using horn,connections are tight,to prevent looseing,horn special structure and material design.
2.High gray design,even in low light loss is not gray,large viewing angle,good color uniformity,ensure quality and delicate,high refresh rate to ensure and photos without a more phenomenon.
3.Adjustable brightness according to indoor environment,low attenuation,muti-layer circuit board design.VH4 power supply,the current distribution.
| Unit Module | Item | Parameter |
| Model Number | P3-16S | |
| Module size | 192mm*96mm | |
| Pixel pitch | 3mm | |
| Pixels Density | 111111pixel/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD 2121 | |
| Pixel resolution | 64dots(W)*32dots(H) | |
| Max Power | 23W | |
| Module thickness | 12-14mm | |
| Weight | 0.20kg | |
| Drive type | Constant drive | |
| Scan mode | 1/16scan | |
| Port type | hub75/HUB3.0 | |
| Brightness of white balance | ≥1400cd/m2 |
|
LED Cabinet |
Dimension | 576mm*576mm |
| Monomer Module Number | 18 | |
| Power supply | 5V/80A*1 pcs | |
| Thermal discharge | anto | |
| Pixel per cabinet | 192*192dots | |
| Best viewing distance | 6M～40M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃～+85℃ working:-20℃～+50℃ |
|
| Relative humidity | 10%-95% | |
| Thickness | 80mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 450W/㎡ | |
| Max.Power consumption |
≤980W/m2
|
|
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Fire rate | Grade one | |
| Display Mode | ≥800*600/1024*768 |
packaging and shipping
company information
1.We are a company with a professional display trade team. It is our mission to provide professional and leading control system solutions for the industry, to enhance the competitiveness of products and brands and market value for customers.
2.We hope that within one year, through our team's professional technology, innovative thinking, enterprising spirit, cooperative relationship, win-win attitude, to make the display screen more beautiful, more intelligent, and strive to become a global leader in the field of LED display control.
our service
1. We have a professional engineers team
All of them have experienced more than 5 years in the LED display industry. They are specialists, try their best to make your dream come true.
2. Anything could be customized
Most of our customers are always asking if they could add something from them, or just add their logo on somewhere, our responses are always yes. We could create the screen shape for you, some logo on your product, even could fit your products in it. How amazing that is!
3. Intimate services
Our sales will reply to every question every day, 7-24, even if you couldn't speak English so well, we also have other language support.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
