Energy Saving 30 % 1R1G1B P10 Led Advertising Billboard Outdoor VGA / Svideo
Price:
1-100000usd
MOQ:
1pc/1sqm
Delivery Time:
8-25 days
Brand:
Meltonled
Product Description
Energy Saving 30 % 1R1G1B P10 Led Advertising Billboard Outdoor VGA / Svideo
Applications:
This kind of LED 1R1G1B full color led display is appliled for displaying advertising, city beautifying, information publicity,
great concerns and relative activities.
Specifications:
| Product model number | Mled-PH10-807 |
| 1.Pixel | |
| Pixel L ED | 348 |
| Pixel Configuration | 1 R, 1G , 1B |
| Wave length ( nm ) | R: 800-1000 , G:2040-2450, B: 360-430 |
| Pixels Pitch ( mm ) | 10 |
| 2 . Module | |
| Module Size ( mm ) | 160 * 160 * 20 |
| Module Pixels (dot) | 16 * 16 |
| 3.Unit box | |
| Module quantities in a unit box | 6 (L) * 6 ( H ) |
| Unit box size ( mm ) | 960 (L) * 960 (H) * 150 |
| Unit box Pixels ( dot ) | 96 * 96 |
| Unit box material | Aluminum or Iron |
| Unit box weight (kg) | Aluminum : 40 or Iron : 55 |
| 4.Packaging | |
| Packing Way | Two unit boxes |
| Packing box material | Wooden case or Flight box |
| 5.electricity parameter | |
| Pixel density (dots/ m2 ) | 10000 |
| White Balance Brightness ( cd/m2 ) | ≥7500 |
| Color temperature ( K ) | 5000-9500 (choice by user) |
| Brightness Adjusted | 100 grade by software or by Auto-optic induced. |
| View Angel | Horizontal 120 ° ; Vertical 70 ° |
| Best viewing distance ( m ) | 16-150 |
| Communication distance ( m ) | Internet Wire : 120 Fiber Cable : 1000 |
| Screen work Method | 1/4 scan |
| LED driving method | Constant driving current |
| Gray Grades | 16384 levels for each color |
| Display Color | 4 , 398 , 046 , 511 , 104 |
| Refresh Frequency ( Hz ) | ≥ 800 |
| Picture display method | Dots to dots display synchronized with CRT |
| Signal interface | DVI |
| Input signal | Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV |
| Display format | 800 * 600 , 1024 * 768 , 1280 * 1024 |
| Software | Support windows series system |
| Protection grades | IP 65 |
| Working temperature (ºC ) | -20 +60 |
| Humidity ( RH ) | Up to 95 |
| Stored temperature ( ºC) | -30 +70 |
| Screen Lifetime(hours) | ≥100, 000 |
| Out of controlled dots | ≤3/10, 000 (Out of controlled dots means the pixels of which the brightness, and the wave length are both >10% depart to the normal one) |
| Whole display flatnes | Less than 1mm Juncture |
| Maintance way | Back-maintained or front-maintained, |
| modules displaced | |
| Switch power supply |
Switch power supply (include CE/GS or UL/CSA certificate) 110V/60HZ , 220V/50HZ |
1. LED Display Structure
2. LED Display Control System Diagram:

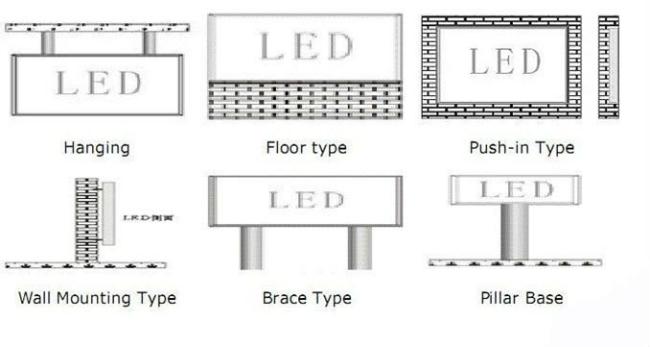

3. LED Display Instal Structure:
Competitive Advantage:
1, Good quality;
2, Good price;
3, Good 24hours service.
