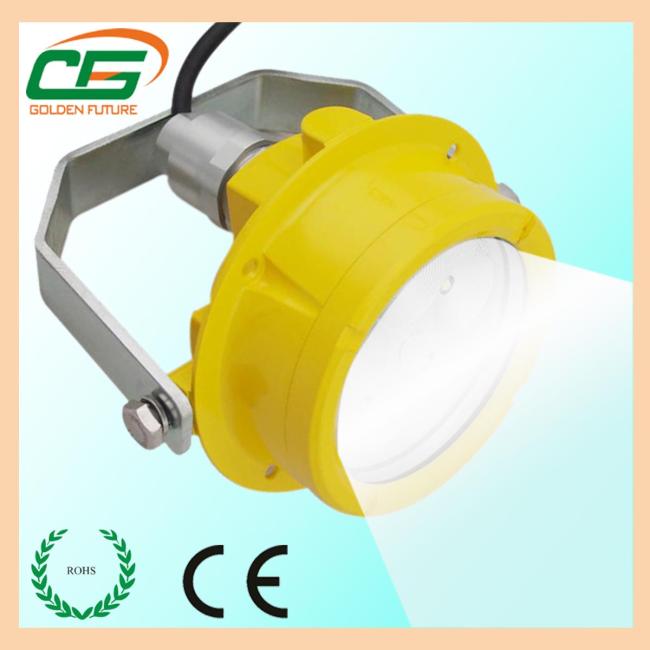

2000lum Waterproof LED Canopy Light 20 Watt WF2 Marine Dock Lighting Fixtures
2000lum Waterproof LED Canopy Light 20 Watt WF2 Marine Dock Lighting Fixtures
UL waterproof LED marine dock light 1. Aluminum housing, 2. corrosion proof. 3. Input power: 20W 4. Output lumen: 2000Lm
UL waterproof LED marine dock light
Housing Construction
Low-copper content cast aluminum
Safety yellow powder coat
Light Source
Cree LED outdoor floodlight
50,000 hours average rated life
2000 lumens
120° beam angle
Lens
Heat-treated glass (GL)
Impact-resistant clear polycarbonate (CP)
Impact-resistant diffuse polycarbonate (OP)
Compliances
Watt: 20W
IP class: IP67
Ex-mark: ExdⅡCT6
Specifications :
|
Items |
Unit |
Value |
|
|
Luminary |
LED Power |
W |
20 |
|
Luminous Flux |
lumens |
2000 |
|
|
Life span |
H |
100, 000 |
|
|
Rated Voltage |
V |
AC 110~240 |
|
|
DC 36 |
|||
|
DC 24 |
|||
|
Dimension |
cm |
16×8.5 |
|
|
Weight |
kg |
2.26 |
|
|
Connecting wire |
mm |
6~8 |
|
|
Inlet’s thread |
G3/4 |
||
|
Corrosion protection Classification |
WF2 |
||
|
Insulation Classification |
I |
||
|
IP Classification |
Ip67 |
||
|
EX Mark |
ExdⅡCT6 |
||
|
Certificate of Conformity Serial No. |
CNEx07.1999 |
||
|
Housing |
Low-copper content aluminum housing
|
||
