Hydraulic Tension Station Slitting Line Machine / Cut To Length Machine

 COIL CAR

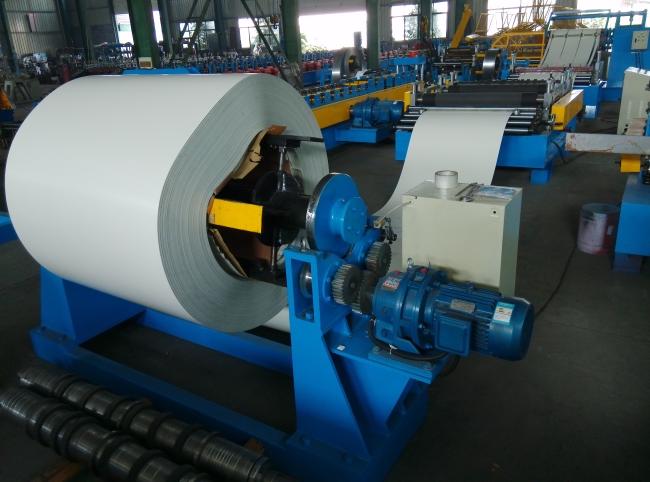

UNCOILER

HOLD DOWN ROLL

LEVELER

SHEAR

SIDE GUIDE

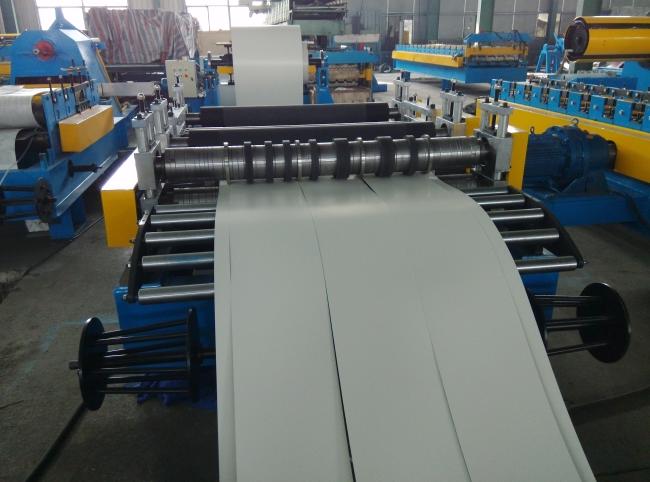

 SLITTER

 SCRAP WINDERS

 LOOP TABLE

 TENSION STATION

 SEPARATOR

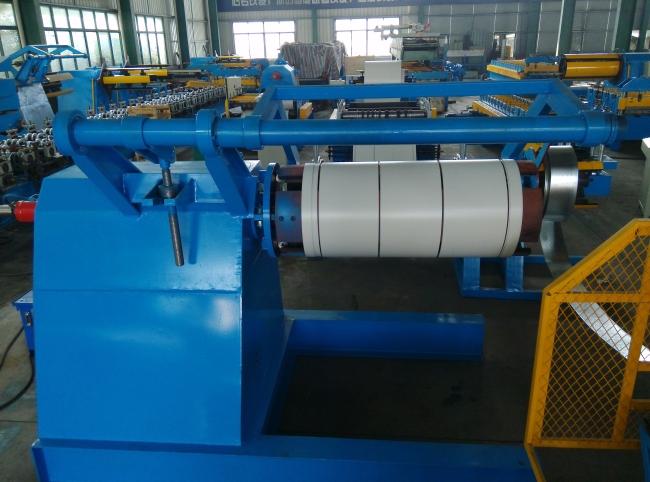

 RECOILER

Descriptions:
Components of the 1300 semiautomatic slitting line: coil car, hydraulic decoiler, slitter, hydraulic tension station, hydraulic recoiler

Main parameters:
Size(mm):20000*6000*2000
Material: common carbon steel sheet, zinc-plating roll sheet, stainless steel sheet
Material quality: steel coil
Thickness(mm): 0.2-2.0
Width(mm): 1250
Coil I.D(mm): f508
Coil O.D(mm): f1500
Coil weight: 11t(max)

Slitting product:
Coil I.D: f508mm
Slitting tolerance thickness:1.0mm?.03mm(max)
Slitting burr thickness: 1.0mm=0.03mm(max)
Minimal width :12mm
Slitting number: 12(coil thickness 0.5mm)
16(coil thickness1.5mm)
Electric power: 380V/50HZ/3PH
Capacity: 100KW
Speed: 0-30m/min
Slitting type: rolling shear
