Roof Panel Making Auto Stacking Machine , 2 Tons Electric Pallet Stacker
Automatic Stacker and Convertor for Roof Panel
Making Machine With Simple Structure
and Reliable
The machine is customized according to our Austrialian customer's requirement.We can also customize machines according to your requirements(such as capacity,Max.loading height,Max.valid length and so on).Please contact us when you are free!
Flow Chart
Transmission rollers---Pneumatic swing arm---Sheet landing---Conveyor
Technical specification
Item 1: 8m automatic stacker
| Valid length | MAX 8m |
| Capacity | 2ton |
| Max loading height | 600mm |
| Material of frame | 45# fine forged steel |
| Roller station | 16 stations (32 rollers) |
| Roller material | 45# fine forged steel, quenched and chrome coated 0.05mm |
| Dimension of stacker | about 8m*1.5m*1m(L*H*W) |
| PLC | without |
| Valves | 1piece, type: 24VDC |
Item2:9 m long ways conveyor
| Motor Power | 4kw, hide inside of conveyor |
| Driven | 0.6’’ single chain |
| Roller station | 18 stations |
| Roller material | 45# fine forged steel, quenched and chrome coated 0.05mm |
| Dimension of conveyor | 9000mm*800mm*1000mm (L*H*W) |

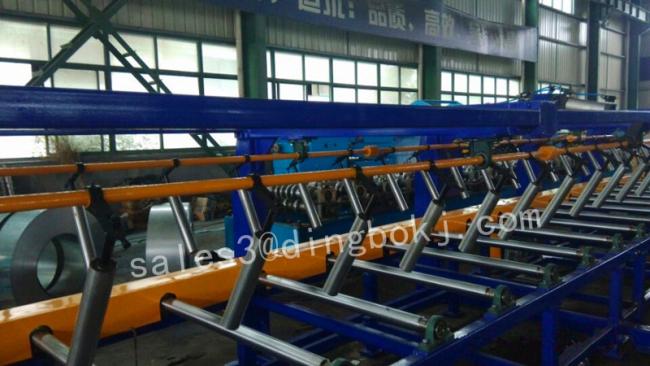

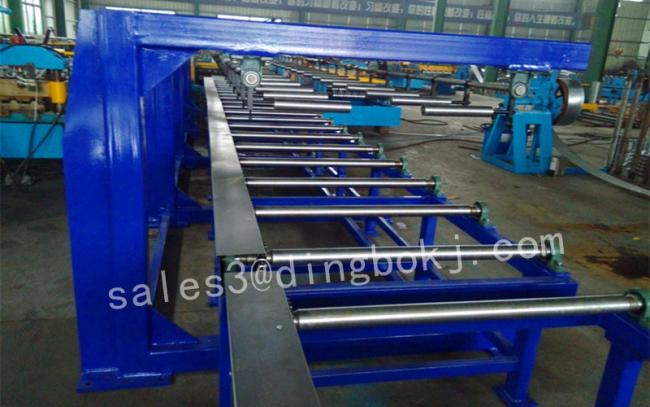

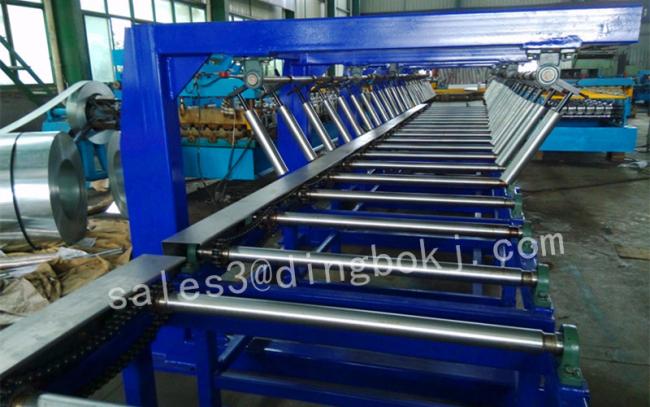

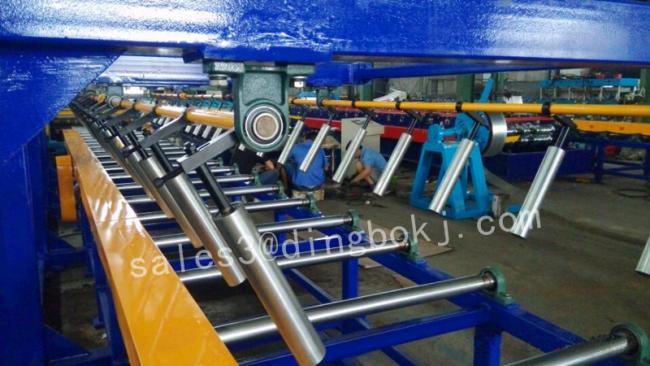

picture presentation
Guarantee
l A year free guarantee after the product is shipped.
l During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
l We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

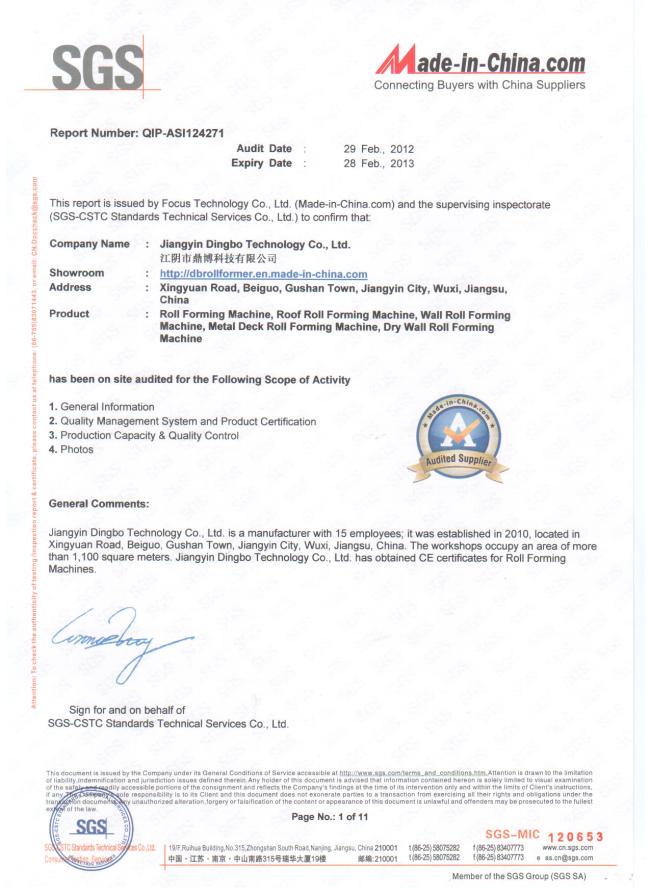

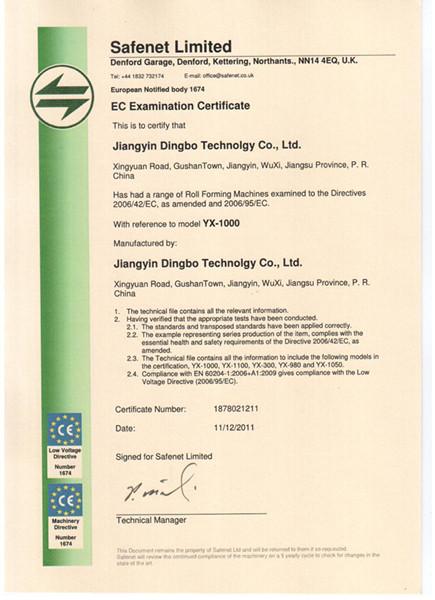

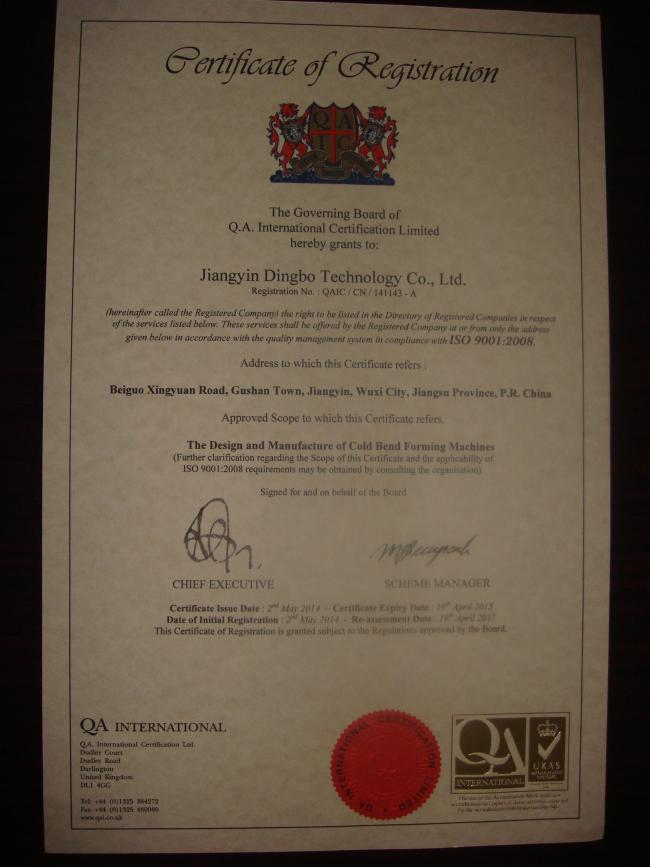

Certificate
