Hot sale high performance IP68 wetherproof under vehicle inspection system for prisons bank entrance security
Fixed Under Vehicle Inspection Systems for parking lot Government Building Bank entrance security
Features:
● Multi entrance management model, management, and
statistics of entering and exiting vehicles
● Auto digital line scan, high-resolution undercarriage imaging.
● High automation, easy to be used
● Applicable to variety of vehicles, wide vision.
● Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
● Undercarriage image can be stored, retrieved, searched or compared with other images.
● Avariety of image processing methods: enlarge, stretching and cutting.
● (Optional)ALPR-Automatic License Plate Recognition and RFID technology. associative storage of
various vehicle information and undercarriage images.

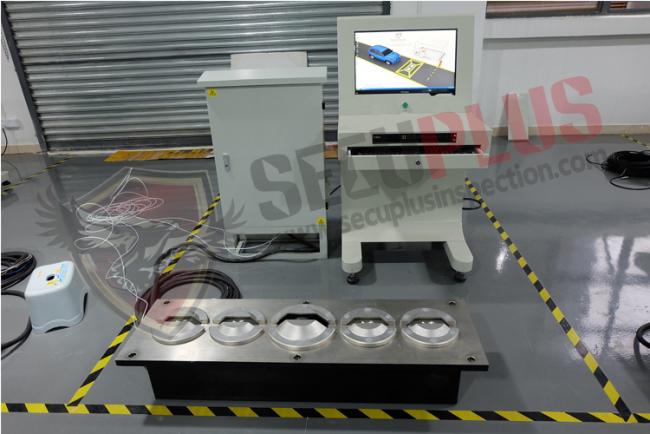

Embedded Screening Part
| Camera Sensor | line scans CCD |
| Resolution | 5000*2048 pixels |
| Power Supply | 24VDC, 3A |
| Pixel count | 2048 |
| Image color | Color, B/W image |
| Line rate (max) | 19kHz |
| Line period time | 53us |
| Pixel size | 14um x 14um |
| The length of the line array | 29mm |
| Sampling bits wide | 8bit |
| Sensitivity | 41V/uJ/cm2 |
| Transmission mode | (Gigabit Ethernet) /100m |
| Power Dissipation | less 8W,12V |
| Working Temperature | 0℃ to 60℃ |
| Illumination | LED |
| Power Supply | 24VDC,150W |
| Size | 1200mm x 350mm |
| Operating Temperature Range | -20 degree to +70 degree |
Distribution box Controller
●Input: 2 channels induction coil
●Output: 1 Channel switch type 12VDC
●Communication port: RS485, Ethernet(Optional)
●Operating Temperature: -10℃ to 55℃
System Host
●CPU: Intel(R)I5
●Memory:4G( optional 8G)
●Graphics:512M
●Hard Disk:SATA2 Hard Disk 1TB
●Dual LAN (At least one Intel Gigabit)
●USB2.0 (Up to 2 pieces)
●Monitor: 22inch LCD, resolution up to 1920*1080
●Scene Video Record: 4 channel, Compression algorithm of scene video: H264

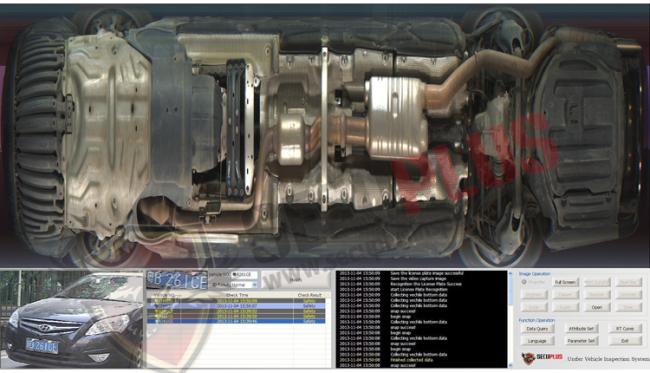

Color Scanning image

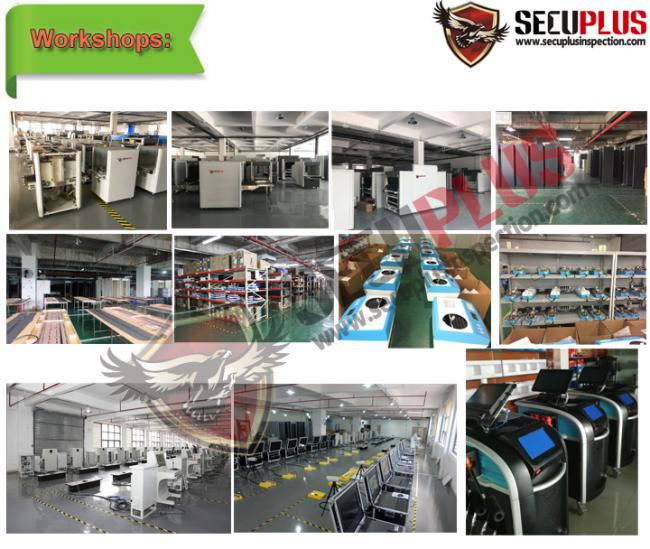

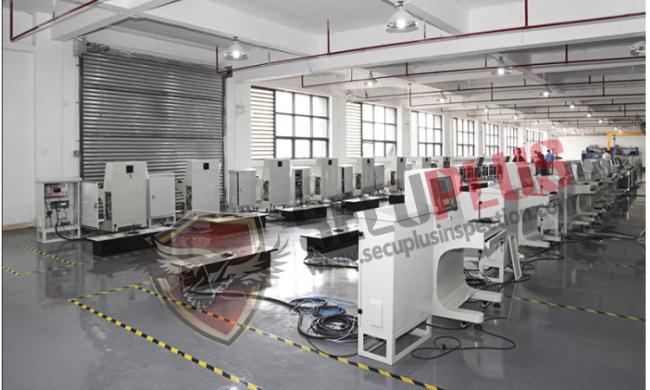

Work Shop
