80Kv Digital X Ray Scanner Airport luggage scanner High Humidity
80Kv Digital X Ray Scanner Airport luggage scanner High Humidity

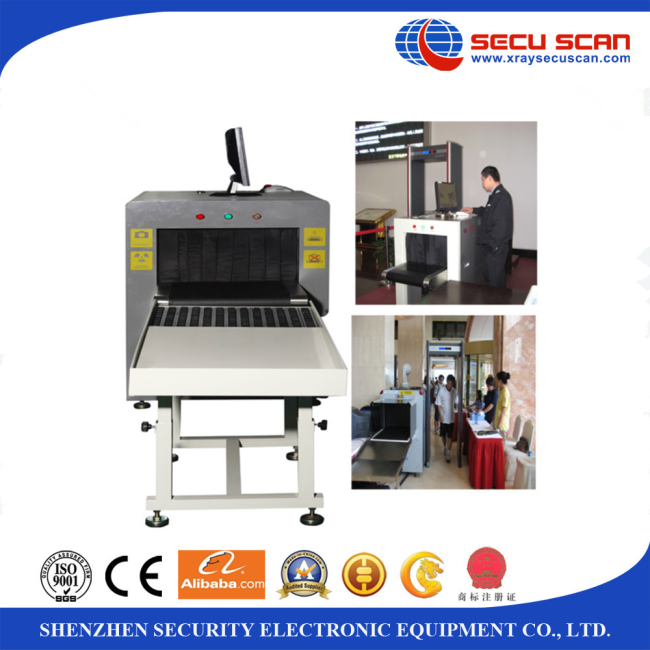

The AT-5030A easily accommodates the inspection of hand baggage and parcels.
| Tunnel Size | 500(W)*300(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 150kg |
| Penetration | 6 to 8mm Steel |
| OEM | YES |
X-ray Generator
| Generate direct | Upward |
| Generate angle | 60 degree |
| Anode Voltage | 80Kv |
| Anode power | 0.4 to 0.5mA |
| Cooling / Duty Cycle | Oil Cooling /100% |
Image System
● X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
● Monitor: High Resolution Color, LCD Accord, 17 inch
● Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
● Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
● Image Processing: 24bit for processing real time
● Image storage: Storage 60000 pictures in real time
● Zoom: 2,4,8,16 Times Enlarge, Whole screen continuous observation
Installation Data
● Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
● Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
● Operation Power: 220VAC(±10%)50±3Hz
● Power Consumption: 1.0 KW (max), 0.3KW(working)
● Noise: <65db

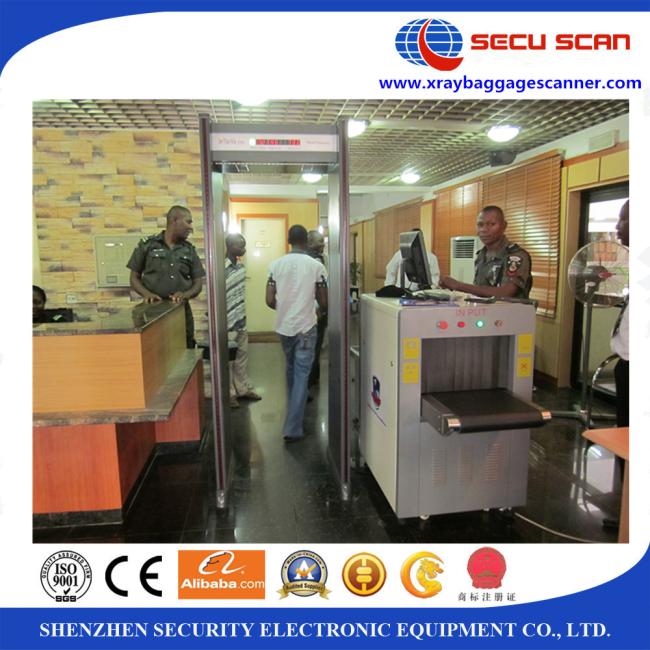

Case pictures

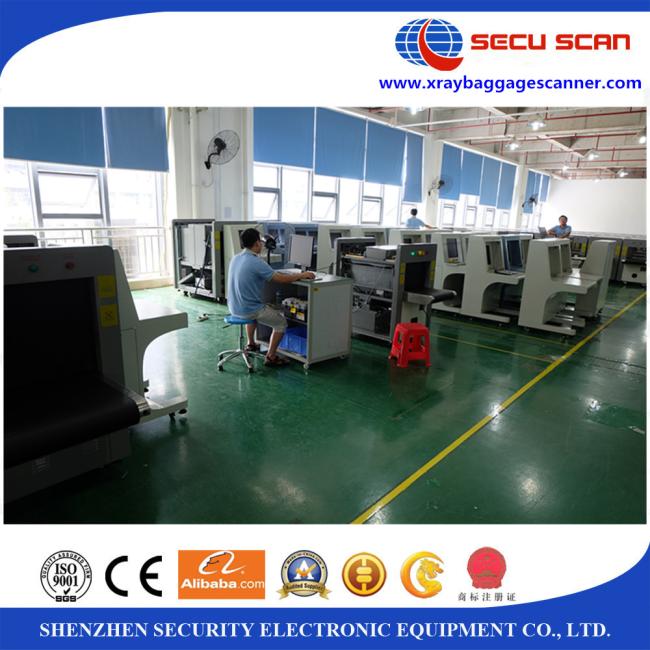

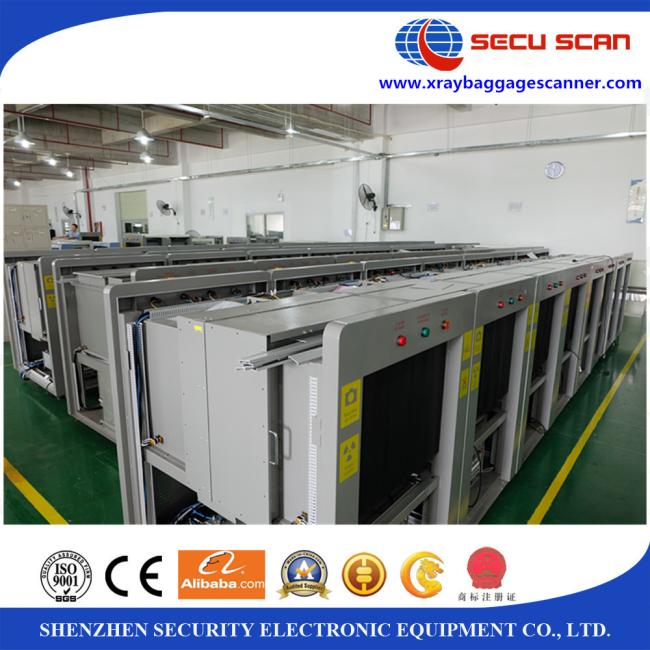

Our work shop
