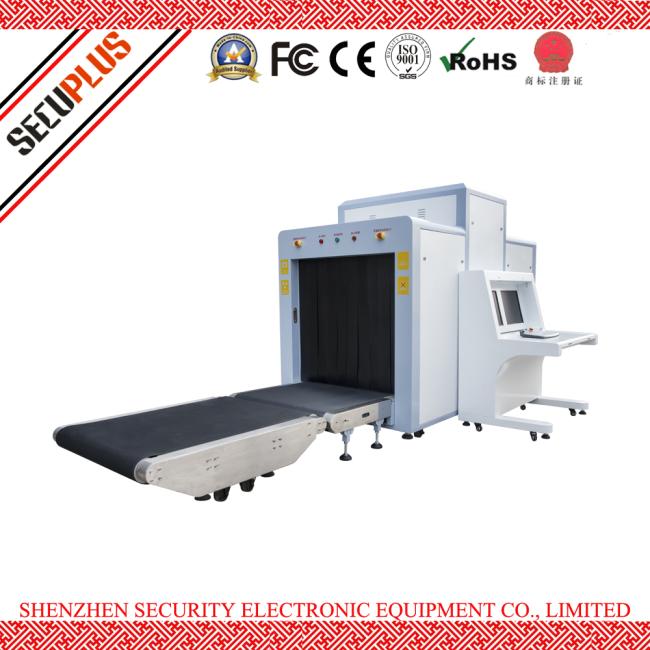

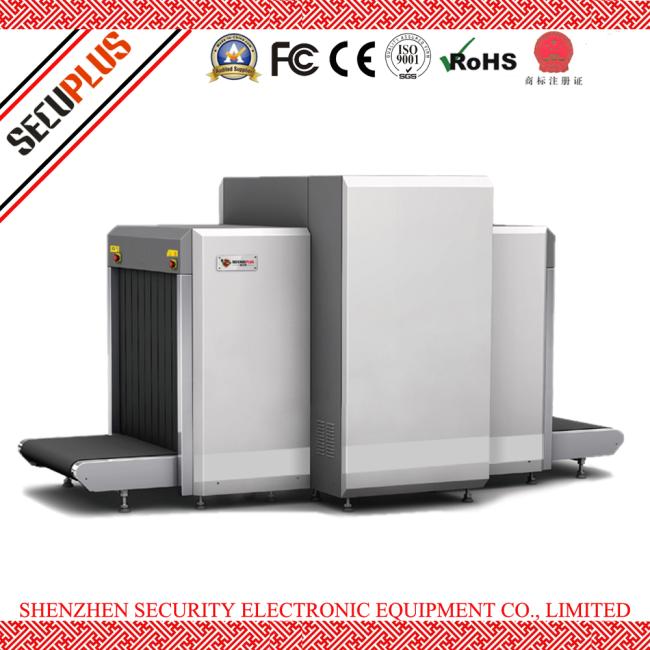

Airport x ray security systems With high Steel penetration 34mm SPX-6550 Scanner
Airport x ray security systems With high Steel penetration 34mm SPX-6550 Scanner
General Specification
● Tunnel Size: 650(W)*500(H)mm
● Conveyor Speed: 0.22m/s
● Conveyor Max Load: 170kg
● Dose per Inspection <1.4Gy/h
● Resolution 34AWG to 40AWG
| Spatial resolution Level | dia1.0mm, Vertical: dia1.0m |
| Penetrate resolution | 24WG to 34AWG |
| Penetration | 30mm to 40mm Steel |
| Film Safety | Guarantee ISO1600 Film |
| X-ray Leakage | <0.1 μGy/h (at a distance of 5cm From external housing) |
X-ray Generator
● Generate direct: Upward
● Generate anger: 80 degree
● Anode Voltage: 100~160Kv
●Anode power: 0.4 to 1.2mA
● Cooling / Duty Cycle: Oil Cooling /100%
Image System
● X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
● Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
● Zoom: 2,4,8,16 Times Enlarge, Whole screen continuous observation
● Assist to detect drug and explosive powder
| Image Grey Level | 4096 |
| Image Max Resolution | 1024 * 1280 pixel |
| Image Processing | 24bit for processing real time |
| Image storage | Storage 60000 pictures in real time |
| Multi-energetic distinguish objects | organic objects in orange, inorganic objects in blue, mixture in green |
| High-energy/low energy | switch from high energy to low energy |
| Monitor | High Resolution Color, LCD Accord, 17 inch |
Installation Data
● Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
● Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
● Operation Power: 220VAC(±10%)50±3Hz
● Power Consumption: 1.0 KW (max), 0.7KW(working)
● Noise: <58db
