Vertical And 2 Horizontal X - Ray Security Inspection Equipment 0.5m / S Speed

 Features :
*  Non-intrusive automatic detection of narcotics inside the bag or parcels
*  Real time detection without the need to stop the conveyor and lose time
*  Does not require operator image processing or manipulation
*  Automatic detection of explosives, Threat Image Projection (TIP)
*  Density Threat Alert (DTA)
*  Ultra high scan speed, scan 2000 to 2300 bags / hour
*   0.50 meters per second belt speed
*  Large rectangular tunnel for 100cm x 100cm
*   Best-in-class imaging and detection
*  seamless integration with an airport's baggage handling system.
*   No moving parts in the gantry delivers superior mean time between failure (MTBF)

Advanced Design :

    AT100100T was designed to the highest level of detection performance. The system utilizes 3 fixed X-ray sources and multiple detector arrays to create high resolution images from three different views.

    Images of suspect bags are displayed on our latest viewing station where operators have high resolution 3 views to evaluate.

   Optimized BHS Integration : AT100100T was designed to insure seamless integration with an airport's baggage handling system.

   The AT100100T dieback tolerant technology allows bags to be stopped in the scan plane for short periods and still allow the explosive detection analysis to proceed without impact.This increases the effective throughput and reduces costly rescreening of these bags.

More powerfully to distinguish the slight difference of organic articles, for example :
1)  can distinguish water and gasoline.
2)  Can present better shape of articles
3)  Can find threats beneath the laptop.

General Specification:

*  Tunnel Size: 1000(W)*1000(H)mm
*  Conveyor Speed: 0.50m/s
*  Conveyor height :800mm
*  Conveyor Max Load: 200kg (75kg/m²)
*  Wire Resolution:40AWG
*  Penetration: 40mm Steel
*  Film Safety: Guarantee ISO1600 Film(33 DIN)
*  X-ray Leakage < 1.7μSv /h at the distance of 5 cm (2" )from external housing
Operation Cycle: 100%. [start -up time about1-2 for boot procedure and self-tests]
*  Throughput : Typically 2000 to 2300 items/h
*  Data recording mediums : No damage to computer memories, such as cassettes, floppy disks or hard disks due to x-rays.

*  X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 16bit Deep
*  Three monitors: High Resolution Color, LCD Accord, 17inch

X-ray Generator:
*  Generate quantity: 3 pieces of generators in difference directions.
*  Beam direction : vertical and 2 horizontal
*  Anode Voltage: 160Kv
*  Anode power: 0.4 to 1.2mA
*  Cooling / Duty Cycle: Oil Cooling /100

Installation Data:
*  Operation temperature/Humidity: 0ºC to40ºC/10%-90%(non-condensing)
*  Storage Temperature/Humidity: -20ºC to60ºC/10%-90%(non-condensing)
*  Operation Power: 187~240VAC, 50/60Hz
*  Power Consumption: <3KVA
*  Noise: <58db
*  Input / output extension Roller (optional)

Software System:

*  Image Processing: B/W, color, Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
*  Threat Image Projection software : Screener assist Threat Detection System.
*  Remote workstations (optional)
*  Supervisor workstation (optional)
*  Automated explosive threat detection system
*  Image Grey Level: 65536
*  Image Max Resolution: 1024 * 1280 pixel
*  Image Processing: 24bit for processing real time
*  Image storage: Storage 100,000 pictures in real time
*  Zoom: 64 Times Enlarge, Whole screen continuous observation

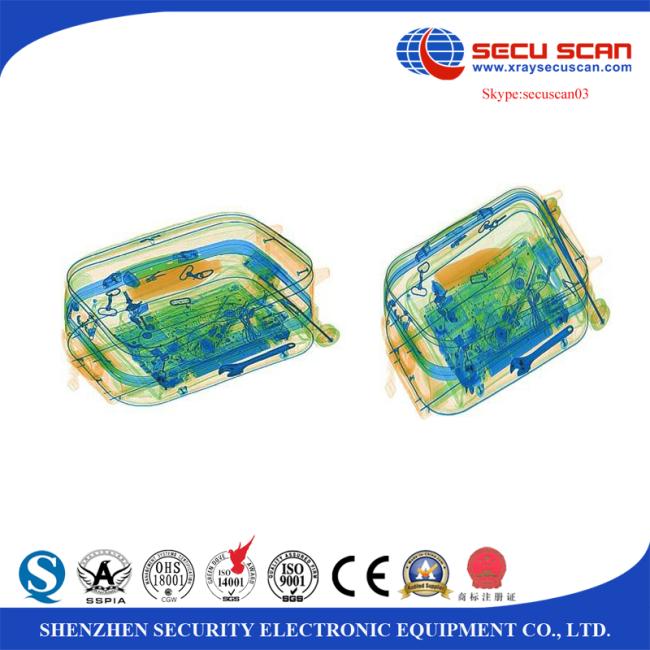

*  Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green
*  Automatic explosive detection system, by means of high performance parallel computing
