Cargo X Ray Luggage Scanner / Baggage Scanners At An Airport
Cargo X Ray Luggage Scanner / Baggage Scanners At An Airport
General Specification :
| Tunnel Size: | 1000(W)*800(H)mm |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 200kg |
| Wire Resolution: | 40AWG |
| Spatial resolution: | horizontal:1.3 or 1.0mm, vertical: 1.3 or 1.0mm |
| Penetration: | 38mm Steel |
| Film Safety: | Guarantee ISO1600 Film |
| X-ray Leakage: | <1 μSv/h (at a distance of 5cm from external housing) |
| Pass rate: | 720 bags per hour |
Installation Data :
|
Operation temperature/Humidity: |
0℃-45℃/20%-95%(non-condensing) |
| Storage Temperature/Humidity: | -20℃-60℃/20%-95%(non-condensing) |
| Operation Power: | 187~240VAC, 50/60Hz |
| Power Consumption: | 0.9KW(working) |
| Noise: | <58db |
X-ray Generator :
| Beam direction: Diagonal | Diagonal |
|
Generate angle: |
80 degree |
| Anode Voltage: | 160Kv |
| Anode power: | 0.6 to 1.0mA |
| Cooling / Duty Cycle: | Oil Cooling /100% |
Image System :
| X-ray Sensor: | L-Shaped Photodiode Array (multi-energetic) , 12bit Deep |
| Monitor: | High Resolution Color, LCD Accord, 17 inch |
| Image Processing: | Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning,image retrieval. |
| Image Grey Level: | 4096 |
| Image Processing: | 24bit for processing real time |
| Image storage: | Storage 100,000 pictures in real time |
| Zoom: | max 64 Times Enlarge, Whole screen continuous observation |

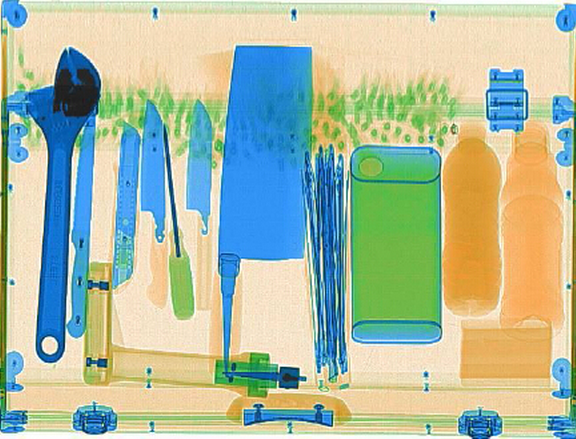

Assist of detecting organic and inorganic items such as weapons, explosives and narcotics using different colour show :
Our Services
- Free training in our factory
- Technic support by telepone or video
- Accept arrange engineer to your country with additonal cost
- After-sales service online 18/24 hours
- Remote control the machine for maintenance diagnosing
- Free spare parts supply during the warranty
- Exclusive agent protection and special support for market
- OEM and ODM service accept
" Meet the developing demands of customers " is the direction of the company's sustainable development. Company has provided high quality, efficient and personalized product and service for more than 1,000 agents around 30 countries of the world , which covers a variety of major events venue , airports, stations, terminals, entertainment venues, public security system, important function government departments, large factories, examination room, shopping malls and other fields like people access security check , contraband inspection. The current brand SECU SCAN have been in the industry with a wide range of visibility and reputation.
