Airport Xray Baggage Scanner SPX6550 30mm To 40mm Steel Penetration
Airport Xray Baggage Scanner SPX6550 30mm To 40mm Steel Penetration
General Specification
● Tunnel Size: 650(W)*500(H)mm
● Conveyor Speed: 0.22m/s
● Conveyor Max Load: 170kg
● Dose per Inspection <1.4Gy/h
● Resolution 34AWG to 40AWG
| Spatial resolution Level | dia1.0mm, Vertical: dia1.0m |
| Penetrate resolution | 24WG to 34AWG |
| Penetration | 30mm to 40mm Steel |
| Film Safety | Guarantee ISO1600 Film |
| X-ray Leakage | <0.1 μGy/h (at a distance of 5cm From external housing) |
X-ray Generator
● Generate direct: Upward
● Generate anger: 80 degree
● Anode Voltage: 100~160Kv
● Anode power: 0.4 to 1.2mA
● Cooling / Duty Cycle: Oil Cooling /100%
Image System
● X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
● Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
● Zoom: 2,4,8,16 Times Enlarge, Whole screen continuous observation
● Assist to detect drug and explosive powder
| Image Grey Level | 4096 |
| Image Max Resolution | 1024 * 1280 pixel |
| Image Processing | 24bit for processing real time |
| Image storage | Storage 60000 pictures in real time |
| Multi-energetic distinguish objects | organic objects in orange, inorganic objects in blue, mixture in green |
| High-energy/low energy | switch from high energy to low energy |
| Monitor | High Resolution Color, LCD Accord, 17 inch |
Installation Data
● Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
● Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
● Operation Power: 220VAC(±10%)50±3Hz
● Power Consumption: 1.0 KW (max), 0.7KW(working)
● Noise: <58db

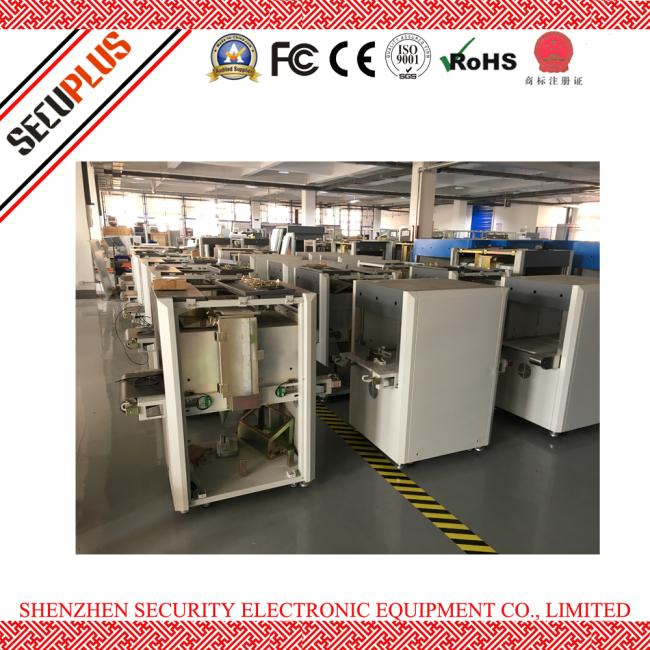

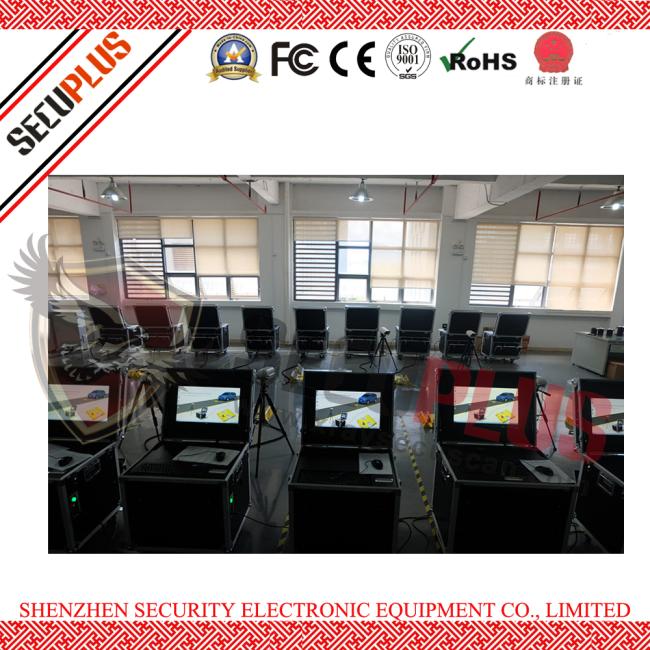

Our Work Shop
Our service
- All products purchased in our company are guaranteed to keep in good repair for one year.
- If quality problems happen in guarantee period, our company will maintain for free.
- Additionally, our company provides technical support and fittings for life.
- After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
- If you are caught in some problems when using our products, welcome to contact us at any time.
