OEM X Ray Baggage Scanner For Hotel / Office Security Check , 38-40AWG Resolution
X-Ray Baggage Scanner 5030 X-ray Parcel Inspection system for Hotel/Office security check
Specifications:
| Tunnel Size | 500(W)*300(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 100kg |
| Dose per Inspection | <2.9 μGy/h |
| Resolution | <0.101mm Metal Wire |
| Penetration | 3Steel |
| Film Safety | Guarantee ISO1600 Film |
| X-ray Leakage | <0.05 μGy/h (at a distance of 5cm From external housing) |
| Generate direct | Upward |
| Generate angle | 80 degree |
| Anode Voltage | 140Kv |
| Anode power | 0.4 to 0.5mA |
| Cooling / Duty Cycle | Oil Cooling /100% |
| X-ray Sensor | L-Shaped Photodiode Array (monoenergetic) , 12bit Deep |
| Monitor | High Resolution Color, LCD Accord, 17 inch |
| Image Processing | Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval. |
| Image Grey Level | 4096 |
| Image Max Resolution | 1024 × 1280 pixel |
| Image Processing | 24bit for processing real time |
| Image storage | Storage 100000 pictures in real time |
| Zones & Zoom | 1-9 Image regions, 64Times Enlarge, Whole screen continuous observation |
| Operation temperature/Humidity | 0°C-45°C/20%-95%(non-condensing) |
| Storage Temperature/Humidity | -20°C-60°C/20%-95%(non-condensing) |
| Operation Power | 220VAC(±10%)50±3Hz |
| Power Consumption | 1.0 KW (max), 0.3KW(working) |
| Noise | <65db |

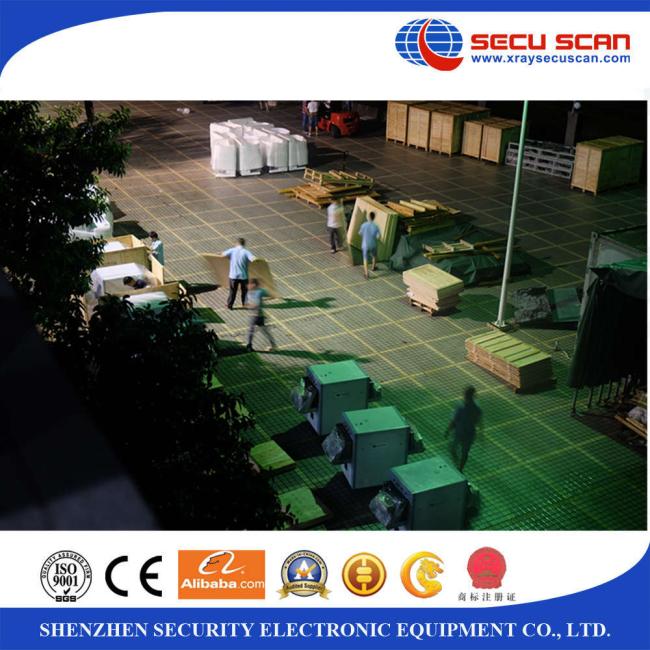

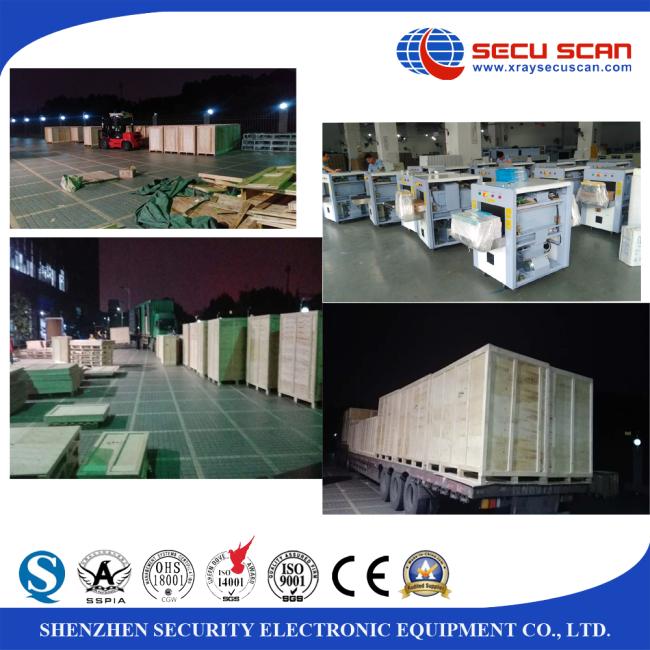

Packing and Shipping:
- Wooden case packaging with size:
- Scanner: 178(L)*86(W)*142(H)cm
- Gross weight: 450KG
- Shipping by sea or air or express for your optional
SECU SCAN Service:
- Factory training free of cost for buyers.
- Engineer give online service from Chinese time: 8:30am to 21:30pm (Monday to Saturday)
- Our sales group also give service by e-mail in words or photos or vedio.
- We can send engineer to give local service for serious problem.
- One year free spare parts replacement. Life time technical support.
Company culture: Quality First and Service Foremost

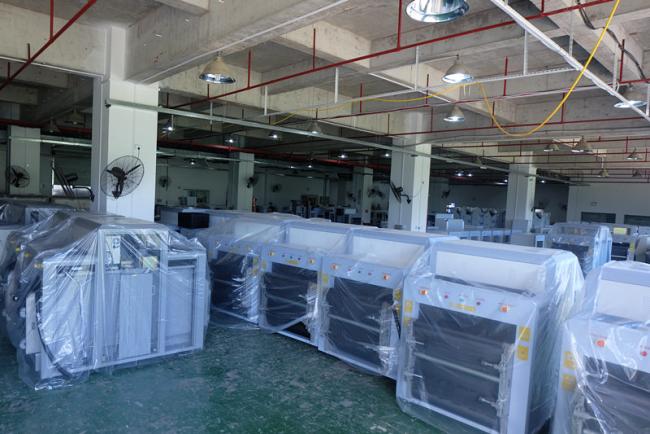

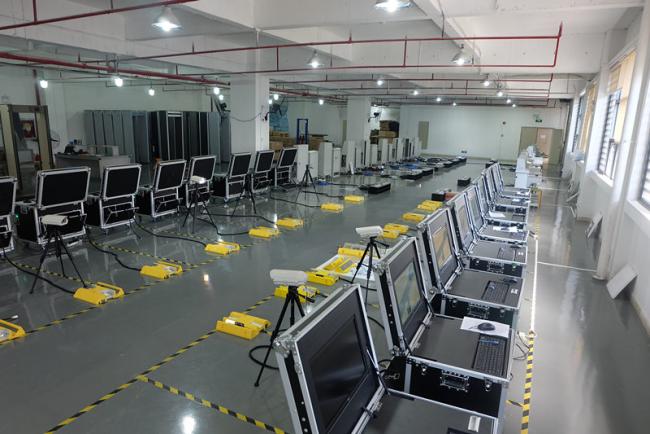

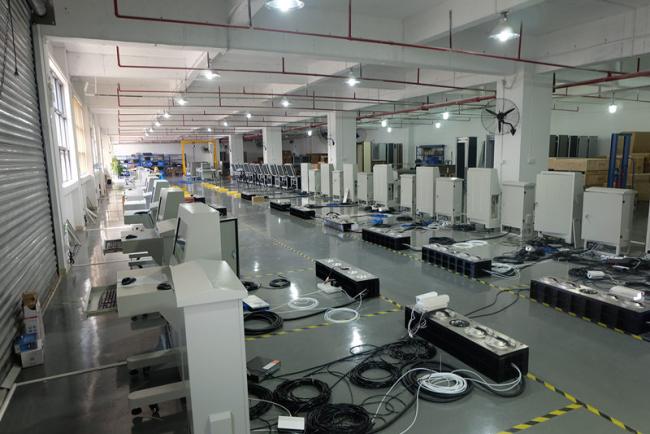

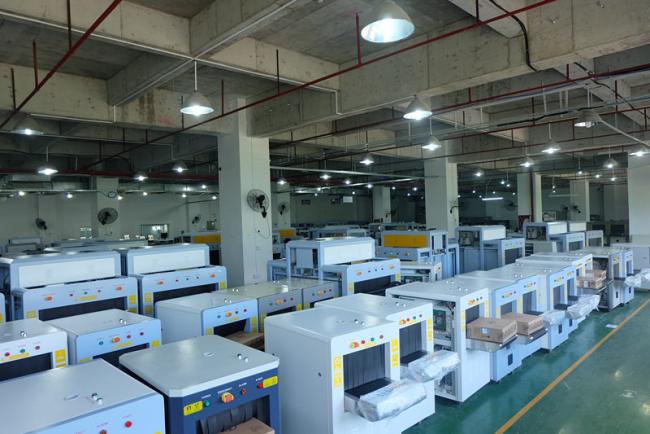

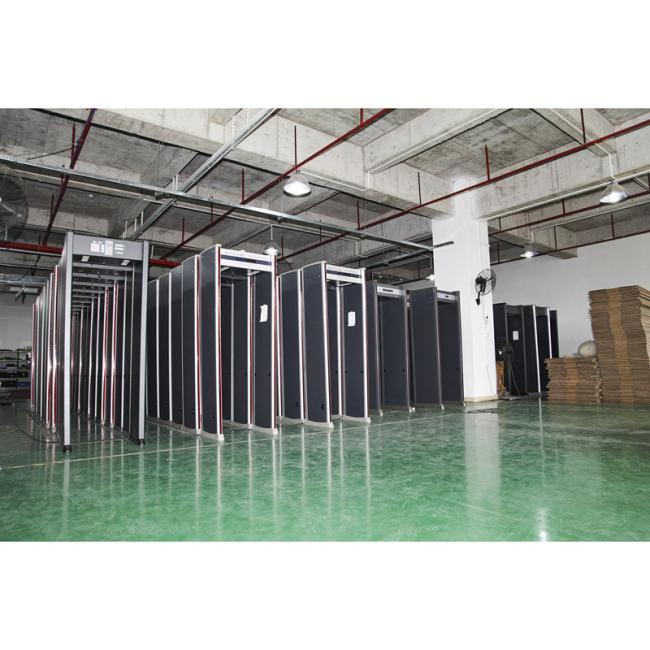

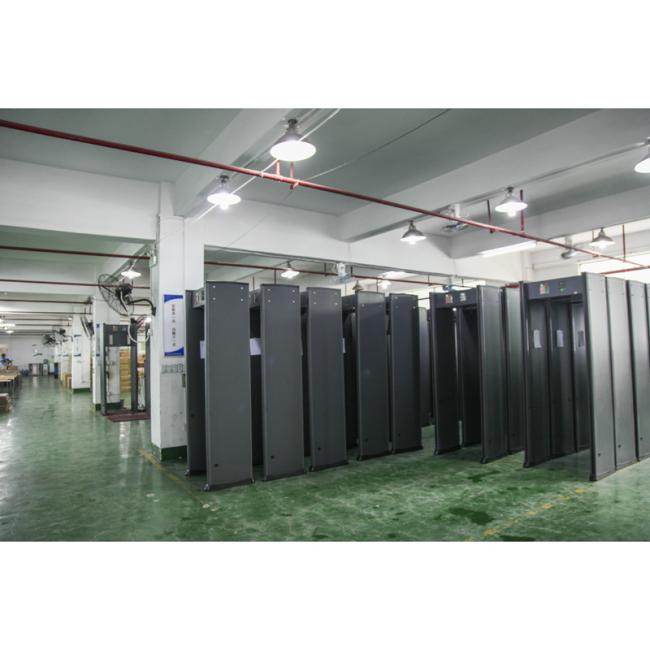

Our Factory
SEE(Security Electronic Equipment Co., Limited), is a high-tech company integrating R&D, manufacturing, engineering,training and services. We run SECU SCAN as the top brand. As a reliable supplier, we continue produce good quality products, give professional technical support.
SEE gradually establishes a very comprehensive product range covering X-ray machines with different tunnel size, Walk through Metal Detector, Hand-held Metal Detector, Dangerous Liquid Scanner, Explosive Trace Detector, Under Vehicle System and etc.
SEE security systems have been used in different countries and regions in airports, seaports, customs, railway stations, long-distance bus stations, jail houses, courts yard, and many other security-related applications.
With ISO9001 management system, SEE always keeps running with high efficiency by balancing development on her product R&D, manufacturing, quality control and service according to ISO strict international standard requirements.
With global marketing strategy, SEE provides innovative and dependable security solutions to our global customers and makes every effort to continually exceed our customers' expectations.
Life is precious SEE puts its efforts on public security solutio
Our Service
Operation training program for end users
Free of factory training for engineer from agents or end user
One year free of spare parts
Life time technical support
