CE ROHS FCC approval Luggage X Ray Machines SPX10080 X-ray Baggage Scanner

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: Within 7 working days

Brand: SECUPLUS

Product Description

CE ROHS FCC approval Luggage X Ray Machines SPX10080 X-ray Baggage Scanner

General Specification :

X ray Dose per inspection	<1.5μSv
Wire Resolution	38AWG Guarantee 40 AWG typical
Penetration	28-32 mm
Tunnel Size	1000mm×800mm
Conveyor Speed	0.22m/s
Conveyor height	338.5mm
Conveyor Max Load	200kg
Penetration Resolution	30AWG guarantee, 32AWG typical
Film Safety	Guarantee ASA/ISO1600 Film
X-ray Leakage	<0.5 μSv/h (at a distance of 5cm From external housing)

Image System :

Image Display	high resolution of 1024 * 1280 pixel
Image Grey Level	65536
Threat Image Projection	Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Technical Principle	Dual-energy X-ray Imaging
X-ray Sensor	L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor	High Resolution Color, LCD Accord, 17inch
Image Enhancement	1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc
Image Recall	All preceding images recallable, retrieval
Explosives & Narcotics Detection	Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm	mpenetrable region alarm and highlight, for possible concealing of threats and contrabands
Network Applications	Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc
Images process	24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536

X-ray Generator:

Anode Voltage	140kv
Anode power	0.2-1.2mA
Cooling / Duty Cycle	Oil Cooling /100%

Other Characters:

Detect PCB board---------- UK brand Sensortech
Extension Rollers---------- customize size length
Support card reader operator access
CD DVR/RW unit---------- Optional
Computer system---------- XP system
Monitor---------- 17 inch DELL two monitors

Our Service:

Free of factory training for engineer from agents or end user
One year free of spare parts
Life time technical support

Company profile:

A good supplier will save you money and be free from trouble.

Quality means a lot for a security products wholesaler like you.

To be safe from customer complaints, you may need a very reliable supplier to count on.

SECUPLUS has already 13 years professional experience in

X ray Baggage Scanner

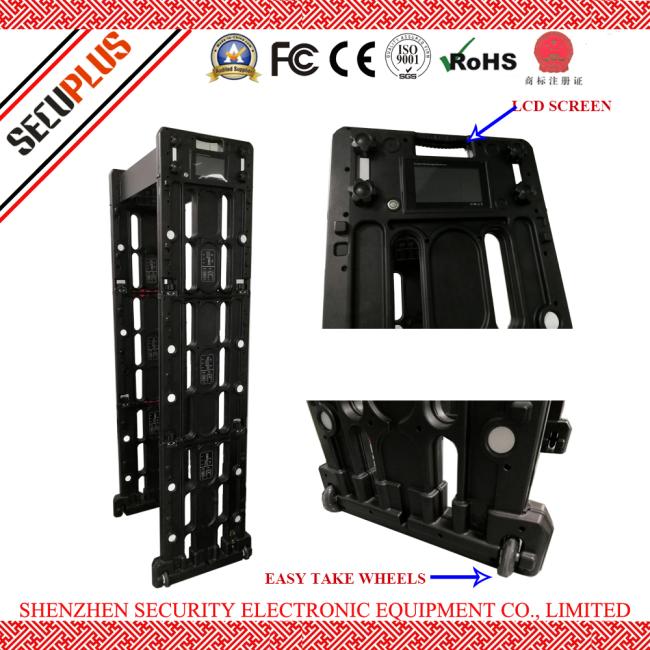

Walk Through Metal Detector
