Airport Baggage X Ray Machine 600 * 400 Mm Tunnel Size With 12 Months Warranty
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
5-8 working days
Brand:
SECUPLUS
Product Description
Airport X ray Security Scanner with CE FCC ROHS in huge stocks with high performance
|
SPECIFICATIONS
|
|||
|
Physical
Specification
|
Unit weight (kgs)
|
512
|
|
|
Unit size (mm)
|
2194.7(L)*902(W)*1362.5(H)
|
||
|
Gross weight (kgs)
|
700
|
||
|
General Specification
|
Penetration
|
Typical 38mm, guarantee 34mm
|
|
|
X ray leakage
|
Typical 1.0 μGy/h, guarantee 1.5 μGy/h
|
||
|
Wire Resolution
|
Typical AWG40, guarantee AWG38
|
||
|
X-ray Generator (single)
|
Anode Voltage
|
160 KV
|
|
|
Anode power
|
0.5mA
|
||
|
Generate angle
|
80 degree upward
|
||
|
General Specifications
|
|||
|
Tunnel size(mm)
|
600(L)*400(W)
|
||
|
Conveyor Speed(m/s)
|
0.22
|
||
|
Conveyor height(mm)
|
690
|
||
|
Conveyor Max Load(kgs)
|
170
|
||
|
X ray dose per each inspection
|
1.5 μGy
|
||
|
X ray leakage
|
<0.25 μGy / h
|
||
|
Penetration
|
38mm steel
|
||
|
Wire Resolution
|
dia 0.0787mm copper wire (AWG40)
|
||
|
Penetration Resolution
|
dia 0.202mm copper wire (AWG32) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
|
||
|
Spatial resolution:
|
Horizontal:dia1.0mm,Vertical: dia1.0mm
|
||
|
Power Consumption
|
max. 1KW
|
||
Main Features:
Multilingual operation
Automatic built in test and self diagnosis
Secure access Key
Uninterruptable power supply (UPS)
Threat alert and material classification
Auto archiving
Network-Ready
Energy saving design
One key turn off
Drugs and explosives inspection
Indication of the date and time
Baggage counter
Automatic built in test and self diagnosis
Secure access Key
Uninterruptable power supply (UPS)
Threat alert and material classification
Auto archiving
Network-Ready
Energy saving design
One key turn off
Drugs and explosives inspection
Indication of the date and time
Baggage counter

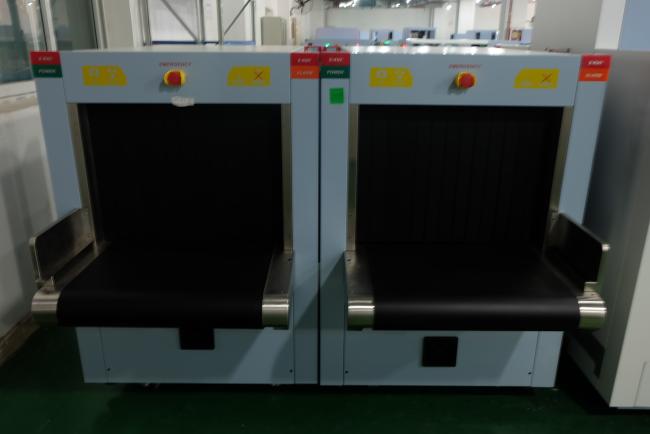

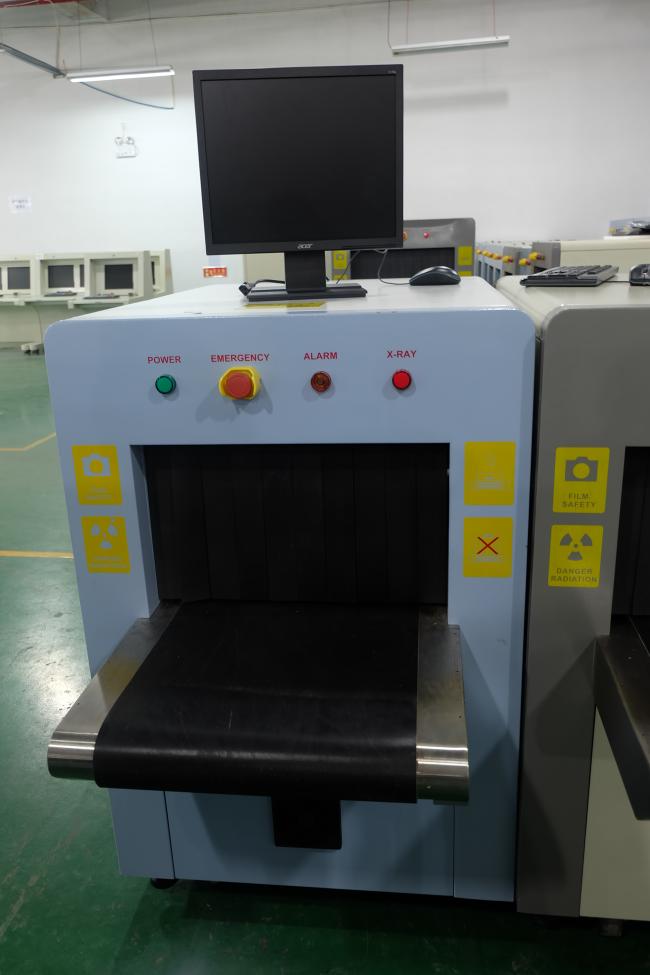

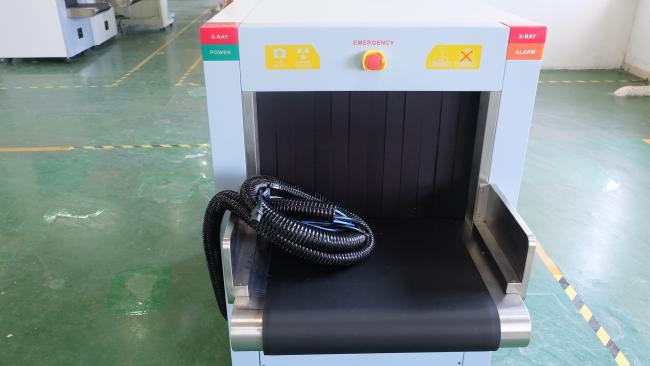

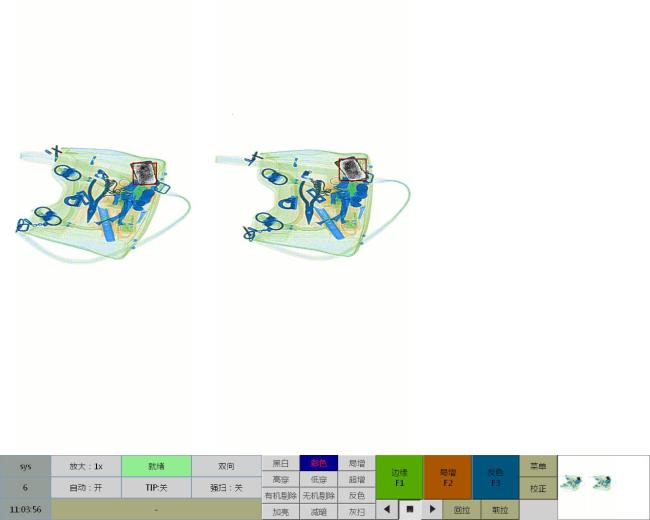

Details Images:
Related products
- Arched Metal Detector: Single/6/8/12/16/18/24/33/45 zones optional
- Under Vehicle Inspection Equipment: Fixed, Mobile, Hand-Held
- Explosive and Trace Detector: Fixed, Hand-Held
- Dangerous Liquid Scanner: Fixed, Hand-held
- X-ray Vehicle Scanner
- Hand Held Metal Detector
Company Workshop
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
FAQ
Q1: Are you a factory or trading company?
A: We are the biggest professional manufacturer of security equipment with almost 10 years experiences in Shenzhen china.
Q2: What is your MOQ?
A: Normally MOQ 1pcs and the price is negotiable for large quantity.
Q3: What is your leadtime?
A: 3-7 working days after received the payment.
Q4: How does your factory do regarding quality control?
A: We control every production process in accordance with ISO9001, ISO14001, ISO18001 and CE certification, Radiation safety certification, FCC, ROHS, CE.
Q5: What is your after-sale service?
A: 100% guarantee on our product; install instruction and video support; software debugging with remote control support; The whole unit 1 year free guarantee.
A: We are the biggest professional manufacturer of security equipment with almost 10 years experiences in Shenzhen china.
Q2: What is your MOQ?
A: Normally MOQ 1pcs and the price is negotiable for large quantity.
Q3: What is your leadtime?
A: 3-7 working days after received the payment.
Q4: How does your factory do regarding quality control?
A: We control every production process in accordance with ISO9001, ISO14001, ISO18001 and CE certification, Radiation safety certification, FCC, ROHS, CE.
Q5: What is your after-sale service?
A: 100% guarantee on our product; install instruction and video support; software debugging with remote control support; The whole unit 1 year free guarantee.
