160KV X Ray Baggage And Parcel Inspection Screening Equipment Tunnel Size 60*40cm
Price:
Negotiable
MOQ:
1 set
Delivery Time:
7 work days
Brand:
SECU PLUS
Product Description

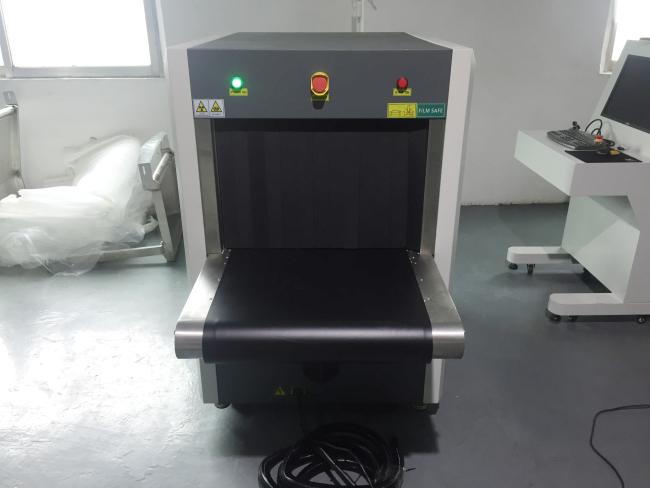

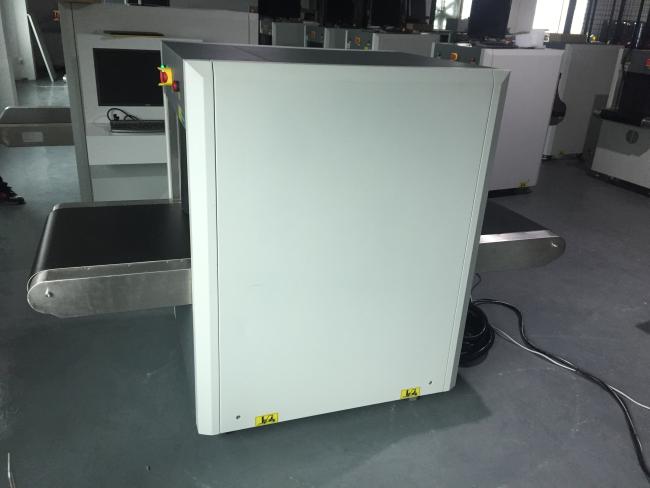

Tunnel Size 60 * 40cm X Ray Baggage And Parcel Inspection Screening Equipment
Model: SPX-6040
High Light
- Professional multi-function operation keyboard
- Windows 7 operation system
- With independent industrial computer
- 160kv multi energy scanner
- Friendly Image processing interface
- Wireless keyboard and mouse
Technical characteristics
- Integrated structure design, refinement appearance
- Clear and distinct image
- New radiation protection technology
- TIP program
- Scanned imaged can zoom up to 64 times
Baisc specification:
X Ray Generator:
| X Ray generator anode voltage | 160KV |
| Cooling/operation cycle | Oil Cooling /100% |
| X ray Dose per inspection | <0.16 μSv |
| Tunnel size | 600*400mm (w*h) |
| Conveyor speed | 0.20m/s |
| Conveyor height | 693mm |
| Max Load | 170kgs |
| Wire Resolution | 38AWG |
| Spatial resolution | vertical:diameter 1.0mm,horizontal:diameter 1.0mm |
| Penetration | 8mm steel panel |
X Ray Image:
| Image processing | Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image |
| Zoom | Variable zoom up to X64, support continuous magnification. |
| Image Checking | Continuous check back image |
| Storage capacity | Can store more than 100000 image |
| Dose per inspection | <0.125 μSv |
| Radiation leakage | <0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements. |
| Film safety | In accordance with ASA/ISO1600 film safe standard |
| System function | F programmable key,high density alarm,TIP；date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training. |
| Optional function | Video surveillance system, LED prompt screen, voltage stabilizer, UPS back up |
Installation environment:
| Frame size | 1199*728*1197mm (L*W*H) |
| Weight | 280kg |
| Environment temperature/humidity | - 3℃～+40℃±2℃ / 5%～95%(non-condensing) |
| Storage temperature/humidity | -43℃～+60℃±2℃ / 5%～95%(non-condensing) |
| Power | 220VAC (+/-10%) 50+/-3HZ |
| Consumption | 0.6KvA |
| Noise Level | <55db |
Application field
- Entertainment venues, tourist attractions, office buildings, shopping malls, factories, etc;
- suitable for security inspection of briefcase, hand luggage, postal parcels and other small package.
Our service:
- Operation training program for end users
- Free of factory training for engineer from agents to end user
- Provide on-site trainning when customer requires
- If quality problems happen in guarantee period, our company will maintain for free.
- One year free spare parts and life time technical support
- After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
- If you are caught in some problems when using our products, welcome to contact us at any time.
